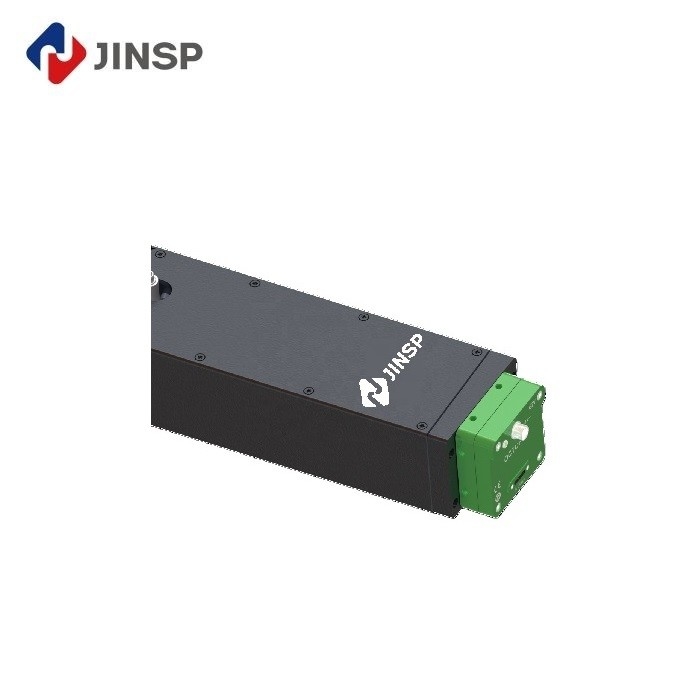

Linear Array CMOS OCT Imaging Spectrometer Optic Spectrometer 2048pixels

Contact Now

Linear Array CMOS OCT Imaging Spectrometer Optic Spectrometer 2048pixels

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Carton Packing	Delivery Time :	80-90 WORKING DAYS
Payment Terms :	T/T, Western Union	Supply Ability :	10PCS/MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST830E
Document:	Product Brochure PDF

Detail Information
Type:	CMOS	Effective Pixels:	2048pixels
Photosensitive Area:	20.52*0.2mm	Cell Size:	10*200um
Maximum Line Sweep Speed:	130kHz/250kHz	Wavelength Range:	Customized In The Range Of 790-930nm
Optical Resolution:	0.07nm	Imaging Depth:	2.4mm
Highlight:	OCT imaging spectrometer , linear array CMOS imaging spectrometer , 2048pixels optic spectrometer

Product Description

Linear Array CMOS OCT Imaging Spectrometer Optic Spectrometer 2048pixels

Product Specifications

Attribute	Value
Type	CMOS
Effective pixels	2048pixels
Photosensitive area	20.52*0.2mm
Cell size	10*200um
Maximum line sweep speed	130kHz/250kHz
Wavelength range	Customized in the range of 790-930nm
Optical resolution	0.07nm
Imaging depth	2.4mm

Product Overview

The JINSP ST830E/ST850E series spectrometer is specifically designed for OCT systems. As a critical component in spectral domain OCT (SD-OCT) systems, it significantly impacts key performance metrics including imaging speed and signal-to-noise ratio (SNR fall-off).

The ST830/850O series achieves wavenumber linear spatial dispersion through specialized optical path design, enabling equal interval sampling of wavenumber at the hardware level. This allows direct FFT processing of acquired interference spectra without requiring wavenumber resampling algorithms, simplifying data processing while enhancing system signal-to-noise ratio.

Technical Specifications

Detector	Line array CMOS
Effective pixels	2048
Cell size	10*200um
Photosensitive area	20.52*0.2mm
Wavelength range	Customized in the range of 790-930nm
Optical resolution	0.07nm
Optical design	VPH raster & wave ridge linear design
Maximum line sweep speed	130kHz/250kHz
Incident optical interface	FC/APC fibre optic interface

Technical Highlights

Special optical path design enables hardware-level equal interval sampling of wavenumber
Direct FFT processing of interference spectra without wavenumber resampling algorithm
High-efficiency VPH gratings with near-diffraction-limited optical resolution
Industry-leading line scan rate up to 250kHz
USB3.0 interface supports 20-130kHz scanning rate for efficient OEM integration
Customizable wavelength range and camera specifications
Stable, mature process requiring minimal calibration

Frequently Asked Questions

Q1: This is my first time using this product. Is it easy to operate?

A1: We provide comprehensive English manuals and instructional videos, along with professional technical support sessions from our engineers.

Q2: Do you offer operation training?

A2: We offer both on-site training at our facility and local support services including installation, training, debugging, and maintenance at your location.

Q3: How can I receive the best price quickly?

A3: Please provide detailed specifications (wavelength, detector type, effective pixels, focal length, etc.) when inquiring for a prompt, accurate quotation.

Q4: What if I encounter problems with the spectrometer?

A4: The product includes a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Q5: What payment methods do you accept?

A5: We accept T/T, PayPal, Western Union, L/C, and other standard payment methods.
