Customizable K-linear Optical Coherence Tomography OCT Spectrometer Module For OCT 3D Image System Integration

Contact Now

Customizable K-linear Optical Coherence Tomography OCT Spectrometer Module For OCT 3D Image System Integration

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	T/T, Western Union	Supply Ability :	5PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	ST830E
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	790-930nm	Weight:	1.5 Kg
Model Name:	Optical Coherence Tomography(OCT) Spectrometer	Chip Type:	Linear Array CMOS
Effective Pixels:	2048 Pixels	Sensing Area:	20.48*0.2mm
Highlight:	K-linear OCT Spectrometer Module , OCT 3D Image System Spectrometer Module , Customizable OCT Spectrometer Module

Product Description

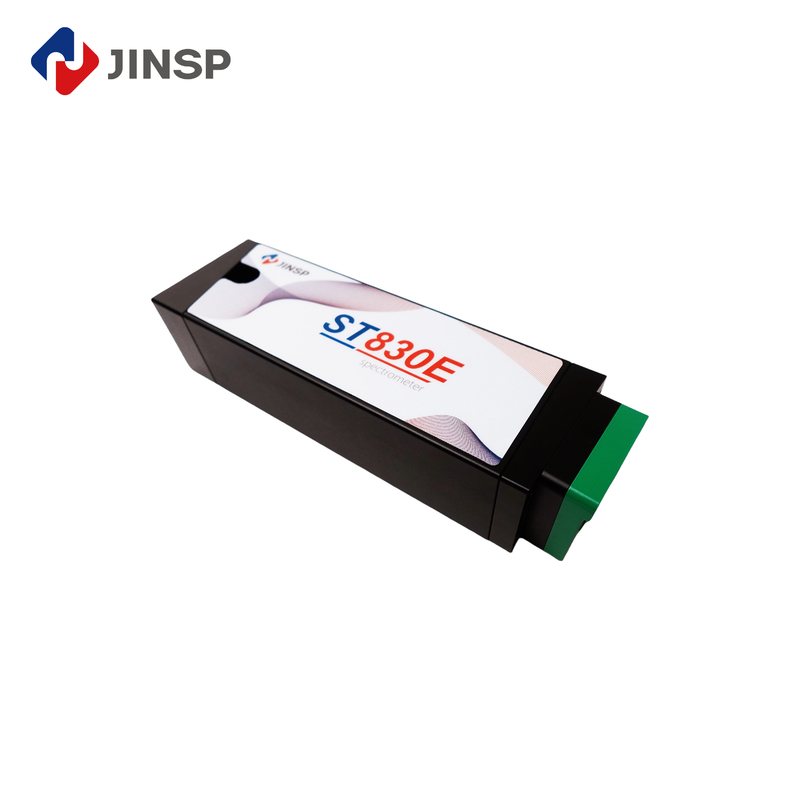

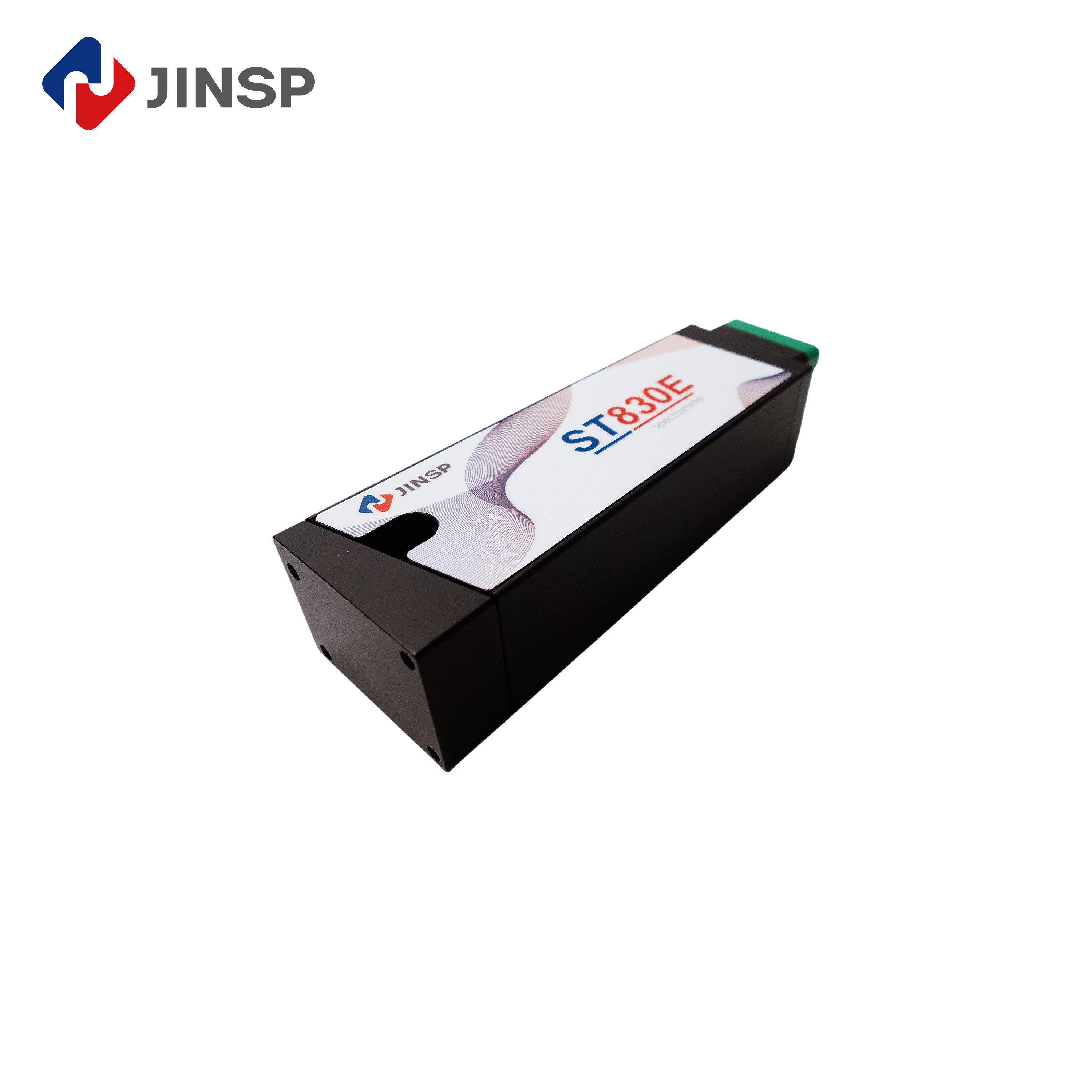

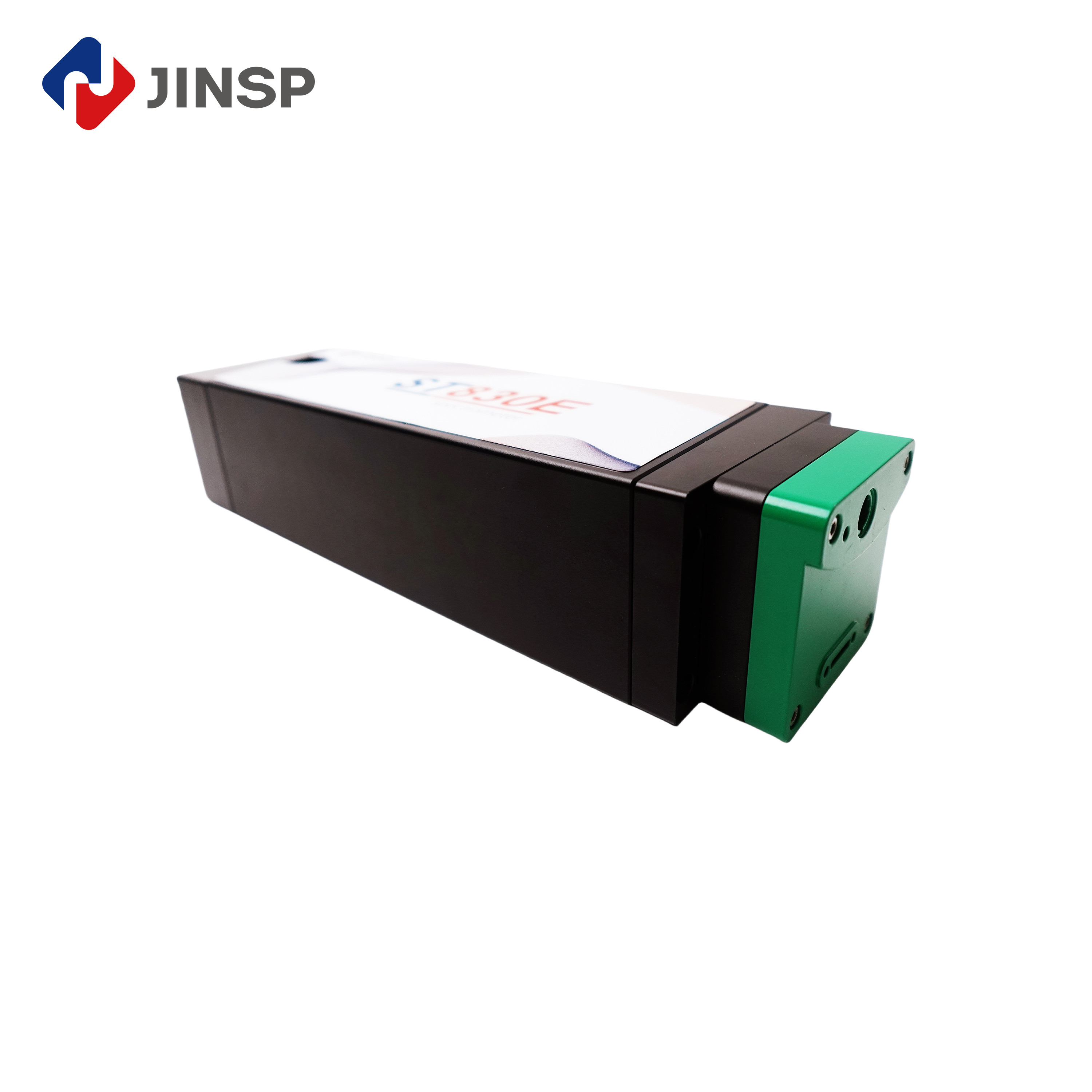

ST830E Optical Coherence Tomography (OCT) Spectrometer

The JINSP ST830E Spectrometer is a high-speed, stable commercial OCT spectrometer designed for high-resolution, high signal-to-noise ratio three-dimensional tomographic imaging and blood flow network imaging. Applications include corneal, crystalline lens, and retinal imaging, skin epidermis and dermal vascular network imaging, intracoronary endoscopy, as well as industrial testing such as laser welding and paint coating analysis.

Key Specifications

Chip Type	Linear array CMOS
Effective Pixel	2048 pixels
Pixel Size	10*200 μm
Sensing Area	20.48*0.2mm
Maximum Line Scanning Speed	130kHz (USB)/250kHz (Cameralink)
Optical Resolution	0.07nm (depending on wavelength range)
Wavelength Range	790-930nm (customizable)
Imaging Depth	2.4mm (depending on wavelength range)
Dimensions	2758060.5mm
Weight	1.5kg

Technical Characteristics

Deep Imaging: Excellent roll-off performance enables imaging at deeper layers.
Wavenumber Linearity: Special optical path design allows for equidistant wavenumber sampling, enabling direct FFT and reducing data processing complexity.
Fast Processing: USB3.0 interface supports scanning speeds of 20-130kHz for efficient OEM processes.
High Signal-to-Noise Ratio: Efficient VPH grating with optical resolution approaching the diffraction limit.
High Maturity: Stable process requiring minimal calibration.
Customizable: Wavelength range and camera can be tailored to requirements.

Typical Applications

Industrial OCT:

Laser oscillation inspection
Metal cutting and welding inspection
Flatness inspection of electronic display screens

Medical OCT:

Vascular imaging
Retina and anterior chamber eye imaging

Other OCT Applications:

Detection of uniformity in multilayer coatings
Real-time monitoring of crystal structure density

About JINSP Company Limited

JINSP has received the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate, China Patent Excellence Award, Geneva International Invention Award, Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.

As a professional leading solution provider in molecular spectroscopy, particularly in Raman Spectroscopy, our product range includes:

UV VIS NIR fiber optic spectrometers
Desktop/portable, online Raman analyzers for laboratory or industrial liquid & gas analysis
On-site rapid detectors/identifiers based on Raman technology for various applications

Frequently Asked Questions

Q1: Is this spectrometer easy to operate for first-time users?

A1: We provide an English manual and instructional video, along with professional technical operation meetings with our technicians.

Q2: Do you offer operation training?

A2: Your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.

Q3: How can I receive the best price quickly?

A3: Please provide detailed requirements including wavelength, detector type, effective pixels, and focal length. We will promptly send a detailed quotation to your email.

Q4: What is your website?

A4: Visit us at www.jinsptech.com

Q5: What is your quality assurance process?

A5: Our quality inspection team thoroughly checks all goods before shipment, and we can provide inspection photos upon request.
