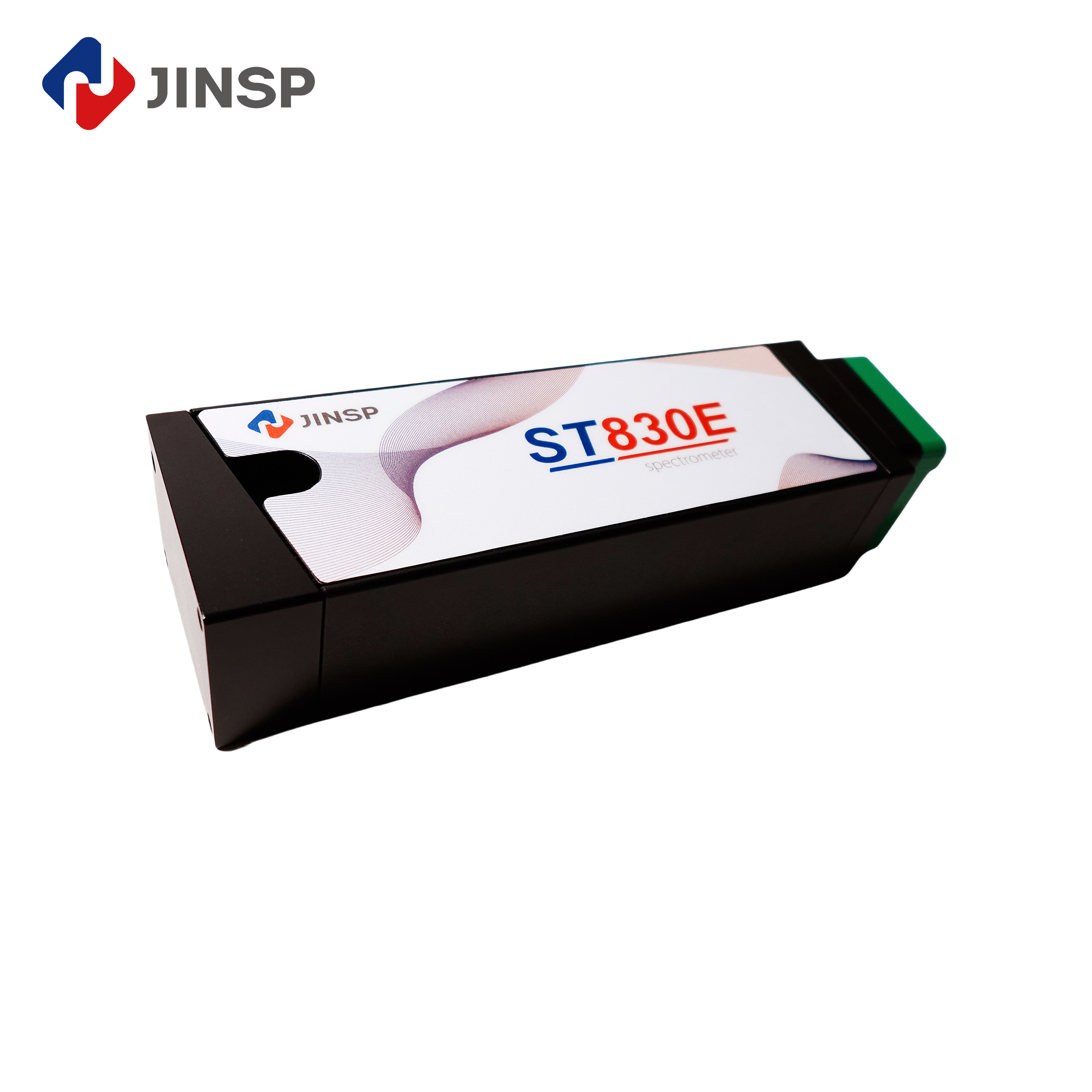

130kHz/250kHz High Sensitivity Spectrometer For Spectral Domain OCT System

Contact Now

130kHz/250kHz High Sensitivity Spectrometer For Spectral Domain OCT System

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Carton Packing	Delivery Time :	80-90 WORKING DAYS
Payment Terms :	T/T, Western Union	Supply Ability :	10PCS/MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST830E
Document:	Product Brochure PDF

Detail Information
Photosensitive Area:	20.52*0.2mm	Cell Size:	10*200um
Maximum Line Sweep Speed:	130kHz/250kHz	Wavelength Range:	Customized In The Range Of 790-930nm
Optical Resolution:	0.07nm	Imaging Depth:	2.4mm
Wavelength Repeatability:	+/- 0.01 Nm	Weight:	1.5 Kg
Highlight:	250kHz High Sensitivity Spectrometer , 130kHz High Sensitivity Spectrometer , 130kHz spectrometer device

Product Description

130kHz/250kHz High Sensitivity Spectrometer For Spectral Domain OCT System

Product Specifications

Attribute	Value
Photosensitive area	20.52*0.2mm
Cell size	10*200um
Maximum line sweep speed	130kHz/250kHz
Wavelength range	Customized in the range of 790-930nm
Optical resolution	0.07nm
Imaging depth	2.4mm
Wavelength Repeatability	+/- 0.01 nm
Weight	1.5 kg

Product Overview

The JINSP ST830E series spectrometer is a high-sensitivity optical component specifically designed for Spectral Domain OCT (SD-OCT) systems. This critical device directly impacts key performance metrics including imaging speed and signal-to-noise ratio (SNR fall-off).

The ST830E series achieves wavenumber linear spatial dispersion through specialized optical path design, enabling equal interval sampling of wavenumber at the hardware level. This innovation eliminates the need for wavenumber resampling algorithms, simplifying data processing while enhancing system SNR.

Technical Details

Detector	Line array CMOS
Effective pixels	2048
Cell size	10*200um
Photosensitive area	20.52*0.2mm
Wavelength range	Customized in the range of 790-930nm
Optical resolution	0.07nm
Optical design	VPH raster & wave ridge linear design
Maximum line sweep speed	130kHz/250kHz
Incident optical interface	FC/APC fibre optic interface

Key Features

High-performance OCT spectrometer for medical imaging applications
Maximum line sweep speed of 130kHz/250kHz
Exceptional optical resolution of 0.07nm
Advanced VPH raster & wave ridge linear optical design
FC/APC fiber optic interface for reliable connections
USB3.0 interface supporting 20-130kHz scanning rate
Optimized for high SNR fall-off performance

Package Contents

1 OCT Spectrometer device
1 power cord
1 USB cable
1 user manual
1 carrying case

Frequently Asked Questions

What is JINSP ST830E OCT Spectrometer?

JINSP ST830E is a high-performance and reliable optical coherence tomography (OCT) spectrometer used for medical imaging applications.

Where is JINSP ST830E OCT spectrometer manufactured?

JINSP ST830E OCT spectrometer is manufactured in China.

What is the minimum order quantity for JINSP ST830E OCT spectrometer?

The minimum order quantity for JINSP ST830E OCT spectrometer is 1.

What are the payment terms for purchasing JINSP ST830E OCT spectrometer?

The payment terms for purchasing JINSP ST830E OCT spectrometer are T/T and Western Union.

What is the delivery time for JINSP ST830E OCT spectrometer?

Please contact our sales team for current delivery time estimates.
