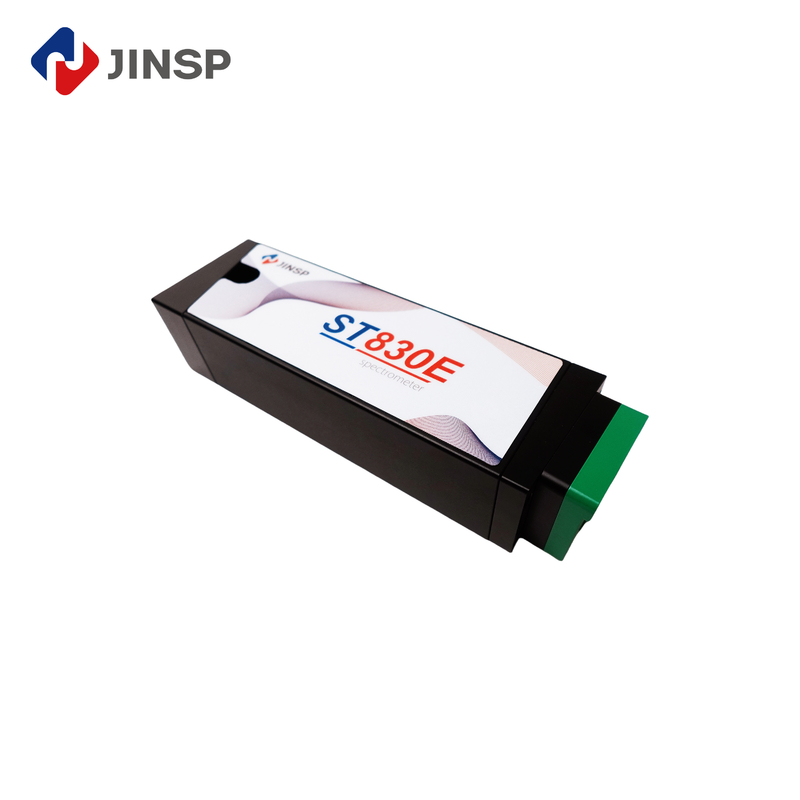

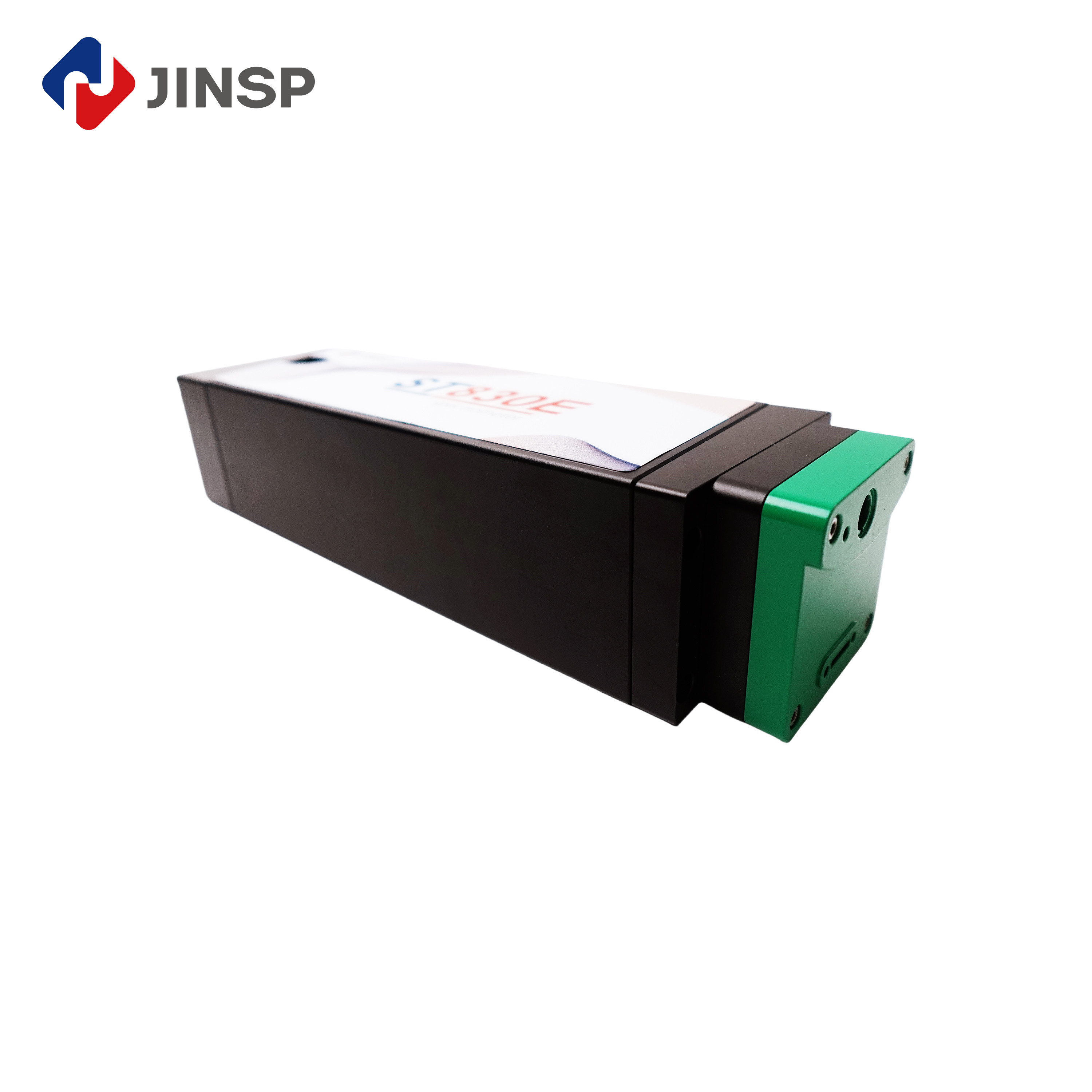

Product Description
ST830E series spectrum realizes wavenumber linear spatial dispersion through special optical path design and directly realizes equal interval sampling of wavenumber on hardware. The acquired interference spectrum can be directly subjected to FFT without a wavenumber resampling algorithm, which greatly reduces the complexity of data processing and improves the signal-to-noise ratio of the system.
| Detector |
Line array CMOS |
| Effective pixels |
2048 |
| Cell size |
10*200um |
| Photosensitive area |
20.52*0.2mm |
| Wavelength range |
Customized in the range of 790-930nm |
| Optical resolution |
0.07nm |
| Optical design |
VPH raster & wave ridge linear design |
| Maximum line sweep speed |
130kHz/250kHz |
| Incident optical interface |
FC/APC fibre optic interface |
TECHNICAL HIGHLIGHTS
1.Special optical path design,hardware can realize equal interval sampling of wave number.
2.The interference spectrum can be directly FFT without wavenumber resampling algorithm, which greatly reduces
the complexity of data processing and improves the signal-to-noise ratio of the system.
3.High-efficiency VPH gratings with near-diffraction-limited optical resolution.
4.Industry-leading line scan rate: up to 250kHz.
Applications:
The OCT spectrometer is a vital component of optical coherence tomography (OCT), which is a non-invasive imaging technology used to visualize internal structures in biological tissues. The ST830E model has a line scan rate of up to 250kHz and a cell size of 10*200um, making it suitable for high-speed and high-resolution imaging. The product uses a direct FFT without wavenumber resampling algorithm for interference spectrum processing, resulting in high-quality images.
The VPH gratings of the OCT spectrometer are high-efficiency with near-diffraction-limited optical resolution. These gratings make the spectrometer suitable for various applications that require high-speed and high-quality imaging, such as ophthalmology, dermatology, and cardiology. The product is not certified, but it meets all quality standards set by the manufacturer.
FAQ:
Q1: What is the brand name of the OCT Spectrometer?
A1: The brand name of the OCT Spectrometer is JINSP.
Q2: What is the model number of the OCT Spectrometer?
A2: The model number of the OCT Spectrometer is ST830E.
Q3: Where is the OCT Spectrometer manufactured?
A3: The OCT Spectrometer is manufactured in China.
Q4: What are the payment terms for purchasing the OCT Spectrometer?
A4: The payment terms for purchasing the OCT Spectrometer are T/T and Western Union.
