790nm-930nm OCT Spectrometer 130kHz/250kHz With Optical Resolution

Contact Now

790nm-930nm OCT Spectrometer 130kHz/250kHz With Optical Resolution

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Carton Packing	Delivery Time :	80-90 WORKING DAYS
Payment Terms :	T/T, Western Union	Supply Ability :	10PCS/MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	ST830E
Document:	Product Brochure PDF

Detail Information
Special Optical Path Design:	Hardware Can Realize Equal Interval Sampling Of Wave Number	Product Name:	High-speed And High-sensitivity OCT Spectrometers For Spectral Domain OCT System
Photosensitive Area:	20.52*0.2mm	Wavelength Range:	790nm-930nm
Product Category:	OCT Spectrometers	Interference Spectrum Processing:	Direct FFT Without Wavenumber Resampling Algorithm
Detector:	Line Array CMOS	VPH Gratings:	High-efficiency With Near-diffraction-limited Optical Resolution
Highlight:	OCT Spectrometer 130kHz , 930nm OCT Spectrometer

Product Description

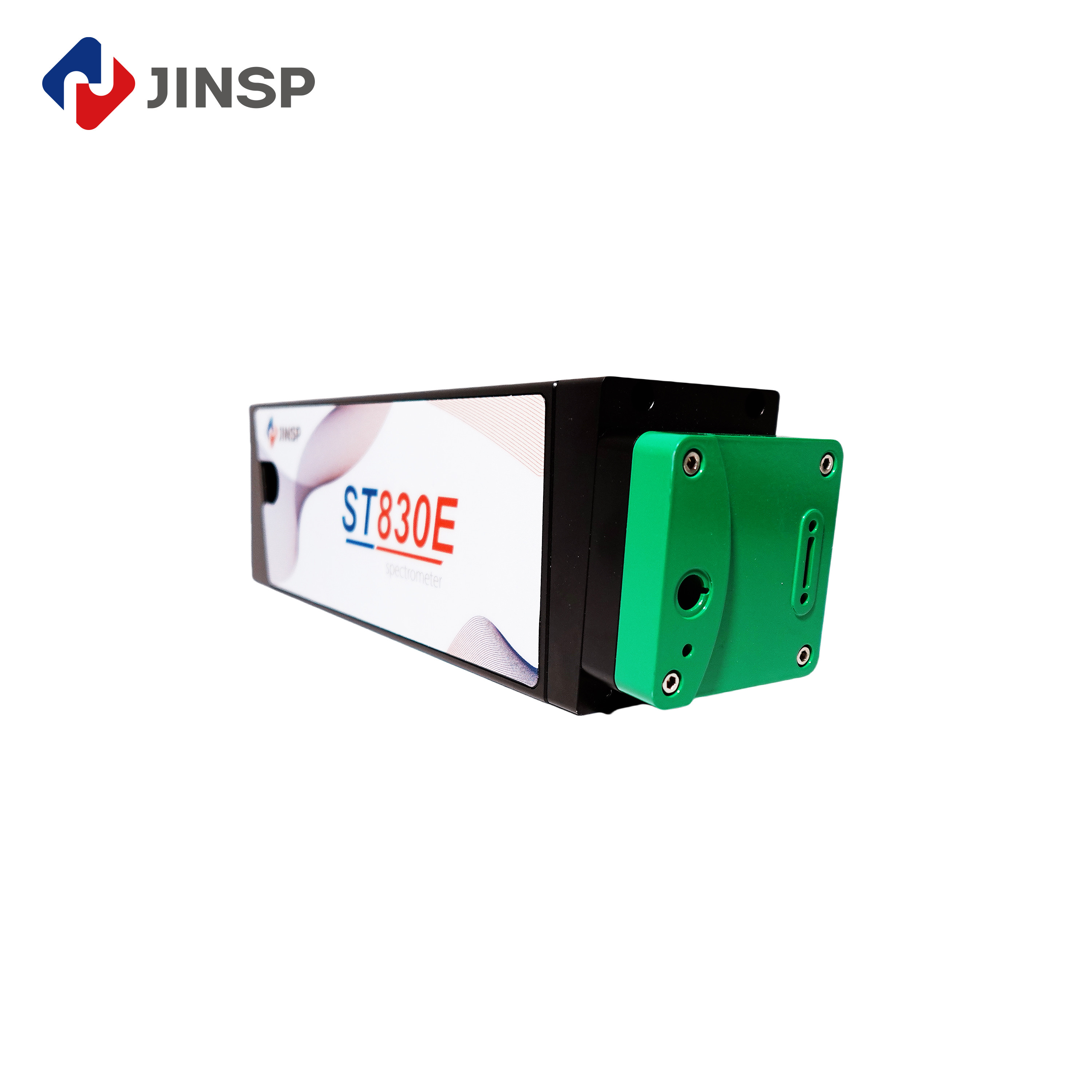

790nm-930nm OCT Spectrometer 130kHz/250kHz With Optical Resolution

Product Overview

Our high-speed OCT spectrometers feature line array CMOS detectors with 20.52×0.2mm photosensitive areas, delivering exceptional spectral resolution and sensitivity for precise optical measurements in scientific and medical applications.

Key Features

VPH gratings with near-diffraction-limited optical resolution
Hardware-enabled equal interval wave number sampling
High signal-to-noise ratio (SNR) performance
Customizable wavelength range (790-930nm)
Direct FFT processing without wavenumber resampling

Technical Specifications

Parameter	Specification
Optical Design	VPH raster & wave ridge linear design
Optical Resolution	0.07nm
Line Scan Rate	Up to 250kHz
Photosensitive Area	20.52×0.2mm
Detector Type	Line array CMOS (2048 effective pixels)
Interface	FC/APC fiber optic
Cell Size	10×200μm

Product Images

Applications

Medical Research & Diagnosis

Ideal for ophthalmology (retinal disease diagnosis), dermatology (skin lesion evaluation), and cardiology (blood vessel examination) with high-resolution imaging for structural analysis and disease monitoring.

Material Analysis

Precisely measures thin film thickness, identifies semiconductor defects, and analyzes material composition with 250kHz scan rate capability.

Food Industry

Detects contaminants and analyzes food composition with exceptional accuracy for quality control and safety assurance.

Support & Services

Comprehensive technical support including installation assistance, troubleshooting, maintenance, calibration services, and user training to ensure optimal spectrometer performance.

Packaging & Shipping

Includes: 1 spectrometer unit, power adapter, USB cable, user manual. Ships in protective foam padding within 80-90 business days. International shipping available.

Frequently Asked Questions

Brand and model information?

JINSP ST830E OCT Spectrometer

Manufacturing origin?

Manufactured in China

Order and payment details?

Minimum order: 1 unit. Payment: T/T or Western Union. Supply: 10 units/month
