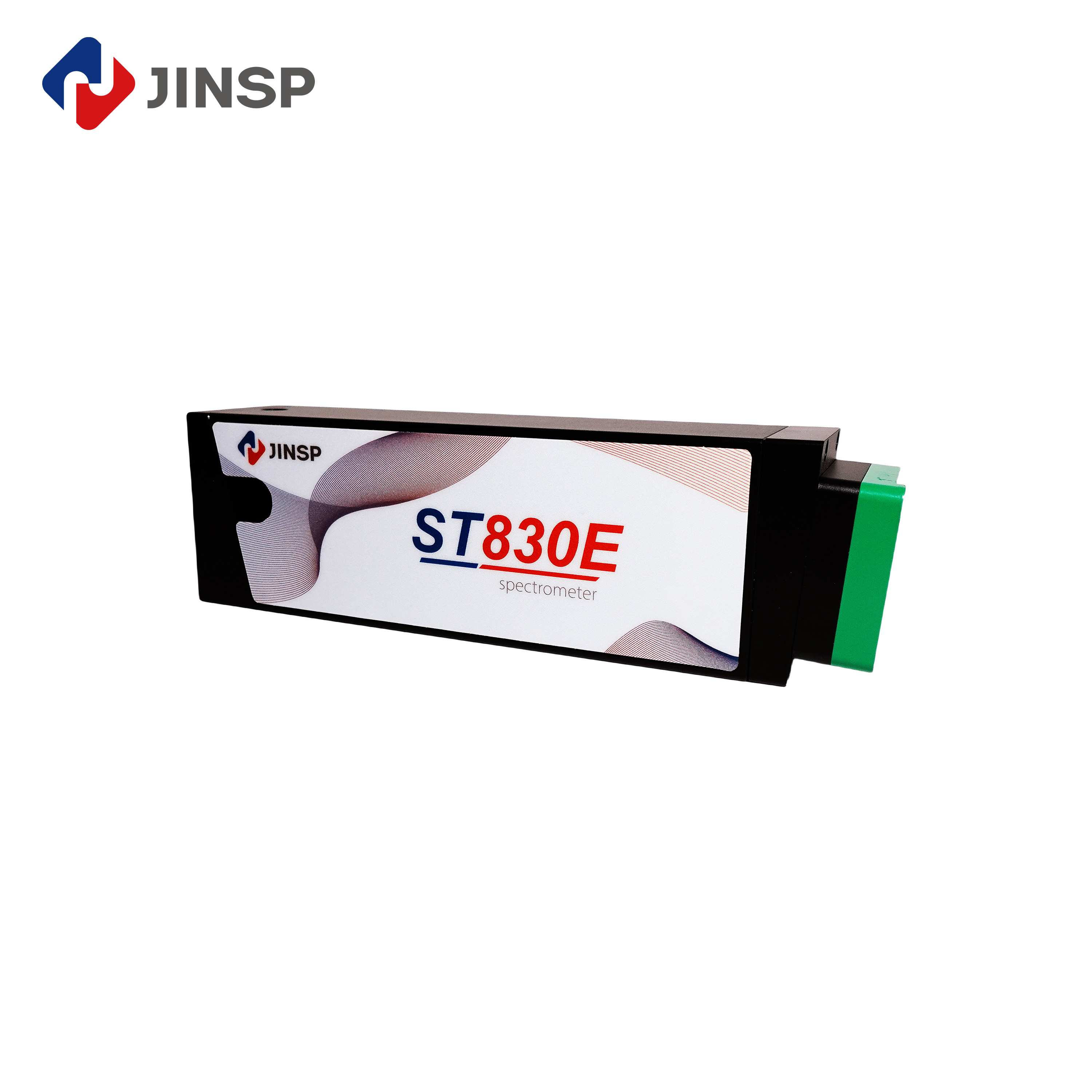

High Speed OCT Spectrometer Hardware Enabled Equal Interval Sampling For OEM

Contact Now

High Speed OCT Spectrometer Hardware Enabled Equal Interval Sampling For OEM

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Carton Packing	Delivery Time :	80-90 WORKING DAYS
Payment Terms :	T/T, Western Union	Supply Ability :	10PCS/MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST830E
Document:	Product Brochure PDF

Detail Information
Product Name:	High-speed And High-sensitivity OCT Spectrometers For Spectral Domain OCT System	Wavelength Range:	Customized In The Range Of 790-930nm
Incident Optical Interface:	FC/APC Fibre Optic Interface	Special Optical Path Design:	Hardware Can Realize Equal Interval Sampling Of Wave Number
Interference Spectrum Processing:	Direct FFT Without Wavenumber Resampling Algorithm	VPH Gratings:	High-efficiency With Near-diffraction-limited Optical Resolution
Product Category:	OCT Spectrometers	Detector:	Line Array CMOS
Highlight:	OCT Spectrometer OEM , OEM high sensitivity spectrometer , High Speed OCT Spectrometer

Product Description

High Speed OCT Spectrometer Hardware Enabled Equal Interval Sampling For OEM

Key Specifications

Attribute	Value
Product Name	High-speed and high-sensitivity OCT Spectrometers for Spectral Domain OCT System
Wavelength range	Customized in the range of 790-930nm
Incident optical interface	FC/APC fibre optic interface
Special optical path design	Hardware can realize equal interval sampling of wave number
Interference spectrum processing	Direct FFT without wavenumber resampling algorithm
VPH gratings	High-efficiency with near-diffraction-limited optical resolution
Product Category	OCT Spectrometers
Detector	Line array CMOS

Product Overview

The OCT Spectrometer features a line scan rate of up to 250kHz for rapid data acquisition and analysis. Its VPH raster & wave ridge linear design ensures precise detection with consistent, accurate results. With 2048 effective pixels, it captures high-resolution imaging to identify even the smallest structures.

Key Features

High Signal-to-Noise Ratio (SNR) for detecting faint signals in OCT imaging
Maximum line sweep speed: 130kHz/250kHz
Optical resolution: 0.07nm
Cell size: 10*200um
Photosensitive area: 20.52*0.2mm
Hardware-enabled equal interval sampling of wave number

Technical Parameters

Parameter	Specification
Product Category	OCT Spectrometers
Line scan rate	Up to 250kHz
Special optical path design	Hardware-enabled equal interval sampling
Optical resolution	0.07nm
Optical design	VPH raster & wave ridge linear design
Wavelength range	Customized 790-930nm

Applications

The JINSP ST830E OCT spectrometer is versatile for medical, biological, and industrial applications:

Medical: Ophthalmology (retina, cornea, optic nerve imaging), dermatology
Biological Research: Cell, tissue, and organ structure analysis
Industrial: Non-destructive testing, material analysis, quality control

Support & Services

Our comprehensive support includes:

Technical support and troubleshooting
Product training and maintenance
Calibration and repair services

Packaging & Shipping

Package Includes: One OCT spectrometer unit, USB cable, user manual, protective carrying case

Shipping: 80-90 business days delivery time. Free standard shipping within the US. International shipping available.

Frequently Asked Questions

What is the brand and model of the OCT Spectrometer?

Brand: JINSP, Model: ST830E

Where is it manufactured?

Manufactured in China

What are the payment and order terms?

Minimum order: 1 unit. Payment: T/T or Western Union. Supply capacity: 10 units/month.
