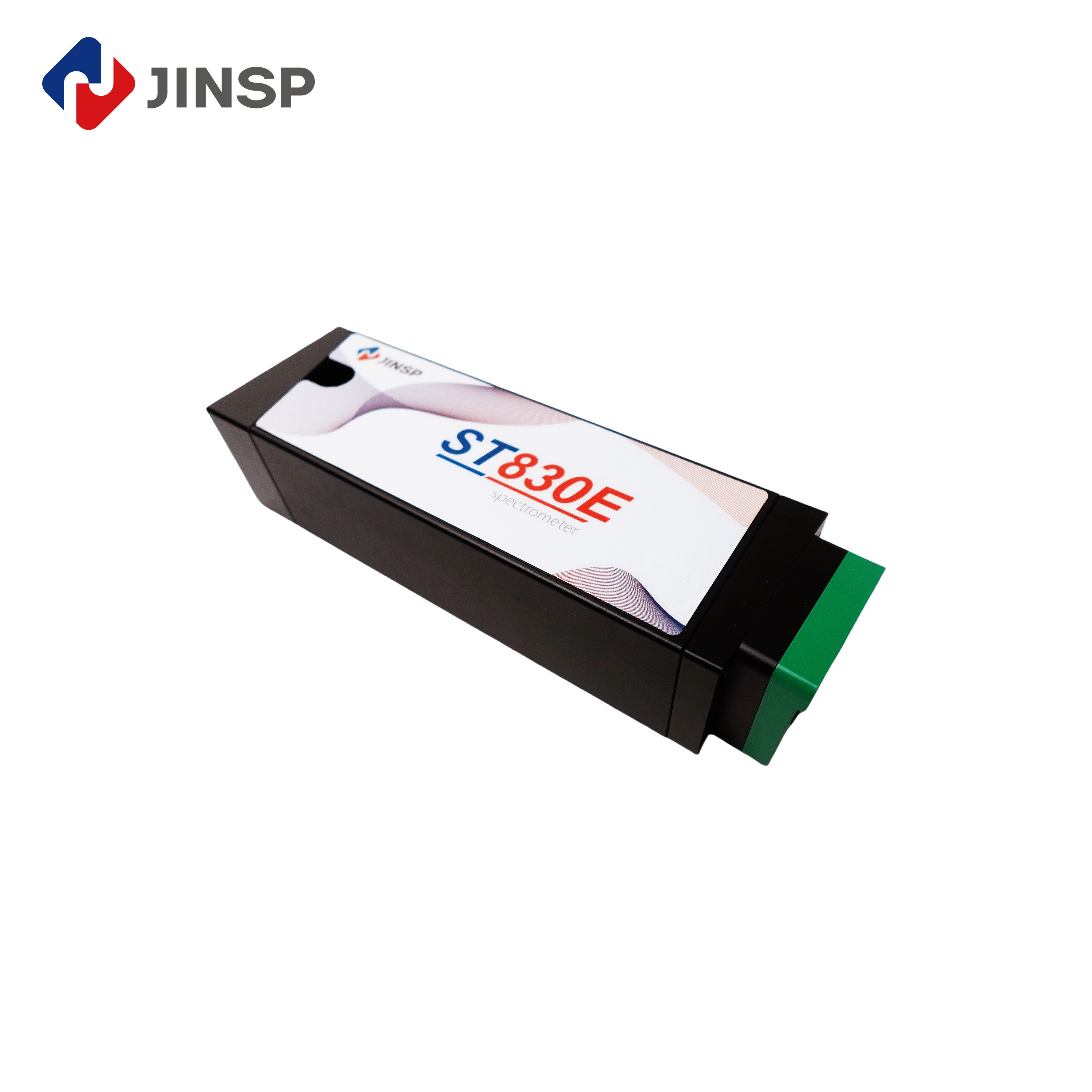

Optical Resolution OCT Spectrometer With Customized Wavelength Range

Contact Now

Optical Resolution OCT Spectrometer With Customized Wavelength Range

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Carton Packing	Delivery Time :	80-90 WORKING DAYS
Payment Terms :	T/T, Western Union	Supply Ability :	10PCS/MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST830E
Document:	Product Brochure PDF

Detail Information
Effective Pixels:	2048	Maximum Line Sweep Speed:	130kHz/250kHz
VPH Gratings:	High-efficiency With Near-diffraction-limited Optical Resolution	Cell Size:	10*200um
Interference Spectrum Processing:	Direct FFT Without Wavenumber Resampling Algorithm	Wavelength Range:	Customized In The Range Of 790-930nm
Photosensitive Area:	20.52*0.2mm	Optical Design:	VPH Raster & Wave Ridge Linear Design
Highlight:	Optical Resolution OCT Spectrometer w , Customized Wavelength OCT Spectrometer w

Product Description

Optical Resolution OCT Spectrometer With Customized Wavelength Range

Key Specifications

Effective pixels	2048
Maximum line sweep speed	130kHz/250kHz
VPH gratings	High-efficiency with near-diffraction-limited optical resolution
Cell size	10*200um
Interference spectrum processing	Direct FFT without wavenumber resampling algorithm
Wavelength range	Customized in the range of 790-930nm
Photosensitive area	20.52*0.2mm
Optical design	VPH raster & wave ridge linear design

Product Overview

Our high-performance OCT Spectrometers feature a specialized optical path design enabling hardware-based equal interval sampling of wave number, ensuring precise data capture for high-resolution applications like medical imaging.

The JINSP ST830E spectrometer delivers exceptional optical performance for Optical Coherence Tomography (OCT) applications, featuring:

VPH raster & wave ridge linear optical design
10*200um cell size for capturing minute details
Hardware-based equal interval wave number sampling
Direct FFT processing without wavenumber resampling

Technical Parameters

Product Name	High-speed and high-sensitivity OCT Spectrometers for Spectral Domain OCT System
Optical resolution	0.07nm
Incident optical interface	FC/APC fibre optic interface
Detector	Line array CMOS

Support & Services

We provide comprehensive support for our OCT Spectrometers including:

Installation and setup assistance
Training and education programs
Calibration and maintenance services
Software and firmware updates
Technical consultation and support

Product Information

Brand:

JINSP (Model ST830E)

Manufacturing Origin:

China

Minimum Order Quantity:

1 unit

Delivery Time:

80-90 business days

Packaging:

Carton packing including spectrometer unit, USB cable, user manual, and protective carrying case

Monthly Production Capacity:

10 units/month
