12V DC Externally Powered Laser Beam Profiler For Industrial Applications

Contact Now

12V DC Externally Powered Laser Beam Profiler For Industrial Applications

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	1PC/BOX	Delivery Time :	30 Working Days
Payment Terms :	T/T	Supply Ability :	100PCS Per 30 Working Days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001 IP30 IP40	Model Number:	BA1023
Document:	Product Brochure PDF

Detail Information
Effective Sensing Area:	11mm*7mm	SNR:	40 DB
Maximum Frame Rate:	41 Fps@1920*1200	Data Interface:	USB3 Vision, GenlCam
Power Supply:	USB Powered Or 12V DC Externally Powered	Support Operating Systems:	Windows 10(64bit)and Linux(Ubuntu X86)
Highlight:	12V DC Laser Beam Profiler , Industrial Laser Beam Profiler , 12V DC laser beam analyzer

Product Description

12V DC Externally Powered Laser Beam Profiler For Industrial Applications

Key Specifications

Attribute	Value
Effective Sensing Area	11mm × 7mm
SNR	40 DB
Maximum Frame Rate	41 Fps@1920×1200
Data Interface	USB3 Vision, GenlCam
Power Supply	USB Powered or 12V DC Externally Powered
Support Operating Systems	Windows 10 (64bit) and Linux (Ubuntu X86)

Product Overview

The JINSP BA1023 Beam Profiler is a precision instrument designed for real-time measurement and analysis of laser beam spots. With its high SNR of 40 dB and minimum detection area of 30μm (5 pixels), this device delivers exceptional accuracy for research, industrial, and scientific applications.

Versatile power options: USB or 12V DC external power supply

High-speed performance with 41 FPS@1920×1200 frame rate

Dual OS compatibility: Windows 10 (64-bit) and Linux (Ubuntu X86)

Advanced features including real-time dual light spot comparison

Technical Specifications

Product Code	BA1023	BA1024Ga	BA1024Gb	BA1024Ua	BA1024Ub
Probe wavelength range	280nm ~ 1100nm
Effective sensing area	11mm×7mm	13mm×8.7mm	7mm×5.5mm	4.9mm×3.7mm
Sensor	2.3MP, 1/1.2" CMOS	20MP, 1" CMOS	2MP, 1/1.7" CMOS	0.4MP, 1/2.9" CMOS
SNR	40 dB	44.9 dB	41.5 dB	43.7 dB	42.9 dB
Maximum frame rate	41 fps@1920×1200	5.9 fps@5472×3648	90 fps@1624×1240	526.5 fps @720×540 Mono 8

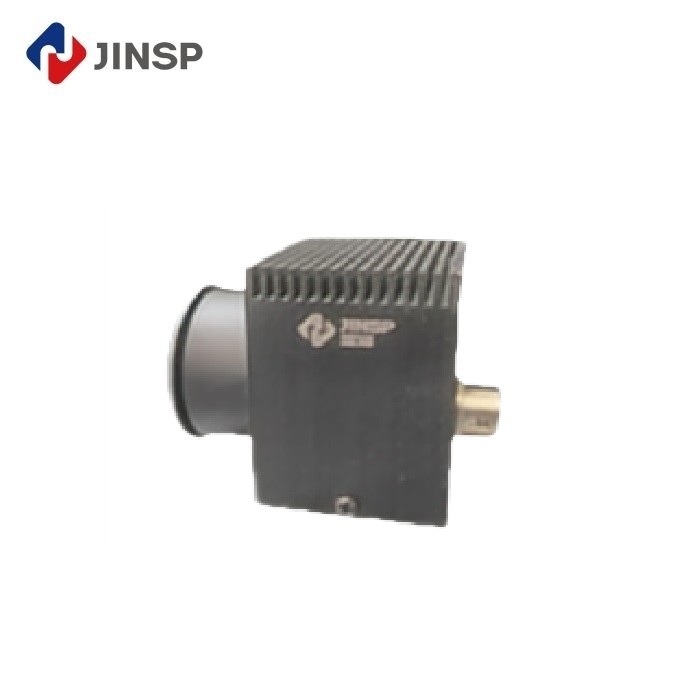

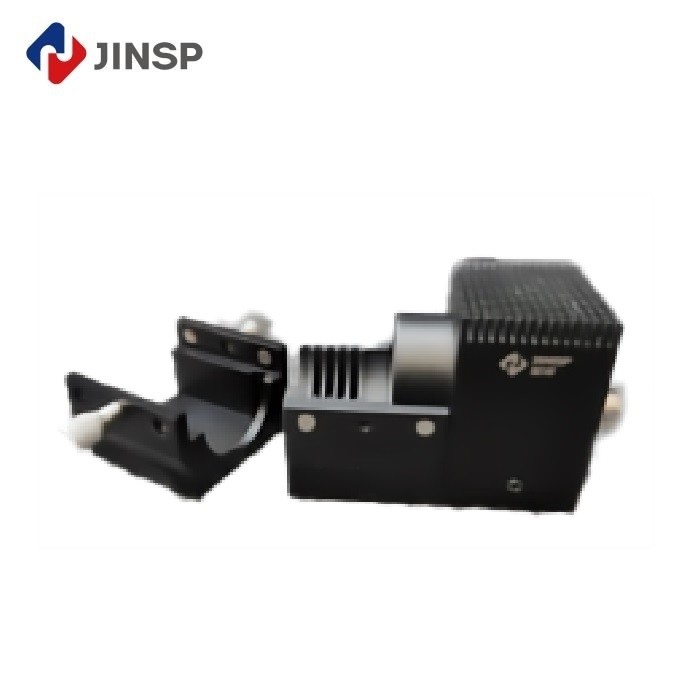

Product Images

Support & Services

Our comprehensive support package ensures optimal performance of your Beam Profiler:

Expert technical support and troubleshooting

Professional calibration services

Repair and maintenance services

Operator training sessions

Regular software updates

Shipping Information

Each unit is carefully packaged with protective materials and shipped in sturdy boxes. We offer multiple shipping options including standard, expedited, and overnight delivery. Tracking information is provided for all shipments.

Frequently Asked Questions

What is the JINSP BA1023 Beam Profiler?

A precision instrument that measures the spatial intensity distribution of laser beams with high accuracy.

Where is the JINSP BA1023 Beam Profiler manufactured?

Manufactured in China to international quality standards.

What is the minimum order quantity?

Single unit orders are accepted.

What is the delivery time?

Standard delivery time is 30 working days.
