30μM / 5 Pixls Compact Beam Profiler The Perfect Tool For Advanced Laser Characterization

Contact Now

30μM / 5 Pixls Compact Beam Profiler The Perfect Tool For Advanced Laser Characterization

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	1PC/BOX	Delivery Time :	30 Working Days
Payment Terms :	T/T	Supply Ability :	20PCS Per Month

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001 IP30 IP40	Model Number:	BA1023
Document:	Product Brochure PDF

Detail Information
Dimension:	78 45 38.5mm (without Base)	Maximum Frame Rate:	41 Fps@1920*1200
Data Interface:	USB3 Vision, GenlCam	Power Supply:	USB Powered Or 12V DC Externally Powered
Minimum Detection Area:	30μm (5 Pixls)
Highlight:	Compact Beam Profiler , 30μm Beam Profiler , 5 Pixls laser beam profiler

Product Description

30μM / 5 Pixls Compact Beam Profiler - The Perfect Tool For Advanced Laser Characterization

Key Specifications

Dimensions: 78 × 45 × 38.5mm (without Base)
Maximum Frame Rate: 41 Fps@1920×1200
Data Interface: USB3 Vision, GenlCam
Power Supply: USB Powered Or 12V DC Externally Powered
Minimum Detection Area: 30μm (5 Pixls)

Product Overview

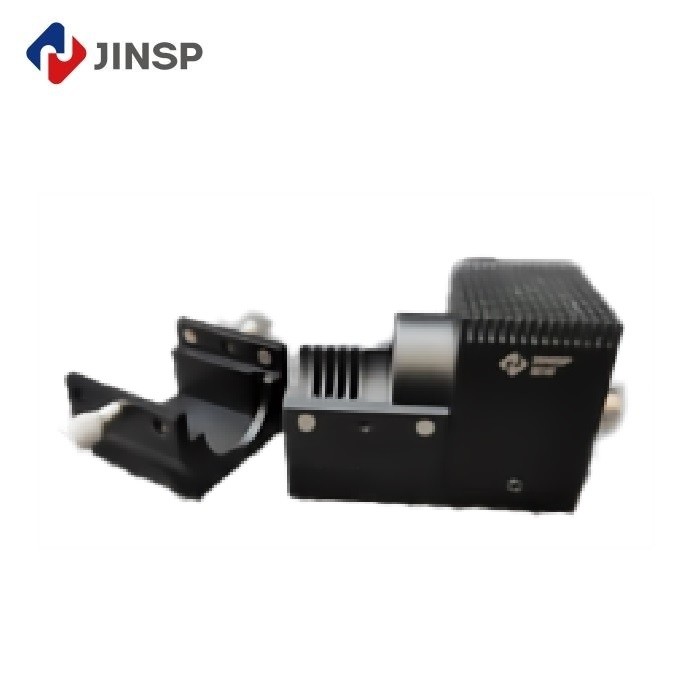

The BA1023 USB 1920×1200 CMOS 280nm ~1100nm Laser Beam Spot Analysis is a precision instrument designed for advanced laser characterization. This compact beam profiler offers exceptional accuracy with a signal-to-noise ratio of 40 dB, making it ideal for research, manufacturing, and industrial applications requiring precise laser measurements.

Key Features

Real-time comparison of dual light spots for side-by-side beam analysis
Background cropping to eliminate noise and improve measurement accuracy
Integrated light intensity camera for precise beam intensity measurement
Compact design with USB or 12V DC power options
One-year warranty with free repair service

Technical Specifications

Product Code	BA1023	BA1024Ga	BA1024Gb	BA1024Ua	BA1024Ub
Probe wavelength range	280nm ~ 1100nm
Effective sensing area	11mm×7mm	13mm×8.7mm	7mm×5.5mm	4.9mm×3.7mm	-
Sensor	2.3MP, 1/1.2" CMOS	20MP, 1" CMOS	2MP, 1/1.7" CMOS	0.4MP, 1/2.9" CMOS	-
SNR	40 dB	44.9 dB	41.5 dB	43.7 dB	42.9 dB

Applications

The JINSP BA1023 Beam Profiler is essential for:

Laser manufacturing processes (welding, cutting, drilling)
Research and development of laser technologies
Medical laser treatment applications
Military and defense laser systems

Support & Services

Our comprehensive support package includes:

Installation and setup assistance
Troubleshooting and technical support
Regular software updates
Training resources
Repair and replacement services

Frequently Asked Questions

Q1: What is the brand name of this beam profiler?

A1: The brand name is JINSP.

Q2: What is the model number?

A2: The model number is BA1023.

Q4: What are the payment terms?

A4: Payment terms are T/T.

Q5: What is the delivery time?

A5: Delivery time is 30 working days.
