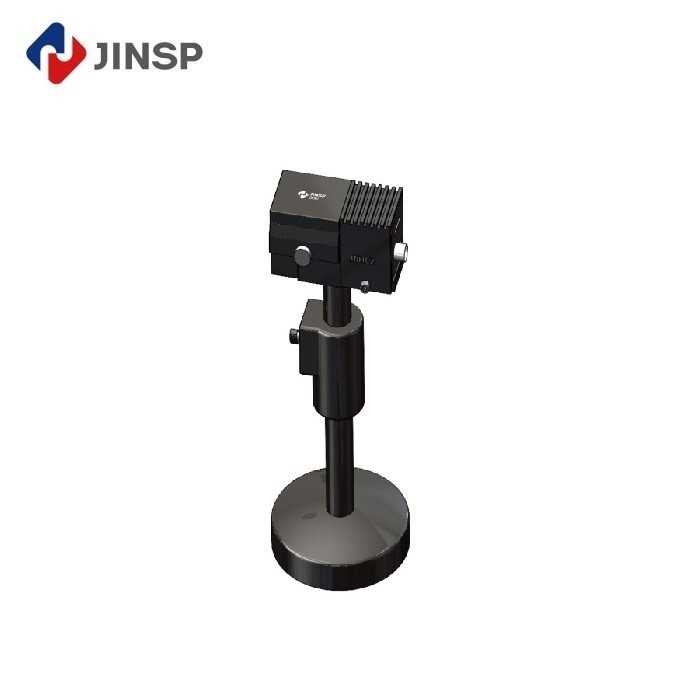

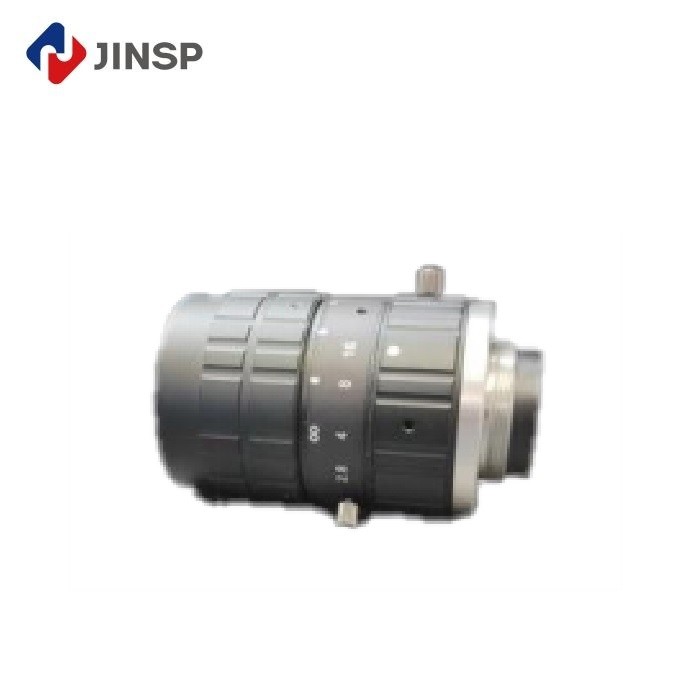

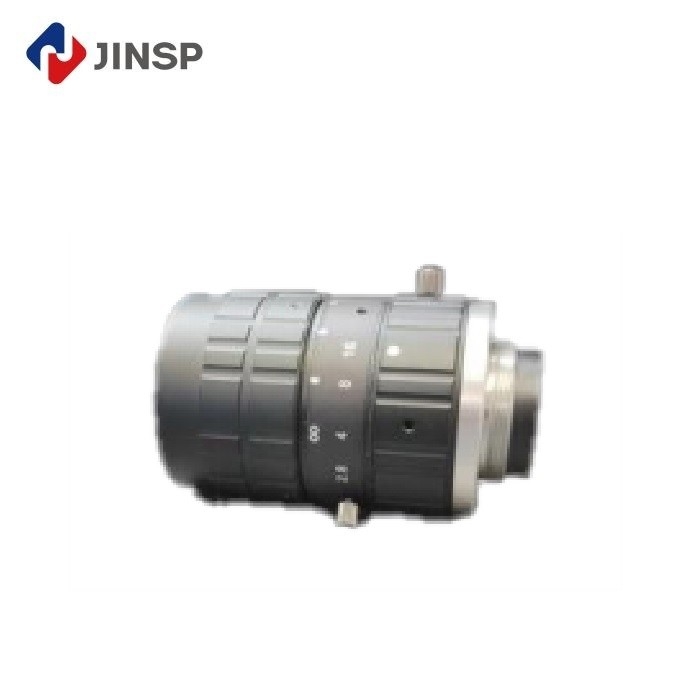

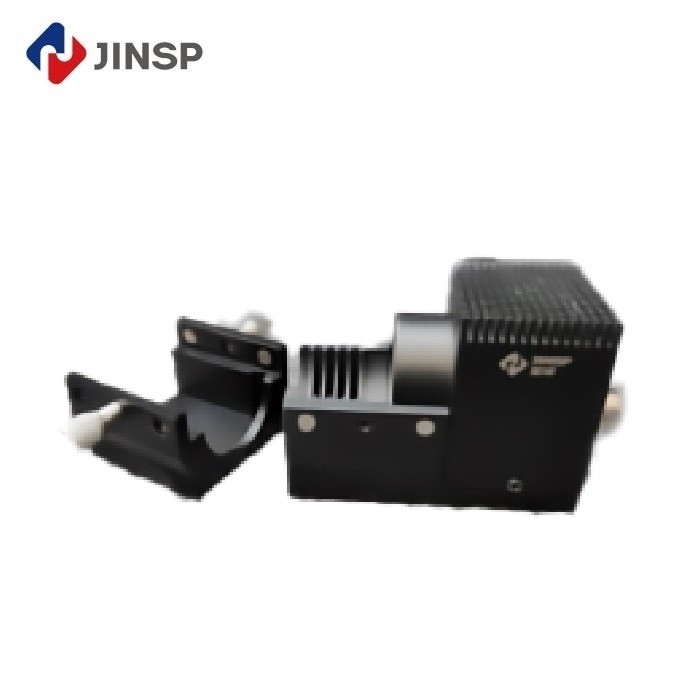

BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight
BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight
BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight
Contact Now

BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : International Shipping Package Delivery Time : 30 Working Days
Payment Terms : T/T Supply Ability : 100PCS Per 30 Working Days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE ISO9001 IP30 IP40 Model Number: BA1024Ga
Document: Product Brochure PDF

Detail Information
Wavelength Range: 280nm-1100nm Dimension: 78 *45 *38.5mm (without Base)
Power Supply: USB Powered Or 12V DC Externally Powered Effective Sensing Area: 11mm*7mm
Sensor: 2.3MP, 1/1.2" CMOS SNR: 40 DB
Cell Size: 5.86μm*5.86μm Minimum Detection Area: 30μm (5 Pixls)
Maximum Frame Rate: 41 Fps@1920*1200 Data Interface: USB3 Vision, GenlCam
Highlight:

Optical Beam Profiler 280nm

,

Optical Beam Profiler 1100nm

Product Description

BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight
Product Specifications
Attribute Value
Wavelength Range 280nm-1100nm
Dimension 78 *45 *38.5mm (without base)
Power supply USB powered or 12V DC externally powered
Effective sensing area 11mm*7mm
Sensor 2.3MP, 1/1.2" CMOS
SNR 40 dB
Cell size 5.86μm*5.86μm
Minimum detection area 30μm (5 pixls)
Maximum frame rate 41 fps@1920*1200
Data interface USB3 Vision, GenlCam
280nm ~1100nm CMOS USB Laser Beam Profiler
Product Selection Table & Parameters
Product Code BA1023 BA1024Ga BA1024Gb BA1024Ua BA1024Ub
Probe wavelength range 280nm ~ 1100nm
Effective sensing area 11mm*7mm 13mm*8.7mm 7mm*5.5mm 4.9mm*3.7mm
Sensor 2.3MP, 1/1.2" CMOS 20MP, 1" CMOS 2MP, 1/1.7" CMOS 0.4MP, 1/2.9" CMOS
SNR 40 dB 44.9 dB 41.5 dB 43.7 dB 42.9 dB
Gain control 0~20dB 0~24dB
Cell size 5.86μm*5.86μm 2.4μm*2.4μm 4.5μm*4.5μm 6.9μm*6.9μm
Minimum detection area 30μm (5 pixls) 12 μm (5 pixls) 22.5 μm (5 pixls)
Maximum frame rate 41 fps@1920*1200 5.9 fps @5472*3648 90 fps @1624*1240 526.5 fps @720*540 Mono 8
Ingress protection IP30 IP40
Data interface USB GigE USB
File storage *.jpg,*.mat,*.csv,*.xml
Light attenuation component Insertable and barrel-type options are available, compatible with 1-inch unframed filters
Storage temperature -30℃~ +70℃
Beam Profiler Applications
  • Measuring: The size of the light spot
  • Marking: The position of the light spot
  • Comparing: The change in the light spot
  • Real-time monitoring
Main Software Functions
  • Compatible with Windows 10 (64-bit) and Linux (Ubuntu X86)
  • Camera control including exposure, gain, and resolution adjustments
  • Real-time pseudo-color visualization for 2D and 3D spot representations
  • Measurement of spot axes length, width, ellipticity, and rotation angle
  • Special functions including real-time dual spot comparison and background cropping
  • Data recording and export capabilities
Software Functions
2D & 3D Spot Reconstruction
BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight 0
Gaussian & Super-Gaussian fitting
BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight 1
Background Shear
BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight 2
Dual-beam real-time comparison
BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight 3
Light intensity camera (optional)
BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight 4
Applications
  • Beam quality measurement (critical parameter for lasers in optical fields)
  • Optical research, laser system research, and light energy distribution detection
  • Real-time monitoring of light spots during processing
  • Light intensity distribution monitoring (equivalent to light intensity camera)
  • Specialized applications for instrument manufacturing
BA1024Ga USB 1920*1200 Optical Beam Profiler 280nm ~1100nm Lightweight 5

Example: The laser printing industry utilizes beam profilers to design and manufacture Laser Scanning Units (LSU), analyzing beam size, array, and swing impact for printer optimization.

Frequently Asked Questions
Q1: This is the first time I use it, is it easy to operate?
A1: We provide an English manual and guide video, along with professional technical support from our engineers.
Q2: Can you offer an operation training?
A2: Training is available at our factory or we can provide on-site support including installation, training, debugging, and maintenance.
Q3: How to receive the best price in the shortest time?
A3: Please provide detailed specifications (wavelength, detector, pixels, focal length, etc.) for a prompt quotation.
Q4: If the spectrometer has a problem in my place, what could I do?
A4: The product includes a one-year warranty with free repairs for manufacturing defects.
Q5: What about quality assurance?
A5: All products undergo rigorous quality inspection before shipment, with documentation provided.
