CMOS 280nm ~1100nm Laser Beam Analyzer BA1023 USB 1920x1200 Real-Time Monitoring

Contact Now

CMOS 280nm ~1100nm Laser Beam Analyzer BA1023 USB 1920x1200 Real-Time Monitoring

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	30 Working Days
Payment Terms :	T/T	Supply Ability :	100PCS Per 30 Working Days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001 IP30 IP40	Model Number:	BA1023
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	280nm-1100nm	Dimension:	78 45 38.5mm (without Base)
Power Supply:	USB Powered Or 12V DC Externally Powered	Effective Sensing Area:	11mm*7mm
Sensor:	2.3MP, 1/1.2" CMOS	SNR:	40 DB
Cell Size:	5.86μm*5.86μm	Minimum Detection Area:	30μm (5 Pixls)
Maximum Frame Rate:	41 Fps@1920*1200	Data Interface:	USB3 Vision, GenlCam
Highlight:	1100nm Laser Beam Analyzer , 280nm Laser Beam Analyzer , cmos beam profiler 1920x1200

Product Description

CMOS 280nm ~1100nm Laser Beam Analyzer BA1023 USB 1920x1200 Real-Time Monitoring

Product Specifications

Attribute	Value
Wavelength Range	280nm-1100nm
Dimension	78 45 38.5mm (without base)
Power supply	USB powered or 12V DC externally powered
Effective sensing area	11mm*7mm
Sensor	2.3MP, 1/1.2" CMOS
SNR	40 dB
Cell size	5.86μm*5.86μm
Minimum detection area	30μm (5 pixls)
Maximum frame rate	41 fps@1920*1200
Data interface	USB3 Vision, GenlCam

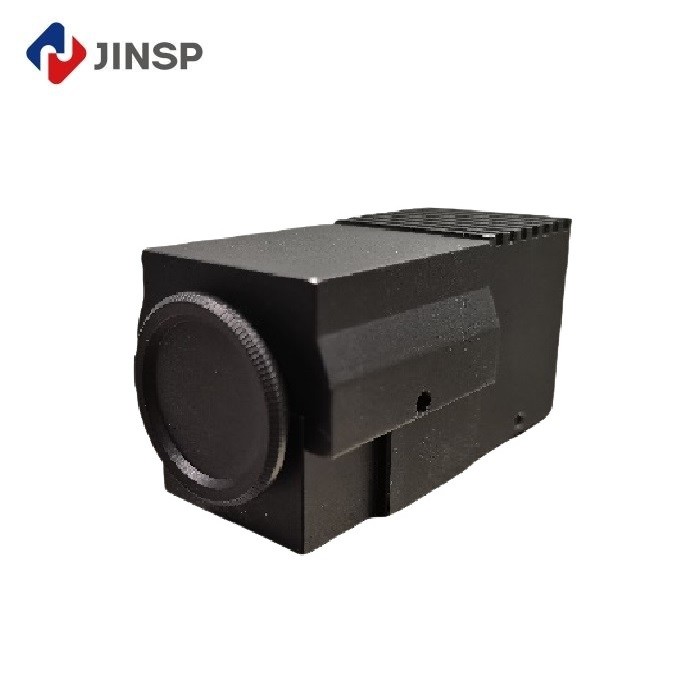

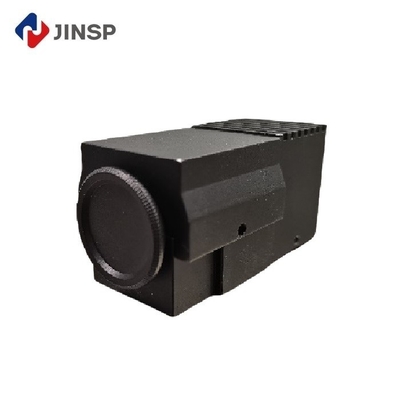

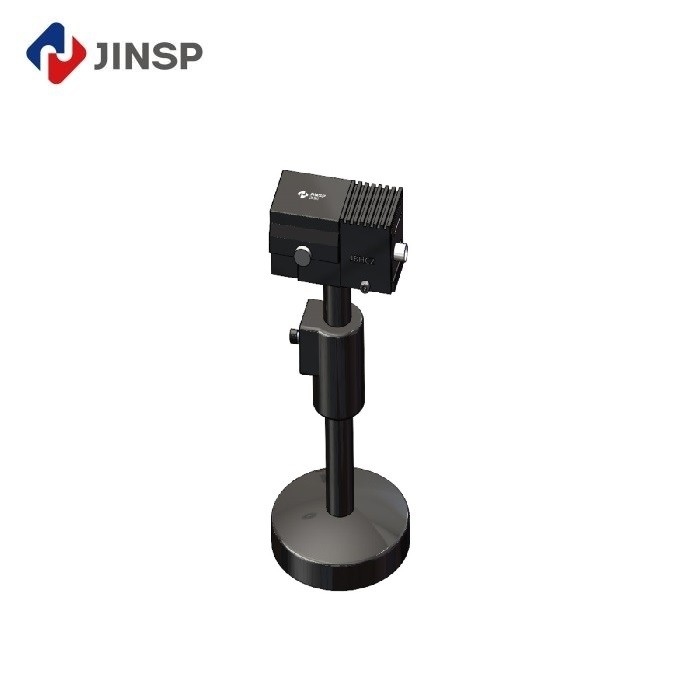

280nm ~1100nm CMOS USB Laser Beam Profiler

JINSP Beam Profilers are precision instruments designed for comprehensive laser and light beam analysis with these key capabilities:

Measuring: Precise dimensions and characteristics of light spots for optimized resource utilization
Marking: Accurate light spot positioning for quality control of raw materials and finished products
Comparing: Spot variations over time or conditions for process consistency
Real-time monitoring: Continuous beam observation for immediate performance feedback

These profilers are essential tools for industries requiring precise laser measurements, offering solutions for quality control, process improvement, and real-time monitoring.

Product Selection & Technical Parameters

Product Code	BA1023	BA1024Ga	BA1024Gb	BA1024Ua	BA1024Ub
Probe wavelength range	280nm ~ 1100nm
Effective sensing area	11mm*7mm	13mm*8.7mm	7mm*5.5mm	4.9mm*3.7mm
Sensor	2.3MP, 1/1.2" CMOS	20MP, 1" CMOS	2MP, 1/1.7" CMOS	0.4MP, 1/2.9" CMOS
SNR	40 dB	44.9 dB	41.5 dB	43.7 dB	42.9 dB
Gain control	0~20dB	0~24dB
Cell size	5.86μm*5.86μm	2.4μm*2.4μm	4.5μm*4.5μm	6.9μm*6.9μm
Minimum detection area	30μm (5 pixls)	12 μm (5 pixls)	22.5 μm (5 pixls)
Maximum frame rate	41 fps@1920*1200	5.9 fps@5472*3648	90 fps@1624*1240	526.5 fps @720*540 Mono 8
Ingress protection	IP30	IP40
Data interface	USB	GigE	USB

Software Features

Compatible with Windows 10 (64bit) and Linux (Ubuntu X86)
Camera exposure, gain, and resolution control
Real-time pseudo-color 2D & 3D spot visualization
Gaussian & Super-Gaussian curve analysis
Spot parameter measurement (axes, ellipticity, rotation angle)
Advanced functions: dual spot comparison, background cropping, light intensity camera
Data recording and export capabilities

2D & 3D Spot Reconstruction

Gaussian & Super-Gaussian fitting

Background Shear

Dual-beam real-time comparison (Location, light intensity distribution)

Light intensity camera (optional)

Applications

Laser beam quality measurement for optical research and industrial applications
Scientific research in laser system and detection studies
Real-time processing monitoring for laser equipment manufacturers
Light intensity distribution monitoring with imaging lenses
Specialized applications in instrument manufacturing

Example medical application: In ophthalmic excimer laser procedures, precise knowledge of beam size and divergence angle is critical for tissue cutting using short-wave ultraviolet radiation.

Frequently Asked Questions

Q1: This is the first time I use it, is it easy to operate?

A1: We provide an English manual and instructional video, along with professional technical support from our engineers.

Q2: Can you offer an operation training?

A2: We offer on-site training at our facility or can arrange for JINSP engineers to provide local support including installation, training, and debugging.

Q3: How to receive the best price in the shortest time?

A3: Please provide detailed specifications (wavelength, detector, pixels, focal length) in your inquiry for a prompt, detailed quotation.

Q4: If the spectrometer has a problem in my place, what could I do?

A4: The product includes a one-year warranty with free repairs. Our technicians will diagnose issues based on your feedback.

Q5: What about quality assurance?

A5: All products undergo rigorous quality inspection before shipment, with documentation available upon request.
