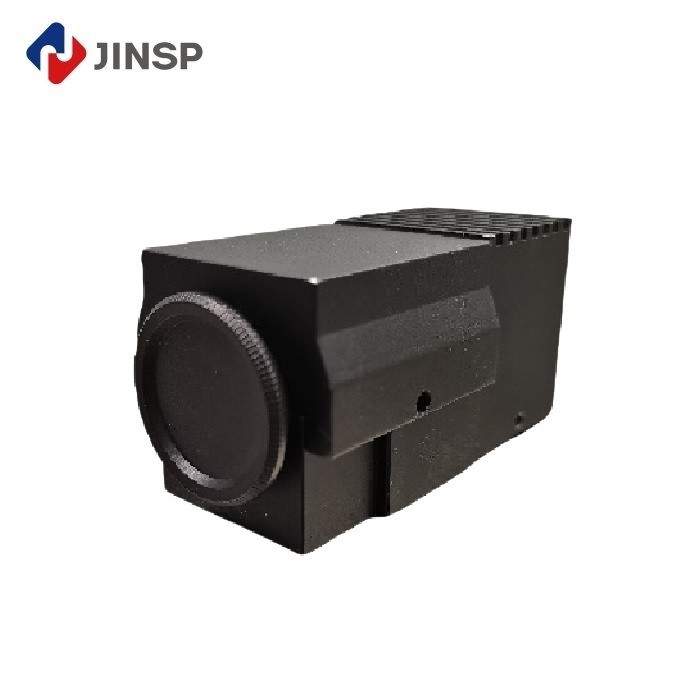

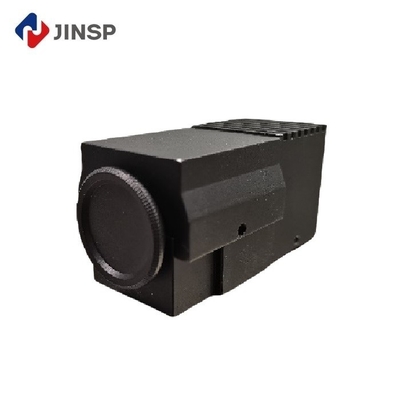

The Beam Profiler has a wavelength range of 280nm-1100nm, making it suitable for a wide range of laser applications. The device has an SNR of 40 DB, ensuring accurate and reliable results every time.
The device has a compact design with dimensions of 78 *45 *38.5mm (without Base), making it easy to use and transport. It is also equipped with a USB3 Vision, GenlCam data interface, making it easy to connect to other devices and transfer data.
The Beam Profiler is an essential tool for anyone working with lasers. It provides accurate laser beam spot measurement and analysis, making it perfect for applications such as laser cutting, laser welding, and laser engraving. The device is a beam spot analyzer that provides accurate and reliable results every time.
Product Selection Table & Parameters:
| Product Code |
BA1023 |
BA1024Ga |
BA1024Gb |
BA1024Ua |
BA1024Ub |
| Probe wavelength range |
280nm ~ 1100nm |
| Effective sensing area |
11mm*7mm |
13mm*8.7mm |
7mm*5.5mm |
4.9mm*3.7mm |
| Sensor |
2.3MP, 1/1.2" CMOS |
20MP, 1" CMOS |
2MP, 1/1.7" CMOS |
0.4MP, 1/2.9" CMOS |
| SNR |
40 dB |
44.9 dB |
41.5 dB |
43.7 dB |
42.9 dB |
| Gain control |
0~20dB |
0~24dB |
| Cell size |
5.86μm*5.86μm |
2.4μm*2.4μm |
4.5μm*4.5μm |
6.9μm*6.9μm |
| Minimum detection area |
30μm (5 pixls) |
12 μm (5 pixls) |
22.5 μm (5 pixls) |
| Maximum frame rate |
41 fps@1920*1200 |
5.9 fps
@5472*3648 |
90 fps
@1624*1240 |
526.5 fps @
720*540 Mono 8 |
| Ingress protection |
IP30 |
IP40 |
| Data interface |
USB |
GigE |
USB |
| File storage |
*.jpg,*.mat,*.csv,*.xml |

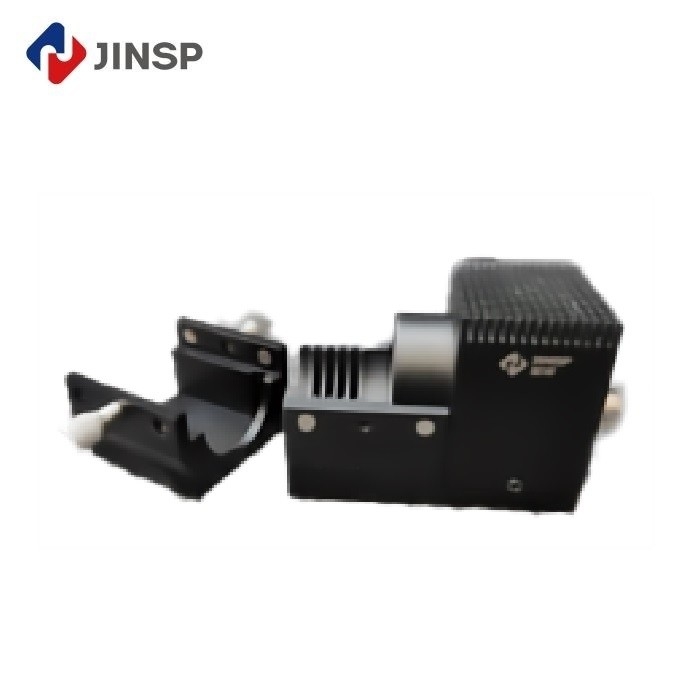

| Light attenuation component |
Insertable and barrel-type options are available, compatible with 1-inch unframed filters |
| Storage temperature |
-30℃~ +70℃
|
Main Features:
- Effective Sensing Area: 11mm*7mm
- Support Operating Systems: Windows 10(64bit)and Linux(Ubuntu X86)
- Wavelength Range: 280nm-1100nm
- Special Functions: Real-time comparison of dual light spots, background cropping, and light intensity camera
- Cell Size: 5.86μm*5.86μm
Applications:
Introducing the BA1023 USB 1920x1200 CMOS 280nm ~1100nm Laser Beam Spot Analysis, a beam profiler from JINSP that offers precise and accurate laser beam spot measurement for various applications and scenarios.
The BA1023 USB 1920x1200 CMOS 280nm ~1100nm Laser Beam Spot Analysis is a must-have tool for laser beam spot measurement and analysis. It is suitable for academic research, industrial production, and other areas where laser beams are used. The sensor of this beam profiler is a 2.3MP, 1/1.2" CMOS that can support various wavelengths ranging from 280nm to 1100nm. The power supply can either be USB-powered or 12V DC externally powered, making it convenient for different applications.
With the BA1023 USB 1920x1200 CMOS 280nm ~1100nm Laser Beam Spot Analysis, you can measure the beam diameter, intensity distribution, and other parameters of your laser beam with ease. This product is user-friendly and comes with a manual and guide video in English. Operation training is also available upon request, so you can get the most out of your beam profiler. To get the best price, simply send us your details and requirements.
2D & 3D Spot Reconstruction
Gaussian & Super-Gaussian fitting
Background Shear
Dual-beam real-time comparison (Location, light intensity distribution)
Light intensity camera (optional)
Support and Services:
Our Beam Profiler product comes with comprehensive technical support and services to ensure that you are able to get the most out of your device. Our team of experts is available to assist you with any issues that you may encounter, and we offer a range of services to keep your device running smoothly.
Our technical support team can help you with:
- Installation and setup of your device
- Troubleshooting any issues or problems you may encounter
- Providing advice and guidance on how to best use your Beam Profiler
In addition to our technical support, we also offer a range of services to help you get the most out of your device:
- Calibration services to ensure accurate and reliable measurements
- Maintenance and repair services to keep your device running smoothly
- Training services to help you and your team learn how to effectively use your Beam Profiler
At our company, we are committed to providing our customers with the highest level of support and service. Contact us today to learn more about our technical support and services for the Beam Profiler.
FAQ:
Q: What is the brand name of this beam profiler?
A: The brand name of this beam profiler is JINSP.
Q: What is the model number of this beam profiler?
A: The model number of this beam profiler is BA1023.
Q: What is the place of origin of this beam profiler?
A: The place of origin of this beam profiler is CHINA.
Q: What are the payment terms for purchasing this beam profiler?
A: The payment terms for purchasing this beam profiler are T/T.
Q: What is the supply ability for this beam profiler?
A: The supply ability for this beam profiler is 20PCS per month.
Q: What is the delivery time for this beam profiler?
A: The delivery time for this beam profiler is 30 working days for standard product .
Q: What are the packaging details of this beam profiler?
A: The packaging details of this beam profiler is 1PC/BOX.
Q: What certifications does this beam profiler have?
A: This beam profiler has CE, ISO9001, IP30, and IP40 certifications.
