280nm-1100nm CMOS Beam Profiler Windows 10 64bit And Linux Ubuntu X86 Compatible

Contact Now

280nm-1100nm CMOS Beam Profiler Windows 10 64bit And Linux Ubuntu X86 Compatible

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	1PC/BOX	Delivery Time :	30 Working Days
Payment Terms :	T/T	Supply Ability :	20PCS Per Month

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001 IP30 IP40	Model Number:	BA1023
Document:	Product Brochure PDF

Detail Information
Effective Sensing Area:	11mm*7mm	Data Interface:	USB3 Vision, GenlCam
Dimension:	78 45 38.5mm (without Base)	Power Supply:	USB Powered Or 12V DC Externally Powered
Wavelength Range:	280nm-1100nm	Cell Size:	5.86μm*5.86μm
Support Operating Systems:	Windows 10(64bit)and Linux(Ubuntu X86)	Maximum Frame Rate:	41 Fps@1920*1200
Highlight:	1100nm CMOS beam profiler , 280nm CMOS beam profiler , 280nm laser beam analyzer

Product Description

280nm-1100nm CMOS Beam Profiler Windows 10 64bit And Linux Ubuntu X86 Compatible

Product Overview

The BA1023 USB 1920x1200 CMOS 280nm~1100nm Laser Beam Spot Analyzer provides precise measurement of laser beam spot size, shape, and intensity with real-time comparison capabilities, background cropping, and light intensity camera functionality.

Key Specifications

Attribute	Value
Effective Sensing Area	11mm × 7mm
Data Interface	USB3 Vision, GenlCam
Dimensions	78 × 45 × 38.5mm (without Base)
Power Supply	USB Powered or 12V DC External
Wavelength Range	280nm-1100nm
Cell Size	5.86μm × 5.86μm
Supported OS	Windows 10 (64bit) and Linux (Ubuntu X86)
Maximum Frame Rate	41 Fps@1920×1200

Product Features

High-resolution 2.3MP CMOS sensor for detailed beam profiling
Real-time dual light spot comparison capability
Background cropping and light intensity measurement
USB3 Vision and GenlCam compatible interface
Compact design with flexible power options
Compatible with Windows 10 and Linux systems

Product Models

Model	BA1023	BA1024Ga	BA1024Gb	BA1024Ua	BA1024Ub
Sensor	2.3MP, 1/1.2" CMOS	20MP, 1" CMOS	2MP, 1/1.7" CMOS	0.4MP, 1/2.9" CMOS	0.4MP, 1/2.9" CMOS
Effective Area	11mm×7mm	13mm×8.7mm	7mm×5.5mm	4.9mm×3.7mm	4.9mm×3.7mm
Max Frame Rate	41 fps@1920×1200	5.9 fps@5472×3648	90 fps@1624×1240	526.5 fps@720×540	526.5 fps@720×540

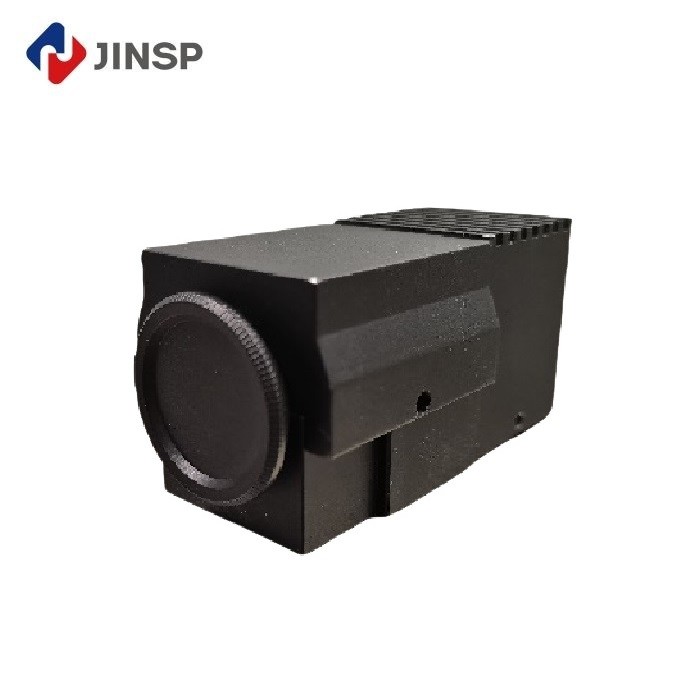

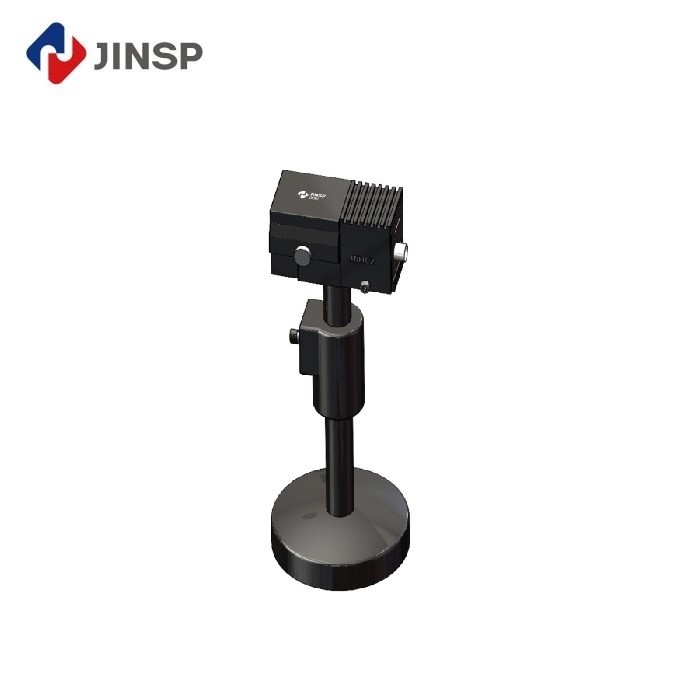

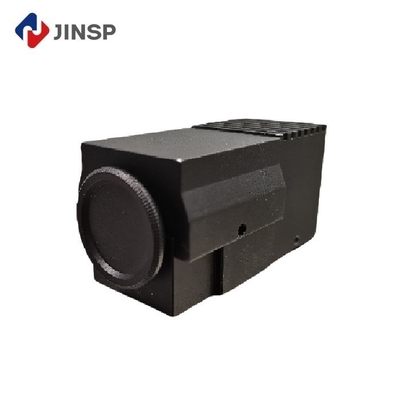

Product Images

Applications

The BA1023 Beam Profiler is ideal for:

Precision laser beam quality measurement
Optical research and development
Laser system performance monitoring
Real-time processing spot analysis
Light intensity distribution measurement

Support & Services

Installation assistance and troubleshooting
Software updates and technical documentation
Calibration and maintenance services
Comprehensive user training
Warranty and repair services

Frequently Asked Questions

What is the brand name of the beam profiler?

JINSP

What is the model number?

BA1023

What is the minimum order quantity?

1 unit

What are the payment terms?

T/T (Telegraphic Transfer)

What is the delivery time?

30 working days
