ST830E OCT Spectrometer High-Resolution Imaging for Medical Applications
| Wavelength Range |
790-930nm |
| Weight |
1.5 kg |
| Model Name |
Optical Coherence Tomography (OCT) Spectrometer |
| Effective pixels |
2048 pixels |
| Sensing Area |
20.48*0.2mm |
| Line Scan Rate |
Up to 250kHz |

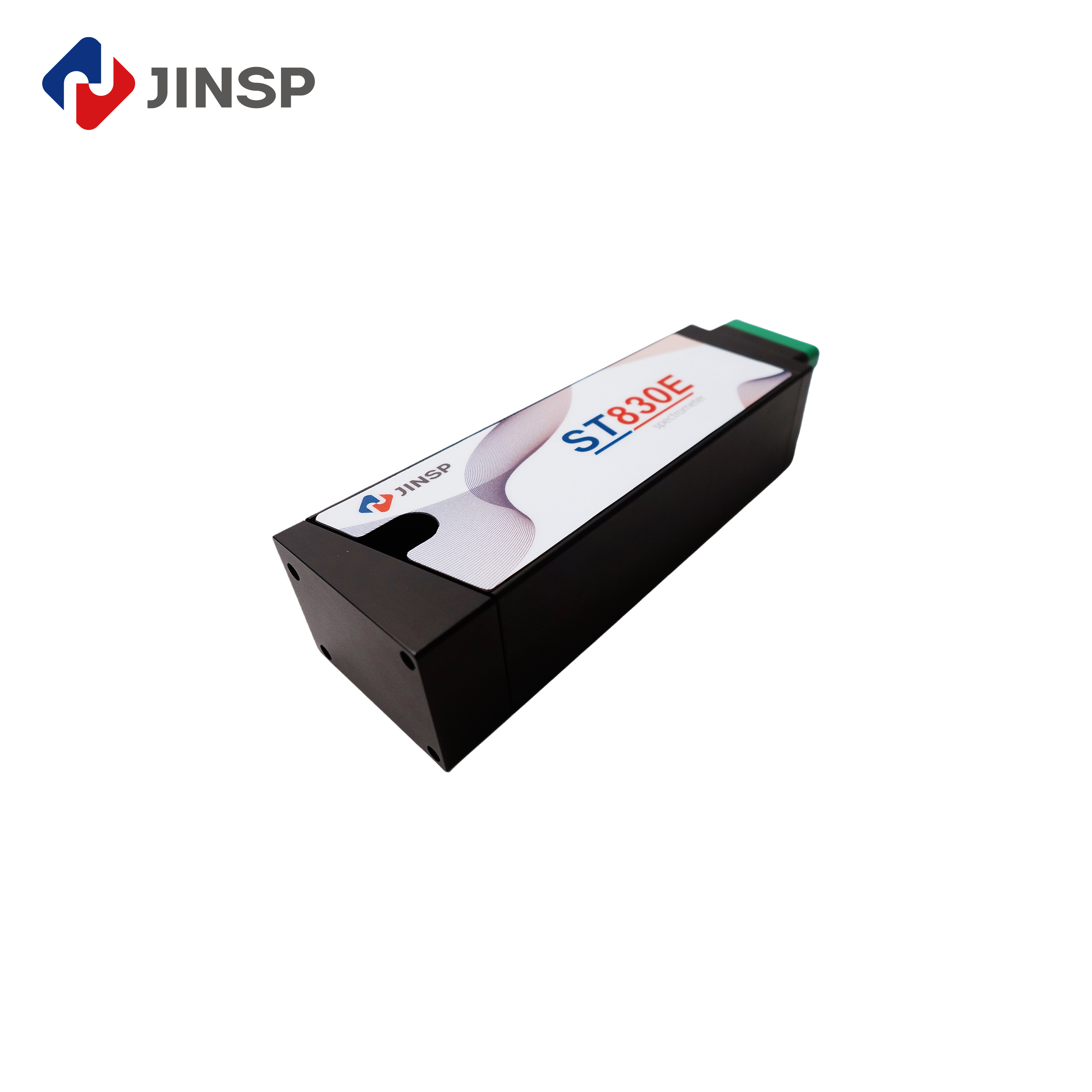

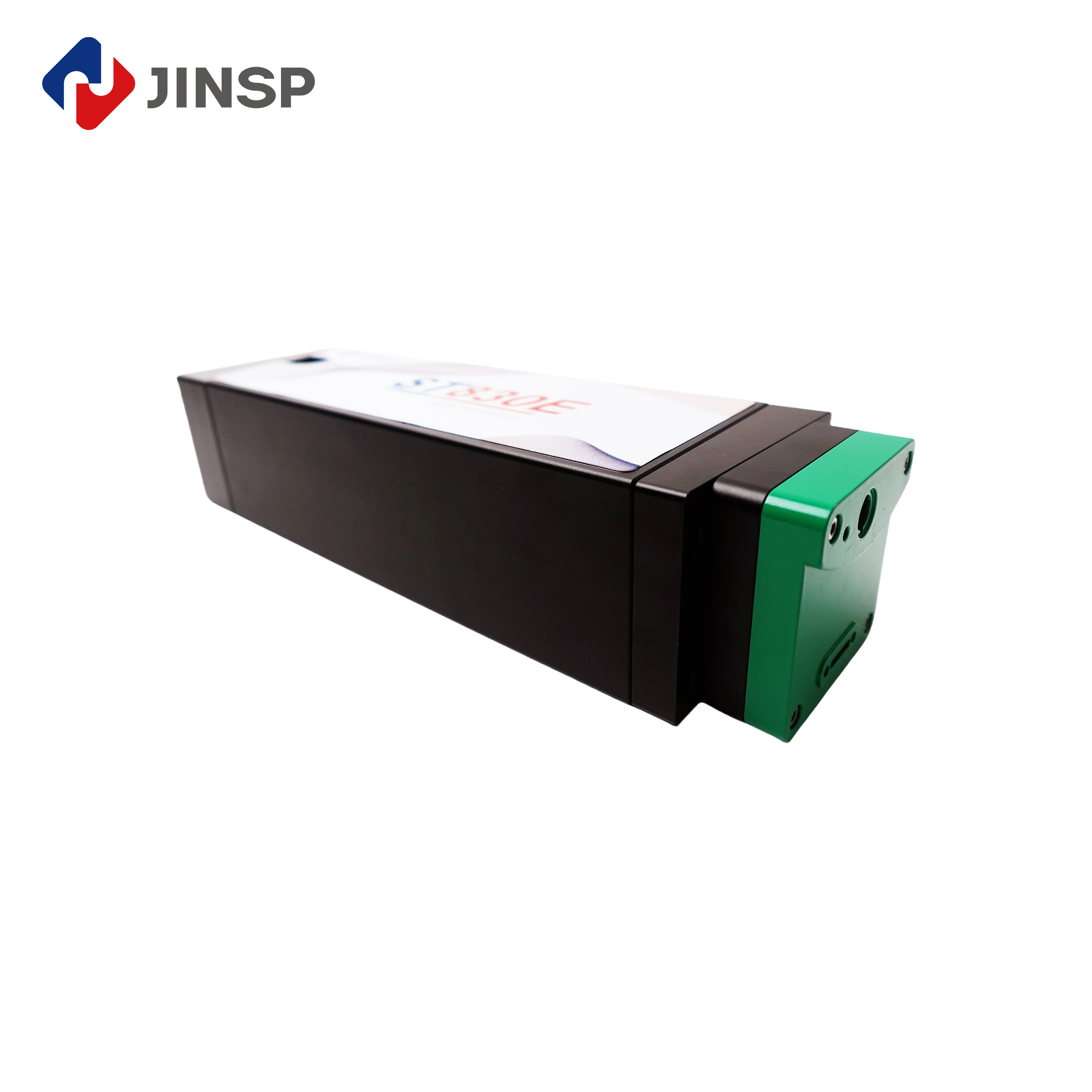

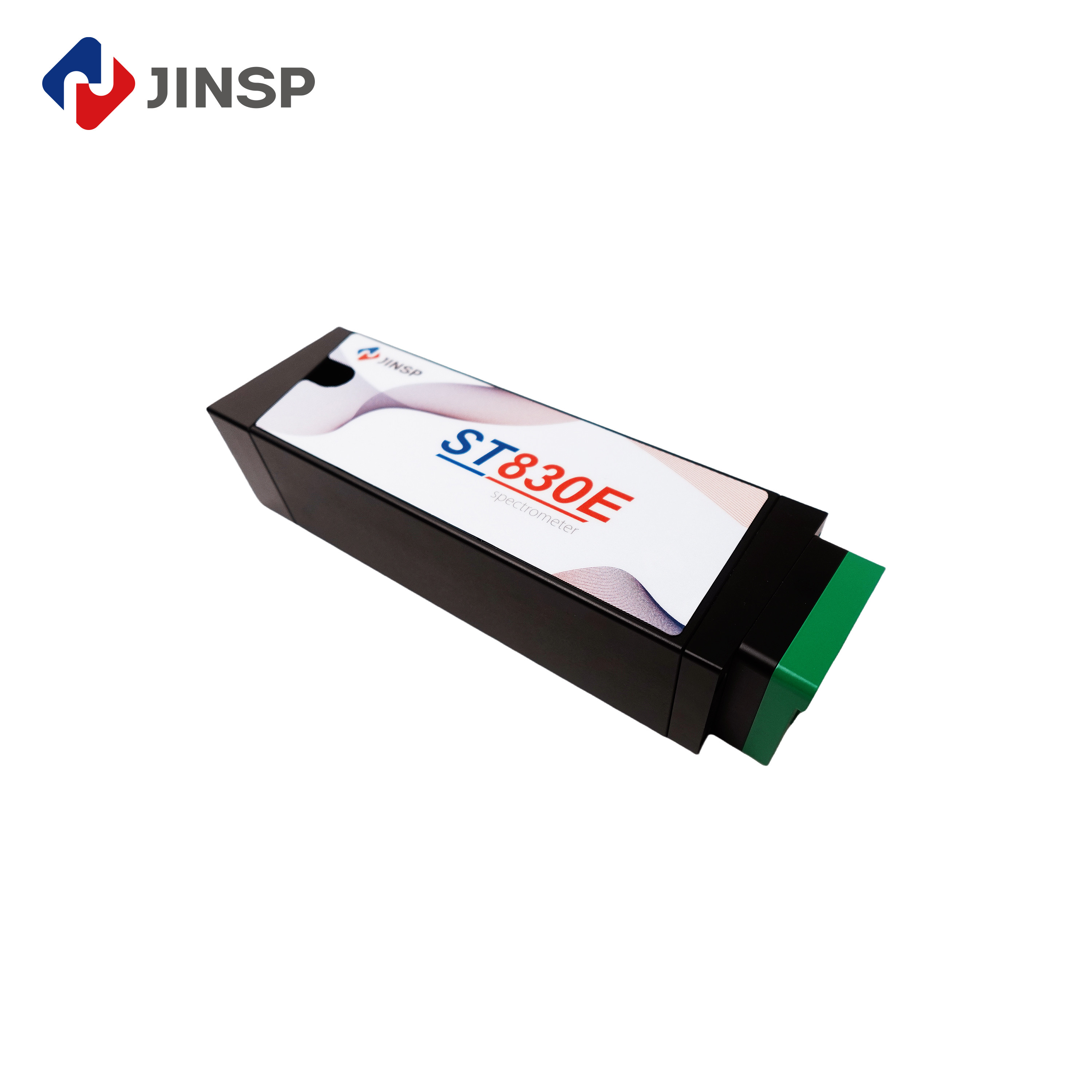

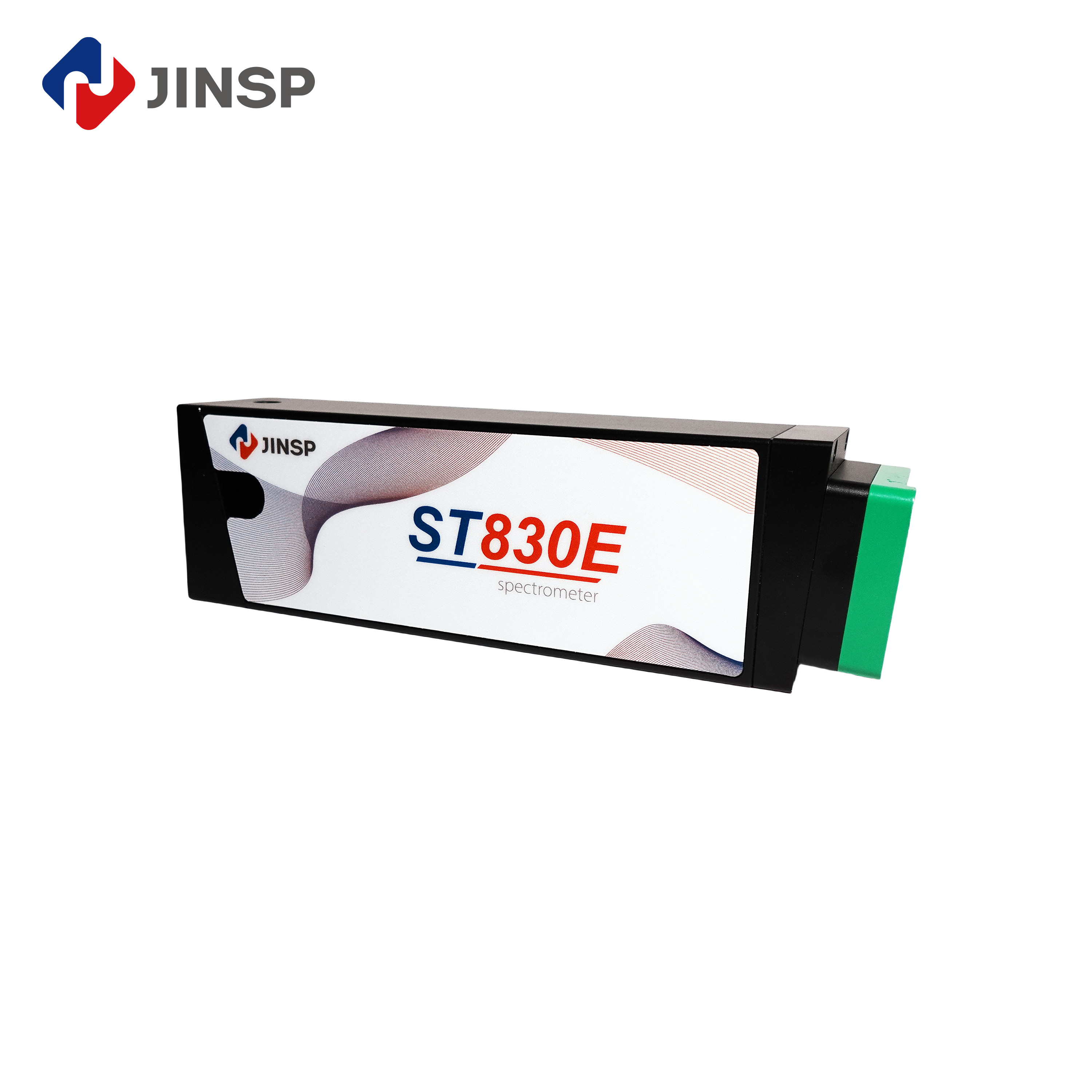

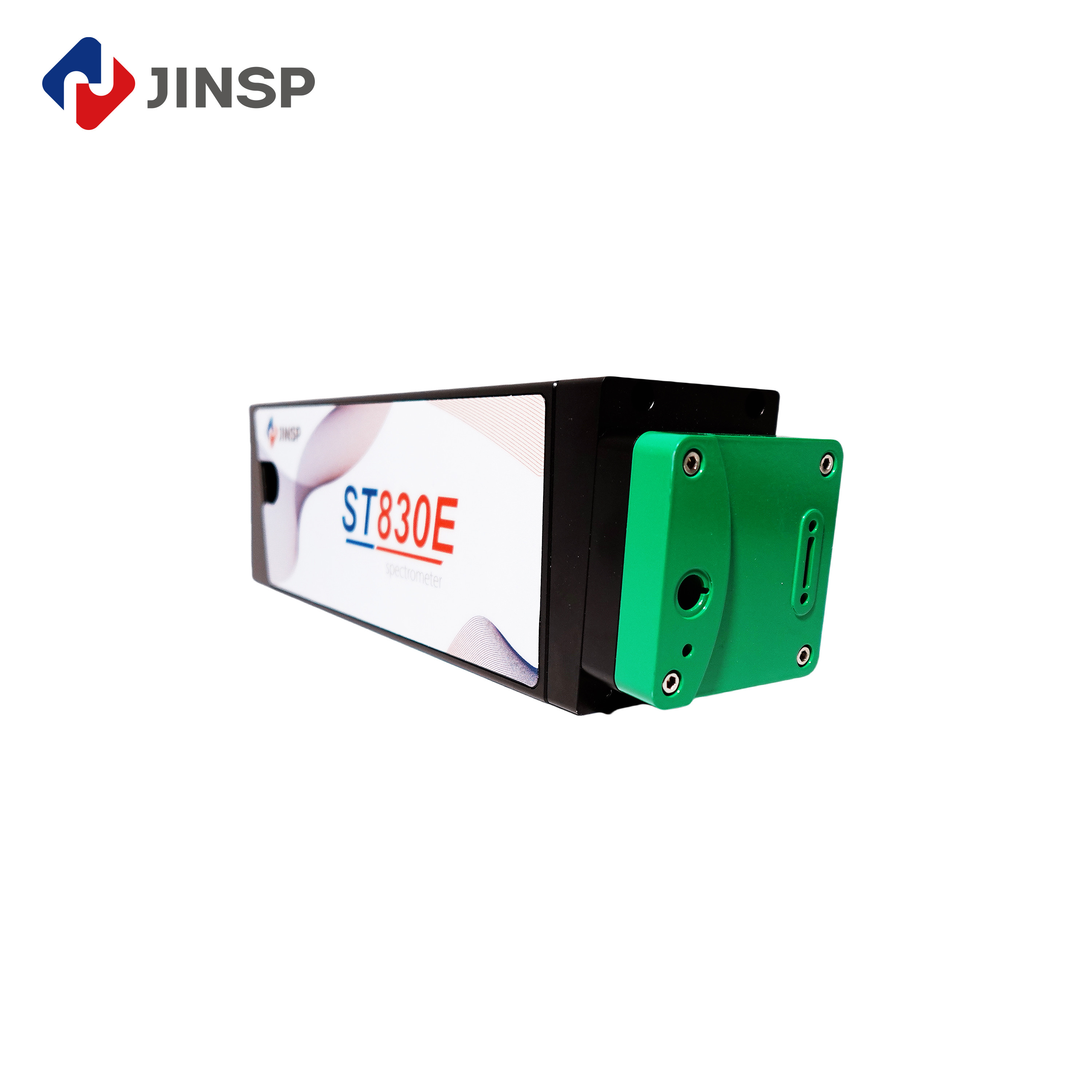

ST830E Optical Coherence Tomography (OCT) Spectrometer
The JINSP ST830E Spectrometer is a high-speed, stable commercial OCT spectrometer designed for high-resolution, high signal-to-noise ratio three-dimensional tomographic imaging and blood flow network imaging. Applications include corneal, crystalline lens, and retinal imaging, as well as imaging of the skin epidermis and dermal vascular network, and intracoronary endoscopy.
The ST830E offers an optional USB3.0 interface for direct laptop connection, or can be equipped with a Cameralink transmission interface providing a maximum line scanning speed of 250kHz.
Specifications
| Chip Type |
Linear array CMOS |
| Effective Pixel |
2048 pixels |
| Pixel Size |
10*200 μm |
| Optical Resolution |
0.07nm (depending on the wavelength range) |
| Wavelength Range |
790-930nm (customizable for different ranges based on requirements) |
| Dimensions |
275*80*60.5mm |
| Weight |
1.5kg |
Technical Characteristics
- Deep Imaging: Excellent roll-off performance enables imaging at deeper layers.
- Wavenumber Linearity: Special optical path design allows for equidistant wavenumber sampling on the hardware, enabling direct FFT (Fast Fourier Transform) and significantly reducing data processing complexity.
- High Maturity: Stable and mature process requiring no frequent calibration.
- Supports Customization: Wavelength range and camera can be customized according to requirements.
Typical Applications
Industrial OCT:
Laser Oscillation / Metal Cutting and Welding Inspection / Flatness Inspection of Electronic Display Screens
Medical OCT:
Vascular Imaging / Imaging of the Retina and Anterior Chamber of the Eye
Other OCT:
Detection of Uniformity in Multilayer Coatings / Real-time Monitoring of Crystal Structure Density
JINSP is a professional leading solution provider of molecular spectroscopy, particularly in Raman Spectroscopy for many years. Our product range includes:
- UV VIS NIR fiber optic spectrometers
- Desktop/portable, online Raman analyzers for laboratory or industrial liquid & gas analysis
- On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry
Frequently Asked Questions
Q1: This is the first time I use, is it easy to operate?
A1: We provide an English manual and guide video to teach spectrometer operation. Our technicians also offer professional technical operation meetings.
Q2: Can you offer an operation training?
A2: Your technicians can receive training at our factory. JINSP engineers can also provide local support including installation, training, debugging, and maintenance.
Q3: How to receive the best price in the shortest time?
A3: Please include details like wavelength, detector, effective pixels, and focal length in your inquiry. We will promptly send a detailed quotation to your email.
Q4: What about your quality assurance?
A4: Our quality inspection team thoroughly checks all goods before shipment. We can provide inspection pictures upon request.
