High Resolution Fiber Optic Spectrometers With Integrated Temperature Sensor

Contact Now

High Resolution Fiber Optic Spectrometers With Integrated Temperature Sensor

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C
Document:	Product Brochure PDF

Detail Information
Dimensions:	110mm95mm40.5mm	High Resolution:	M-shape C-T Optical Design
Wide Spectral Range:	Supports Customized Spectrum Range Of 200-1000nm	Weight:	310g
Fiber Input:	FC/PC Or SMA905	Power Consumption:	12 VDC, 1.5 A
Spectral Range:	350-1100 Nm	Detector Type:	Back-Illuminated CCD
Highlight:	High Resolution Fiber Optic Spectrometers , High Resolution fiber optic spectrum analyzer , Fiber Spectrometer with Temperature Sensor

Product Description

High Resolution Fiber Optic Spectrometers With Integrated Temperature Sensor

Key Specifications

Attribute	Value
Dimensions	110mm × 95mm × 40.5mm
Weight	310g
Fiber Input	FC/PC or SMA905
Power Consumption	12 VDC, 1.5 A
Spectral Range	350-1100 nm (customizable 200-1000nm)
Detector Type	Back-Illuminated CCD
Optical Design	M-shape C-T configuration

Advanced Technical Features

High resolution M-shape C-T optical design for precise measurements
2048 effective pixels for capturing subtle sample changes
Customizable entrance slit widths from 10μm to 200μm
Linear array CMOS detector (Hamamatsu S11639)
28.7mm × 0.2mm sensing area
Low-noise CMOS signal processing for high signal-to-noise ratio
USB and serial port data output for easy integration
Numerical aperture of 0.085 for versatile applications

Applications

Environmental monitoring (air/water quality)
Food and beverage quality control
Medical and pharmaceutical analysis
Material science characterization
Education and research applications
Industrial process monitoring

Product Details

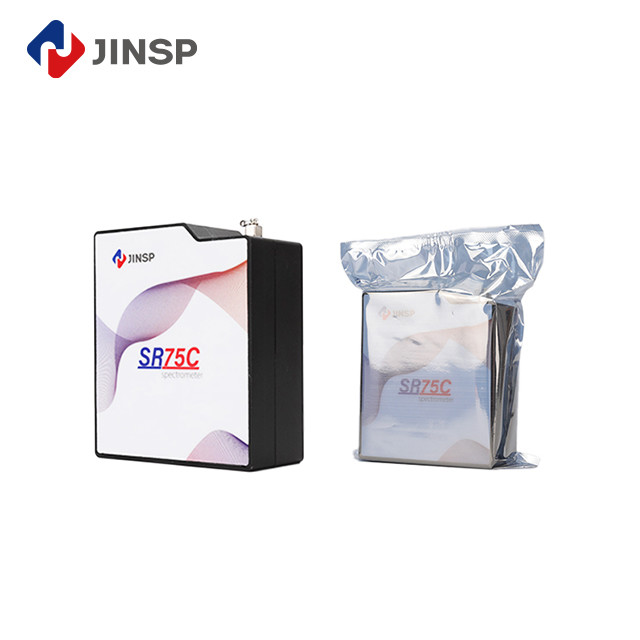

The JINSP SR75C Universal Compact Fiber Spectrometer combines portability with professional-grade performance. Its compact dimensions (110×95×40.5mm) and lightweight design (310g) make it ideal for both laboratory and field applications.

Support & Services

Our comprehensive support package includes installation guidance, calibration services, maintenance support, and troubleshooting assistance. We provide training sessions to optimize spectrometer performance and offer repair/replacement services to maintain instrument reliability.

Package Contents

Universal Compact Fiber Spectrometer
USB Cable
Instruction manual

Frequently Asked Questions

Q: What is the brand and model of this spectrometer?

A: The JINSP SR75C Universal Compact Fiber Spectrometer.

Q: Is the spectrometer certified?

A: Yes, it is CE certified and manufactured in China.

Q: What are the purchasing options?

A: Minimum order quantity is 1 unit with negotiable pricing. Payment options include T/T and Western Union. Delivery time is 30-50 working days with customizable packaging.
