SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights
SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights
SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights
Contact Now

SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : International Shipping Package Delivery Time : 30-40 working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/30-40 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50C
Document: Product Brochure PDF

Detail Information
Spectral Range: 200-1100 Nm Integration Time: 1 Ms - 60 S
Signal-to-Noise Ratio: 650:1(4ms） Dimensions: 76mm*65mm*38mm
Highlight:

SR50C Fiber Optic Spectrometer

,

Miniature Fiber Optic Spectrometer

,

Actionable Environmental Insights Spectrometer

Product Description

SR50C Miniature Fiber Optic Spectrometer
Transforms spectral analysis into actionable environmental insights with research-grade precision and eco-friendly design.
Key Specifications
Spectral Range 200-1100 nm
Integration Time 1 ms - 60 s
Signal-to-Noise Ratio 650:1 (4ms)
Dimensions 76mm × 65mm × 38mm
Weight 220g
Product Overview

The SR50C compact modular fiber optic spectrometer delivers precise spectral analysis from 200nm to 1100nm. Featuring 2048-pixel linear array detection and <3nm wavelength reproducibility, it provides accurate quantification across wide concentration ranges.

With 90% less energy consumption than conventional spectrometers, this eco-designed solution supports solar-powered deployments in remote locations. The plug-and-play interface simplifies operation while maintaining research-grade precision.

Technical Parameters
Detector Specifications
Chip Type Linear array CMOS, Hamamatsu S11639
Effective Pixel 2048
Pixel Size 14μm × 200μm
Sensing Area 28.7mm × 0.2mm
Optical Parameters
Numerical Aperture 0.14
Focal Length ≤ 50mm
Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm
Fiber Interface SMA905, free space
Electrical Parameters
Data Output Interface Type-C
ADC Bit Depth 16-bit
Power Supply DC 4.5V to 5.5V (type @5V)
Operating Current < 500mA
Product Models
Model Spectral Range (nm) Resolution (nm) Slit (μm)
SR50C-G01 200~1000 (UV-NIR) 3.5 / 2.4 / 1.5 50 / 25 / 10
SR50C-G03 350~870 (VIS) 2.5 / 2.0 / 1.2 50 / 25 / 10
SR50C-G04/G07/G08 200~550 (UV)
350~700 (VIS)
780~1050 (NIR)		 1.8 / 1.3 / 0.8 50 / 25 / 10
SR50C-G09/G10 200~450 (UV)
525~700 (VIS)		 1.0 / 0.6 / 0.3 50 / 25 / 10
Technical Advantages
  • Wide spectral range supporting 200-1100nm
  • High signal-to-noise ratio with low-noise CMOS processing
  • Compact and lightweight design for field applications
  • Energy efficient operation suitable for remote deployments
Applications
  • Detection of absorption, transmittance and reflectivity in UV-VIS-NIR
  • Light source and laser wavelength identification
  • Environmental monitoring (smoke and water quality)
  • LIBS, fluorescence spectrum, and Raman spectrum analysis

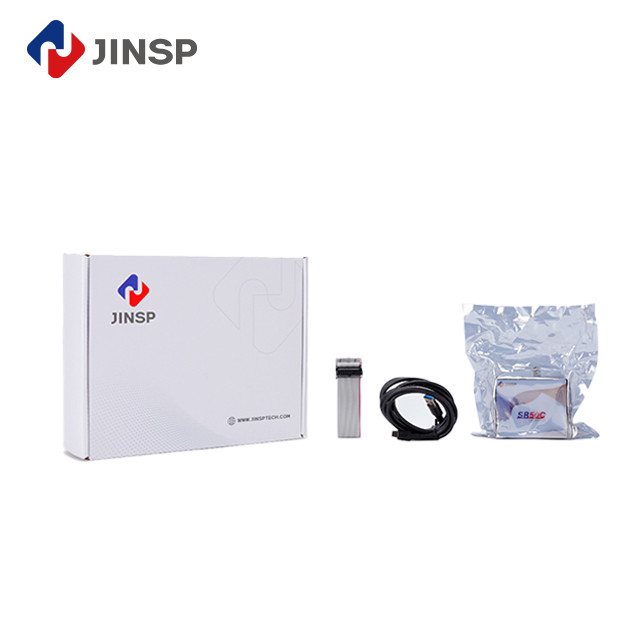

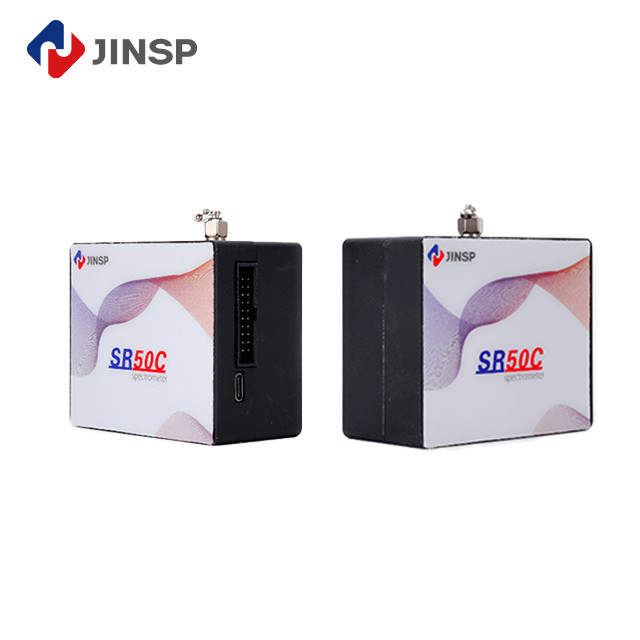

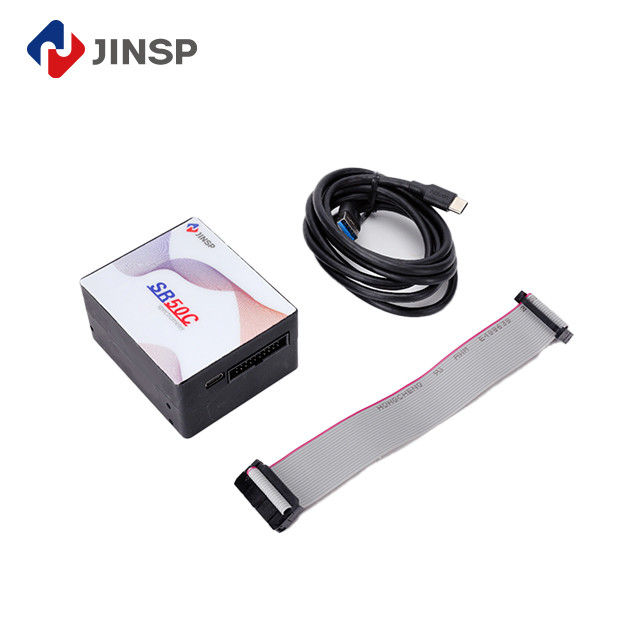

Product Images
SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights 0 SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights 1 SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights 2 SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights 3 SR50C Miniature Fiber Optic Spectrometer Transforms Spectral Analysis Into Actionable Environmental Insights 4
Company & Certifications

JINSP Company Limited has received numerous awards including the Geneva International Invention Award and China Patent Excellence Award. Our products comply with GB/T 40219-2021 "General Specification for Raman Spectrometer".

Certifications include:

  • ISO9001:2015, ISO14001:2015, and ISO45001:2018
  • CE Certification
  • EU ECAC certification
  • German ICT Security Testing
Frequently Asked Questions
Q: What is the brand name of this fiber spectrometer?

A: JINSP is the brand name of this fiber spectrometer.

Q: What is the model number of this fiber spectrometer?

A: The model number is SR50C.

Q: What certification does this fiber spectrometer have?

A: This spectrometer has CE certification among others.

Q: Where is this fiber spectrometer made?

A: This fiber spectrometer is made in China.

Q: What are the payment terms for this product?

A: Payment terms include T/T and Western Union. Prices are negotiable.
