Compact and Lightweight Miniature Fiber Optic Spectrometer Module JINSP SR50C with 200-1100 nm Spectral Range

Contact Now

Compact and Lightweight Miniature Fiber Optic Spectrometer Module JINSP SR50C with 200-1100 nm Spectral Range

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	30-50 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50C
Document:	Product Brochure PDF

Detail Information
Spectral Range:	200-1100 Nm	Fiber Interface:	SMA905, Free Space
Integration Time:	1 Ms - 60 S	Signal-to-Noise Ratio:	650:1(4ms）
Weight:	220g	Dimensions:	76mm65mm38mm
Highlight:	Compact Miniature Fiber Optic Spectrometer Module , Lightweight Miniature Fiber Optic Spectrometer Module

Product Description

200nm - 1100nm Miniature Fiber Optic Spectrometer Module JINSP SR50C

The compact and high-performing JINSP SR50C Miniature Fiber Optic Spectrometer is perfect for achieving reflection, transmission, and absorption spectra in the 200–1100nm range. It enables high-resolution spectral detection in the UV, Visible, and near-Infrared spectrum by varying the grating line density, which can be further improved with interchangeable grating slits.

Equipped with a fast, low-noise signal acquisition and processing circuit, the spectrometer ensures obtaining spectra with the highest signal-to-noise ratio (SNR). Its excellent optical design and blazed diffraction grating ensure a high luminous flux and enhance sensitivity to weak signals.

The spectrometer features an internal integrated temperature sensor capable of real-time monitoring of ambient temperature. Combined with an internal temperature drift compensation algorithm, it can achieve the minimum temperature drift within the working temperature range.

Technical Parameters:

Detector	Chip Type	Linear array CMOS, Hamamatsu S11639
	Eﬀective Pixel	2048
	Pixel Size	14μm *200μm
	Sensing Area	28.7mm *0.2mm
Optical Parameters	Numerical Aperture	0.14
	Focal Length	≤ 50mm
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm
	Resolution	See list of product models for details
	Fiber Interface	SMA905, free space
Electrical Parameters	Integration Time	1ms-60s
	Signal-to-Noise Ratio	650:1(4ms)
	Data Output Interface	Type-C
	ADC Bit Depth	16-bit
	Power Supply	DC 4.5V to 5.5V (type @5V)
	Operating Current	< 500mA
Others	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	79mm68mm42mm
	Weight	220g

List of Product Models:

Model	Spectral Range (nm)	Resolution (nm)	Slit (μm)
SR50C-G01	200~1000( UV-NIR)	3.5	50
		2.4	25
		1.5	10
SR50C-G03	350~870(VIS)	2.5	50
		2.0	25
		1.2	10
SR50C-G04 SR50C-G07 SR50C-G08	200~550(UV) 350~700(VIS) 780~1050(NIR)	1.8	50
		1.3	25
		0.8	10
SR50C-G09 SR50C-G10	200~450(UV) 525~700(VIS)	1.0	50
		0.6	25
		0.3	10

Features:

Wide Spectral Range
Customized spectral range supporting 200-1100nm
High Signal-to-Noise Ratio
Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio
High Luminous Flux
Integrated with cylindrical mirror to improve the luminous flux
Low Temperature Drift

Integrated Temperature Sensor and Temperature Drift
Compensation Algorithm

Applications:

Supports detection of absorption, transmittance and reflectivity of ultraviolet, visible light and near infrared radiations.
Light source and laser wavelength identification.
OEM product module:

Environmental protection industry (smoke and water quality monitoring),

LIBS, fluorescence spectrum,

Raman spectrum.

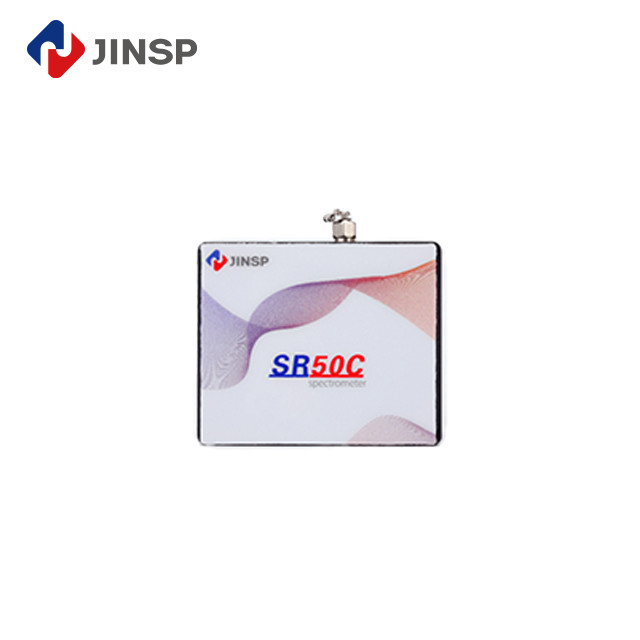

Compact and Lightweight Miniature Fiber Optic Spectrometer Module JINSP SR50C with 200-1100 nm Spectral Range 0

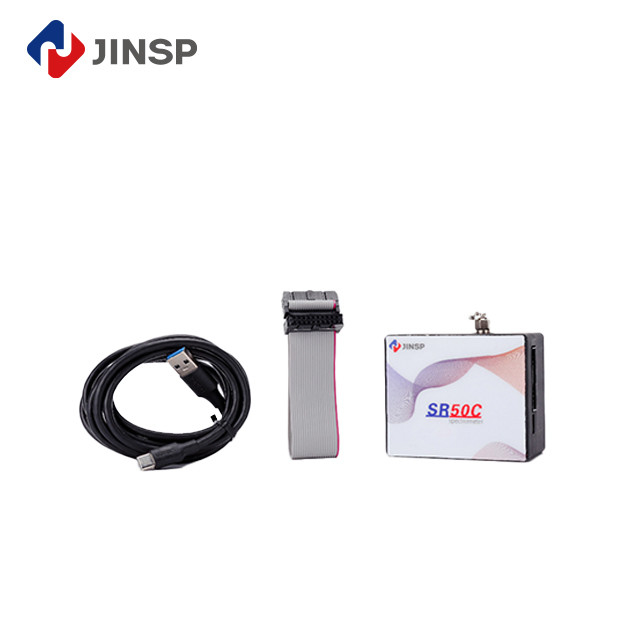

Compact and Lightweight Miniature Fiber Optic Spectrometer Module JINSP SR50C with 200-1100 nm Spectral Range 1

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.GB/T 40219-2021 "General Specification for Raman Spectrometer".

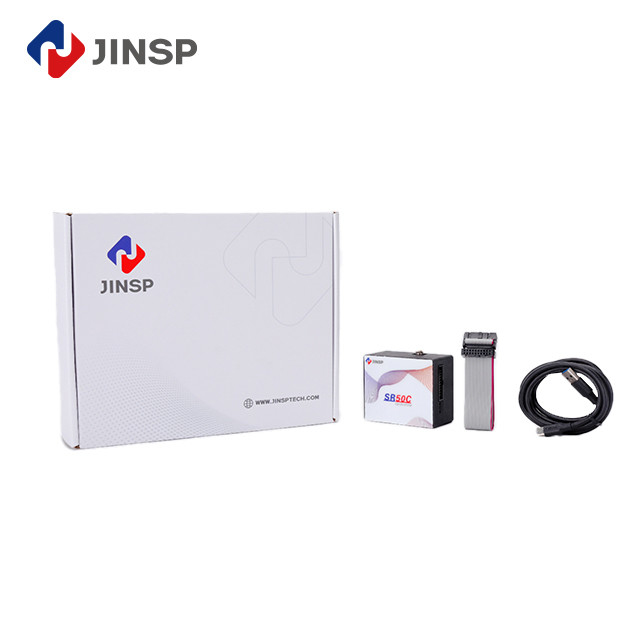

Compact and Lightweight Miniature Fiber Optic Spectrometer Module JINSP SR50C with 200-1100 nm Spectral Range 3

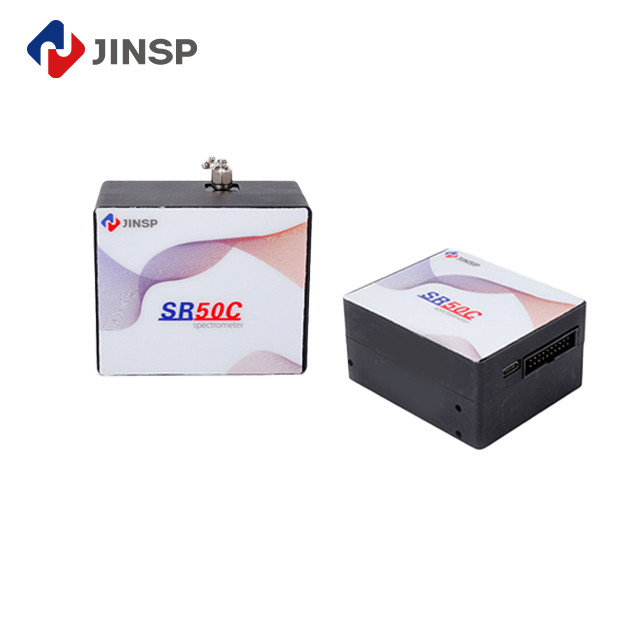

Compact and Lightweight Miniature Fiber Optic Spectrometer Module JINSP SR50C with 200-1100 nm Spectral Range 4

Compact and Lightweight Miniature Fiber Optic Spectrometer Module JINSP SR50C with 200-1100 nm Spectral Range 5

FAQ:

Q: What is the brand name of this fiber spectrometer?

A: JINSP is the brand name of this fiber spectrometer.

Q: What is the model number of this fiber spectrometer?

A: The model number of this fiber spectrometer is SR50C.

Q: What certification does this fiber spectrometer have?

A: This fiber spectrometer has CE certification.

Q: Where is this fiber spectrometer made?

A: This fiber spectrometer is made in China.

Q: What are the payment terms for this product?

A: The payment terms for this product are T/T and Western Union. Prices are negotiable.
