Compact CMOS Spectrometer Compact And High-Performance Solution For Spectral Analysis

Contact Now

Compact CMOS Spectrometer Compact And High-Performance Solution For Spectral Analysis

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	30-40 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/30-40 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50C
Document:	Product Brochure PDF

Detail Information
Spectral Range:	200-1100 Nm	Integration Time:	1 Ms - 60 S
Signal-to-Noise Ratio:	650:1(4ms）	Dimensions:	76mm65mm38mm
Highlight:	High Performance Compact CMOS Spectrometer , High Performance CMOS Spectrometer , Spectral Analysis Compact CMOS Spectrometer

Product Description

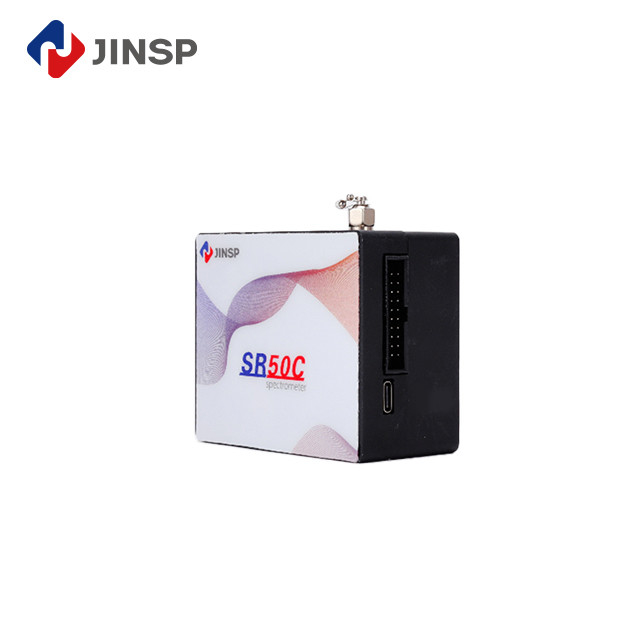

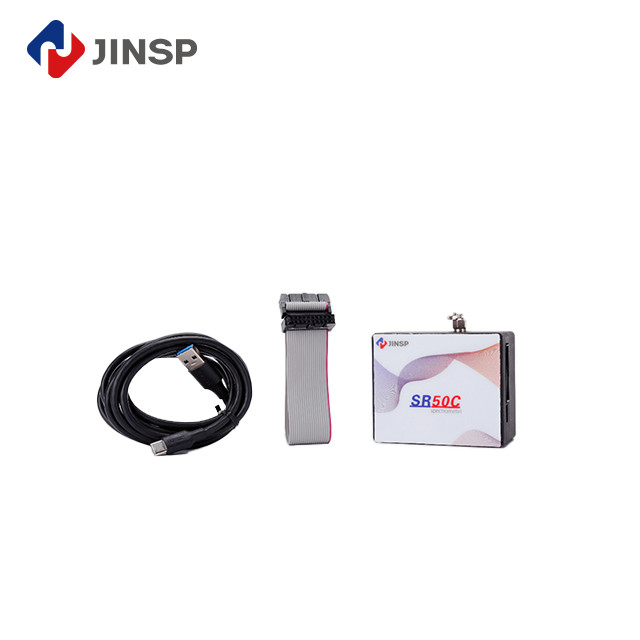

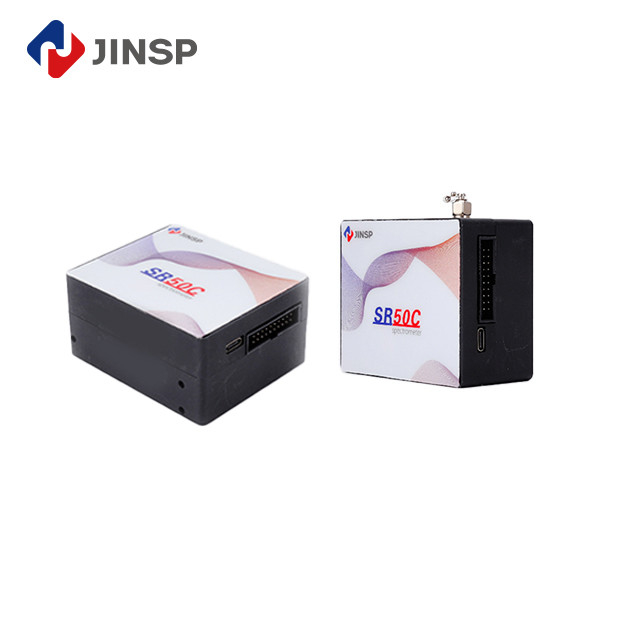

Compact CMOS Spectrometer

A compact, high-performance solution for spectral analysis with wide 200-1100nm range, designed for integration in water quality analysis devices and harsh environmental conditions.

Key Specifications

Spectral Range	200-1100 nm
Integration Time	1 ms - 60 s
Signal-to-Noise Ratio	650:1 (4ms)
Dimensions	76mm × 65mm × 38mm

Product Overview

The SR50C Compact Modular Fiber Optic Spectrometer features IP65-rated housing with MIL-STD shock resistance for harsh environments. Its adaptive grating automatically optimizes resolution (0.3-5nm selectable) for various water matrices from turbid wastewater to clear drinking supplies.

The embedded AI-powered spectral library accelerates identification of phosphorus compounds and pollutants, providing lab-grade accuracy in portable field instruments. This reduces sample transportation costs and analysis delays by 80% compared to conventional methods.

Technical Specifications

Detector Specifications
Chip Type	Linear array CMOS, Hamamatsu S11639
Effective Pixel	2048
Pixel Size	14μm × 200μm
Sensing Area	28.7mm × 0.2mm

Optical Parameters
Numerical Aperture	0.14
Focal Length	≤ 50mm
Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm
Fiber Interface	SMA905, free space

Product Models

Model	Spectral Range (nm)	Resolution (nm)	Slit (μm)
SR50C-G01	200~1000 (UV-NIR)	3.5 / 2.4 / 1.5	50 / 25 / 10
SR50C-G03	350~870 (VIS)	2.5 / 2.0 / 1.2	50 / 25 / 10
SR50C-G04/G07/G08	200~550 (UV) 350~700 (VIS) 780~1050 (NIR)	1.8 / 1.3 / 0.8	50 / 25 / 10
SR50C-G09/G10	200~450 (UV) 525~700 (VIS)	1.0 / 0.6 / 0.3	50 / 25 / 10

Custom spectral ranges available upon request

Applications

Detection of absorption, transmittance and reflectivity in UV, visible light and near infrared radiation
Light source and laser wavelength identification
Environmental protection (smoke and water quality monitoring)
LIBS, fluorescence spectrum, and Raman spectrum analysis

Certifications & Awards

JINSP Company Limited holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. Our products have received:

National Science and Technology Commission's Scientific Achievement Certificate
China Patent Excellence Award
Geneva International Invention Award
Beijing New Technology and New Product Certificate
Zhu Liangyi Analytical Instrument Innovation Award

Complies with GB/T 40219-2021 "General Specification for Raman Spectrometer".

Frequently Asked Questions

What is the brand name of this fiber spectrometer?

JINSP is the brand name of this fiber spectrometer.

What is the model number of this fiber spectrometer?

The model number is SR50C.

What certification does this fiber spectrometer have?

This spectrometer has CE certification and can be provided with additional certifications upon request.

Where is this fiber spectrometer made?

This spectrometer is manufactured in China.

What are the payment terms for this product?

Payment terms include T/T and Western Union. Prices are negotiable based on order volume and configuration.
