200nm~1100nm Optical Fiber Spectroscopy SR50C High Performance

Contact Now

200nm~1100nm Optical Fiber Spectroscopy SR50C High Performance

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	30-50 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/30-50 working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	SR50C
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	200nm ~ 1100nm, Support Customizing	Detector Chip Type:	Linear Array CMOS, Hamamatsu S11639
Weight:	220g	Fiber Input:	FC/PC Or SMA905
PIntegration Time:	1ms-60s	Signal-to-Noise Ratio:	650:1(4ms）
Highlight:	optical fiber spectroscopy SR50C , 1100nm optical fiber spectroscopy , SR50C fiber optic spectroscopy

Product Description

200nm~1100nm Optical Fiber Spectroscopy SR50C High Performance

Key Specifications

Wavelength Range	200nm ~ 1100nm (customizable)
Detector Chip Type	Linear array CMOS, Hamamatsu S11639
Weight	220g
Fiber Input	FC/PC or SMA905
Integration Time	1ms-60s
Signal-to-Noise Ratio	650:1 (4ms)

Product Overview

The JINSP SR50C Miniature Fiber Optic Spectrometer delivers high-performance spectral analysis in the 200–1100nm range, ideal for reflection, transmission, and absorption measurements across UV, Visible, and near-Infrared spectra.

Core Features

High-resolution detection with adjustable grating line density

Fast, low-noise signal processing for optimal SNR (650:1)

Blazed diffraction grating for enhanced luminous flux

Integrated temperature sensor with drift compensation

Compact design (79×68×42mm) weighing only 220g

Technical Parameters

Optical Specifications

Numerical Aperture	0.14
Focal Length	≤ 50mm
Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm

Electrical Specifications

Data Output Interface	Type-C
ADC Bit Depth	16-bit
Power Supply	DC 4.5V to 5.5V

Model Variations

Model	Spectral Range	Resolution	Slit Width
SR50C-G01	200~1000nm (UV-NIR)	1.5-3.5nm	10-50μm
SR50C-G03	350~870nm (VIS)	1.2-2.5nm	10-50μm
SR50C-G04/G07/G08	200~1050nm (UV-VIS-NIR)	0.8-1.8nm	10-50μm

Applications

Light source characterization (absorption/transmission/reflectance)

Environmental monitoring (air/water quality analysis)

Laser-Induced Breakdown Spectroscopy (LIBS)

Fluorescence and Raman spectroscopy

Scientific research and industrial process control

Technical Advantages

Wide Spectral Range: Customizable 200-1000nm detection

High SNR: Low-noise CMOS processing circuit

Enhanced Sensitivity: Cylindrical mirror for high luminous flux

Temperature Stability: Integrated sensor with drift compensation

Compact Design: Portable without performance compromise

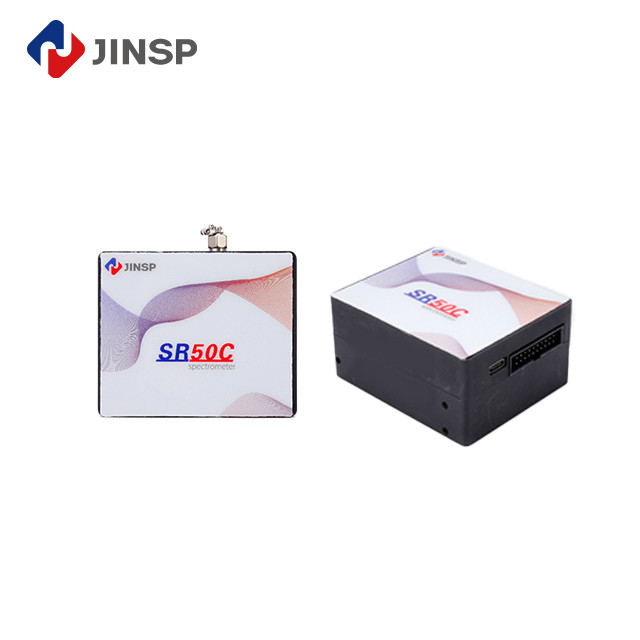

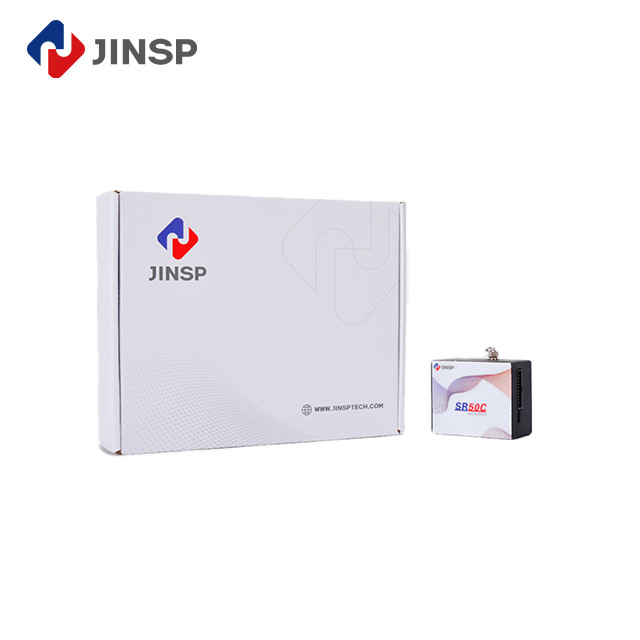

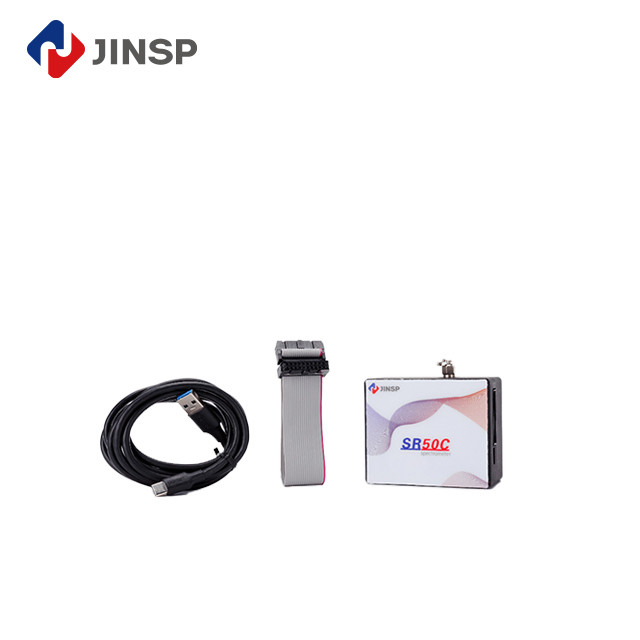

Product Images

Company Certification

JINSP Company Limited holds multiple prestigious awards including:

National Science and Technology Commission Achievement Certificate

China Patent Excellence Award

Geneva International Invention Award

Compliance with GB/T 40219-2021 Raman Spectrometer Standards

Frequently Asked Questions

How to receive the best price quickly?

Provide detailed requirements (wavelength, detector specs, etc.) in your inquiry for an immediate quotation.

What if the spectrometer has problems?

Our technicians provide free repairs within the 1-year warranty period after problem diagnosis.

What quality assurance is provided?

All products undergo rigorous inspection before shipment, with documentation available.

Is training available?

We offer factory training or on-site support from JINSP engineers for installation and operation.
