Low Noise Miniature Fiber Optic Spectrometer for 200nm-1100nm Wavelength Range and Compact Dimensions of 110mm*95mm*43mm

Contact Now

Low Noise Miniature Fiber Optic Spectrometer for 200nm-1100nm Wavelength Range and Compact Dimensions of 110mm95mm43mm

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	200nm-1100nm	Detector Type:	Linear Array CMOS, Hamamatsu S11639
Optical Design:	Type M C-T Light Path	Grating Slits:	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Weight:	310g	Dimension:	110mm95mm43mm
Interface:	USB 2.0	Optical Interface:	FC/PC Or SMA905
Highlight:	Low Noise Miniature Fiber Optic Spectrometer , Compact Miniature Fiber Optic Spectrometer , 200nm-1100nm Miniature Fiber Optic Spectrometer

Product Description

Low Noise Miniature Fiber Optic Spectrometer for 200nm-1100nm Wavelength Range

Product Specifications

Attribute	Value
Wavelength Range	200nm-1100nm
Detector type	Linear array CMOS, Hamamatsu S11639
Optical design	Type M C-T light path
Grating slits	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Weight	310g
Dimension	110mm95mm43mm
Interface	USB 2.0
Optical Interface	FC/PC or SMA905

Product Overview

The JINSP SR75C Miniature Fiber Optic Modular Spectrometer combines compact dimensions (110×95×43mm) with exceptional performance across a broad 200-1000nm spectral range. This versatile instrument features a high-sensitivity linear array CMOS detector capable of ultraviolet, visible, and near-infrared measurements.

Key advantages include USB 2.0 connectivity for seamless industrial integration, customizable grating slits (10-200μm), and an M-shape C-T optical design for high resolution measurements. The lightweight 310g unit operates with minimal power consumption (<500mA at 5V).

Technical Parameters

Detector Specifications
Detector	Chip Type	Linear array CMOS, Hamamatsu S11639
Effective Pixel	2048
Pixel Size	14μm × 200μm
Sensing Area	28.7mm × 0.2mm
Optical Parameters
Optical Design	M Type C-T light path
Numerical Aperture	0.085
Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Electrical Parameters
Integration Time	1ms-60s
Signal-to-Noise Ratio	650:1 (4ms)
Data Output Interface	USB 2.0 or serial port
ADC Bit Depth	16-bit
Power Supply	DC 4.5V to 5.5V (type @5V)
Operating Current	< 500mA
Environmental Specifications
Operating Temperature	10°C ~ 40°C
Storage Temperature	-20°C ~ 60°C
Operating Humidity	<90%RH (no condensation)

Available Models

Model	Spectral Range (nm)	Resolution (nm)	Slit (μm)
SR75C-G02	510~1000 (VIS-NIR)	0.8 (25μm slit) 0.5 (10μm slit)	25 10
SR75C-G04	200~450 (UV)	0.3-0.5	25
SR75C-G06	330~570 (VIS)	0.3-0.5	25
SR75C-G08	550~750 (VIS) 750-900 (NR)	0.2-0.3	10
SR75C-G09	180~340 (UV)	0.3	25
SR75C-G10	500~600 (VIS)	0.15~0.2	10

* Customization available for other spectral ranges

Key Features

Broad spectral coverage from 200-1000nm (UV-VIS-NIR)
High signal-to-noise ratio (650:1 at 4ms integration)
Compact and lightweight design (110×95×43mm, 310g)
Low-noise CMOS signal processing circuitry
Precision M-shape C-T optical design
Flexible USB 2.0 interface for easy integration
Customizable grating slits (10-200μm options)

Typical Applications

Absorptance, transmittance, and reflectance measurements in UV-VIS-NIR spectra
LIBS (Laser-Induced Breakdown Spectroscopy) for geological and mineral analysis
Water quality monitoring (organic substances and dissolved oxygen levels)
Environmental protection applications
Industrial process monitoring and control

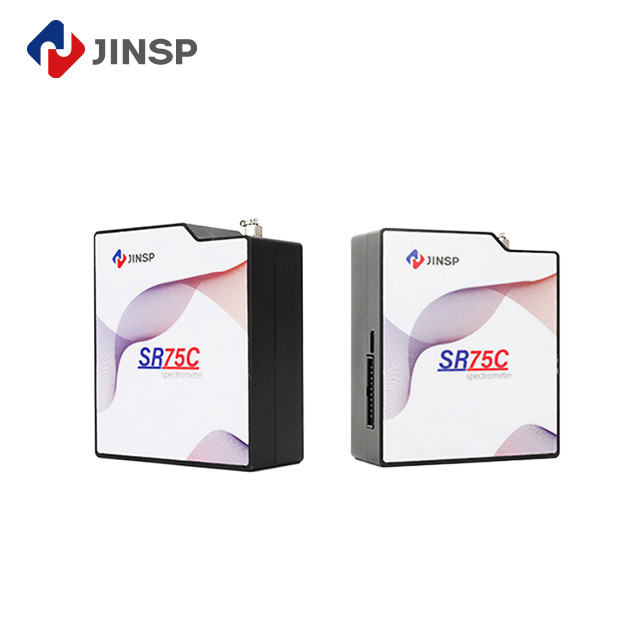

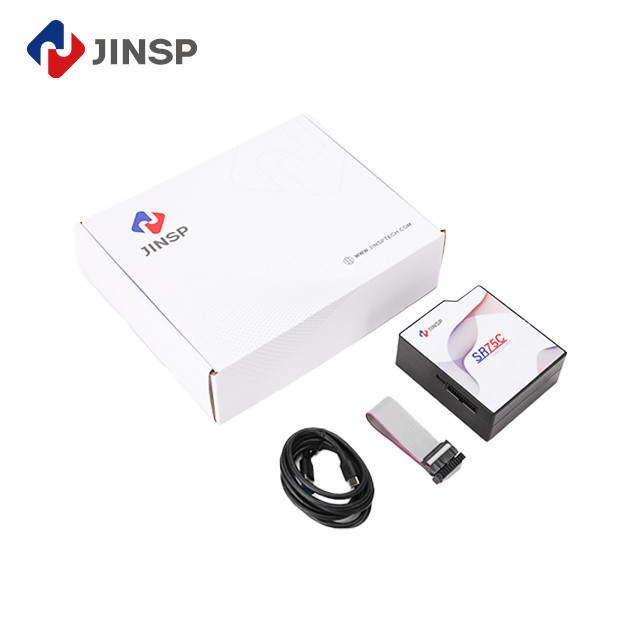

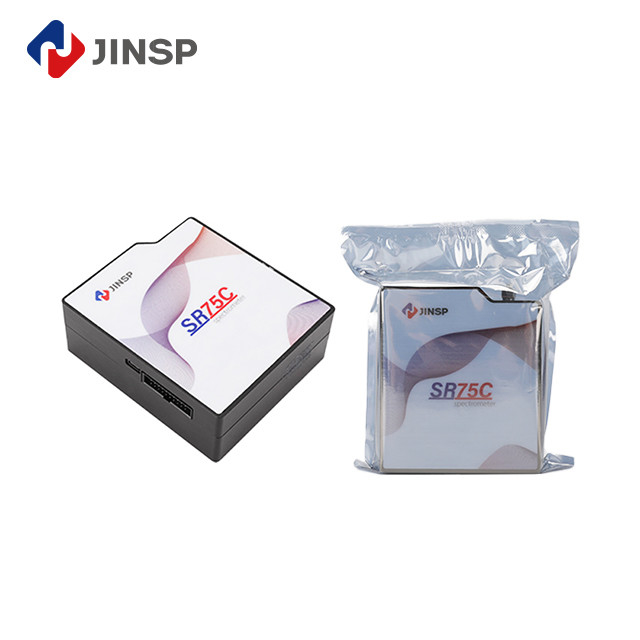

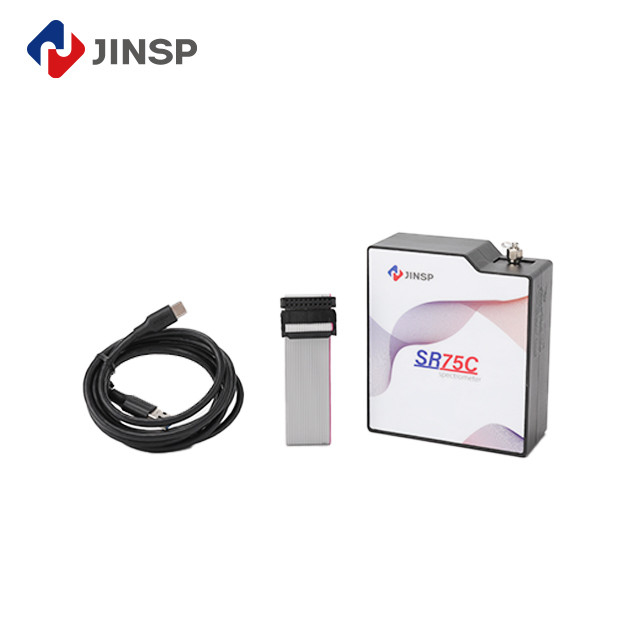

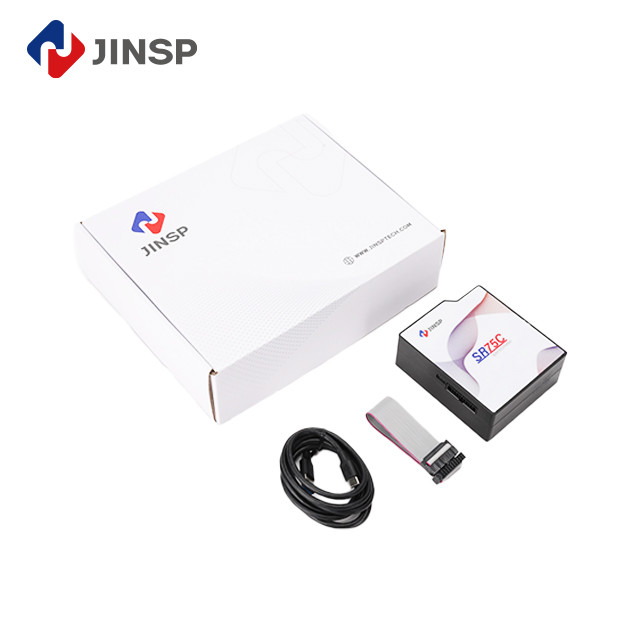

Product Images

Manufacturer Information

JINSP Company Limited has received numerous industry recognitions including:

National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate
China Patent Excellence Award
Geneva International Invention Award
Beijing New Technology and New Product Certificate
"Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award

The company complies with GB/T 40219-2021 "General Specification for Raman Spectrometer" standards.

Frequently Asked Questions

Q1: Is the price of this product negotiable?

A1: Yes, the price of this product is negotiable.

Q2: What are the payment terms for this product?

A2: The payment terms for this product are T/T and Western Union.

Q3: What is the supply ability for this product?

A3: The supply ability for this product is 100 PCS/70-90 days.

Q4: How long does it take to deliver this product?

A4: The delivery time for this product is 30-50 working days.
