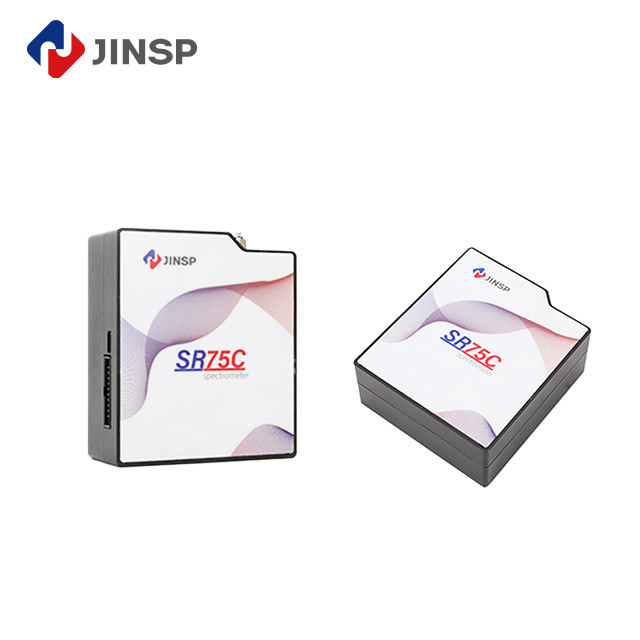

Customized Fiber Optic Spectrometer For Flue Gas Monitoring And Identification

Contact Now

Customized Fiber Optic Spectrometer For Flue Gas Monitoring And Identification

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C
Document:	Product Brochure PDF

Detail Information
High Resolution:	M-shape C-T Optical Design	Dimensions:	110mm95mm40.5mm
Wide Spectral Range:	Supports Customized Spectrum Range Of 200-1000nm	Optical Design:	M Type C-T Light Path
Chip Type:	Linear Array CMOS, Hamamatsu S11639	Sensing Area:	28.7mm *0.2mm
Highlight:	Customized Fiber Optic Spectrometer , Customized optical fiber spectrometer , Flue Gas Monitoring Fiber Optic Spectrometer

Product Description

Customized Fiber Optic Spectrometer For Flue Gas Monitoring And Identification

Key Specifications

Attribute	Value
High Resolution	M-shape C-T optical design
Dimensions	110mm × 95mm × 40.5mm
Wide Spectral Range	Customizable 200-1000nm
Optical Design	M Type C-T light path
Chip Type	Linear array CMOS, Hamamatsu S11639
Sensing Area	28.7mm × 0.2mm

Product Overview

The Universal Compact Fiber Spectrometer is a high-performance instrument designed for precise flue gas monitoring and identification. With its customizable entrance slit widths (10μm to 200μm) and lightweight design (310g), this spectrometer is ideal for both laboratory and field applications.

Key Features

High Signal-to-Noise Ratio: Low-noise CMOS signal processing circuit
Low Temperature Drift: Integrated temperature sensor with compensation algorithm
Wide Spectral Range: Customizable from 200-1000nm
Compact Dimensions: 110mm × 95mm × 40.5mm
High Resolution: M-shape C-T optical design
Effective Pixels: 2048

Technical Specifications

Parameter	Value
Product Name	Universal Compact Fiber Spectrometer
Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Effective Pixel	2048
Weight	310g

Applications

This versatile spectrometer is suitable for:

Laboratory research and analysis
Field measurements and monitoring
Flue gas identification and analysis
Environmental monitoring applications

Support & Services

Our comprehensive support includes:

Expert technical support from experienced engineers
Detailed product documentation and user manuals
Calibration and repair services
Customization options
Training programs

Frequently Asked Questions

Q1: What is the brand name of the compact fiber spectrometer?

A1: The brand name is JINSP.

Q2: What is the model number?

A2: The model number is SR75C.

Q3: What certifications does it have?

A3: CE certified.

Q4: Where is it manufactured?

A4: Manufactured in China.

Q5: What is the minimum order quantity?

A5: Minimum order is 1 unit, with negotiable pricing for larger orders.

Q6: What are the payment terms?

A6: T/T and Western Union.

Q7: What is the supply ability?

A7: 100 units per 70-90 days.
