Compact Powerful Universal Fiber Optic Spectrometer 12VDC Rugged Design

Contact Now

Compact Powerful Universal Fiber Optic Spectrometer 12VDC Rugged Design

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50C
Document:	Product Brochure PDF

Detail Information
Detector Type:	Linear Array CMOS, Hamamatsu S11639	Power Supply:	12 V DC
Optical Interface:	FC/PC Or SMA905	Integration Time:	1ms-60s
Measurement Range:	200-1100 Nm	Dimensions:	76mm65mm36mm
Spectral Resolution:	0.3 Nm-3.5nm	Weight:	220g
Highlight:	Powerful fiber optic spectrometer , Fiber Optic Spectrometer 12VDC , Rugged Design optical fiber spectrometer

Product Description

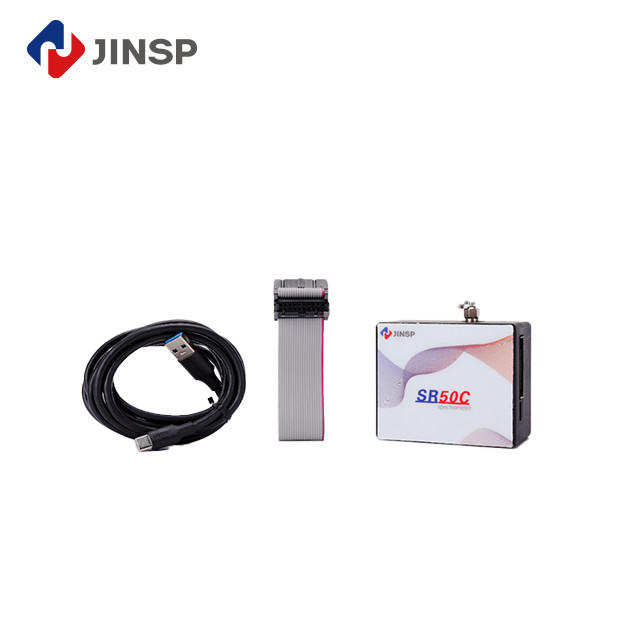

Compact Powerful Universal Fiber Optic Spectrometer

Key Specifications

Attribute	Value
Detector Type	Linear array CMOS, Hamamatsu S11639
Power Supply	12 V DC
Optical Interface	FC/PC or SMA905
Integration Time	1ms-60s
Measurement Range	200-1100 nm
Dimensions	76mm × 65mm × 36mm
Spectral Resolution	0.3 nm-3.5nm
Weight	220g

Product Overview

The Universal Compact Fiber Spectrometer features a high-quality optical system for precise measurements across a broad spectral range (200-1100 nm). Its rugged design and compact dimensions make it ideal for both laboratory and field applications.

Technical Features

High-sensitivity CCD detector for reliable measurements
User-friendly interface with comprehensive software package
Advanced data analysis tools for spectral interpretation
Durable construction for harsh environments
USB 2.0 interface for easy connectivity
Compact size (76mm × 65mm × 35mm) for portability

Applications

This versatile spectrometer is suitable for:

Chemical analysis and material characterization
Biomedical research and diagnostics
Environmental monitoring
Food and beverage quality control
Pharmaceutical analysis
Energy sector applications

Support & Services

Technical assistance for setup and operation
Regular software upgrades
Calibration and maintenance services
Comprehensive documentation
Training resources

Packaging & Shipping

The spectrometer is securely packaged in a corrugated cardboard box with bubble wrap and foam inserts for protection during transit. Each unit includes:

User manual
Required cables and accessories

Shipping is via reputable courier with tracking provided. Delivery typically occurs within 5-7 business days.

Frequently Asked Questions

Brand and model information

Brand: JINSP | Model: SR50C

Certification

CE certified

Manufacturing origin

Manufactured in China

Order details

Minimum order: 1 unit | Price negotiable | Payment terms: T/T, Western Union

Supply and delivery

Supply capacity: 100 units/70-90 days | Delivery time: 30-50 working days
