Linear Array InGaAs Near Infrared Fiber Optic Spectrum Analyzer Customizable

Contact Now

Linear Array InGaAs Near Infrared Fiber Optic Spectrum Analyzer Customizable

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Technical Parameters:	Product Name: Near Infrared Non-cooled Spectrometer, Wavelength Range: 900-1700nm, Chip Type: Linear Array InGaAs, Entrance Slit Width: 5μm, 10μm, 25μm, 50μm (customizable), Incident Light Interface: SMA905, Free Space, Integration Time: 1ms-5s, Operating	Product Details:	The JINSP SR50R17 Is A Compact, Cost-effective 900nm~1700nm Near-infrared Spectrometer, Using A Non-cooled InGaAs Sensor With High Sensitivity And Resolution.Typical Applications:Moisture Content Measurement, Wastewater Testing.Detection Of Substances Such
Integration Time:	1ms-5s	Company Profile And Exhibition:	JINSP Company Limited Originates From Tsinghua University And Has 17 Years Of Experience In Developing Spectroscopic Technology.As A Leading Supplier Of Spectroscopic Technology, JINSP Technology Offers Over Twenty Spectroscopic Products Across Various Fie
Wavelength Range:	900-1700nm	Product Category:	Fiber Optic Spectrometers
Sensitive Area:	6.4mm*0.25mm	Effective Pixels:	128 (256 Optional)
Highlight:	Near Infrared Fiber Optic Spectrum Analyzer , Fiber Optic Spectrum Analyzer Customizable , Customizable optical fiber spectrometer

Product Description

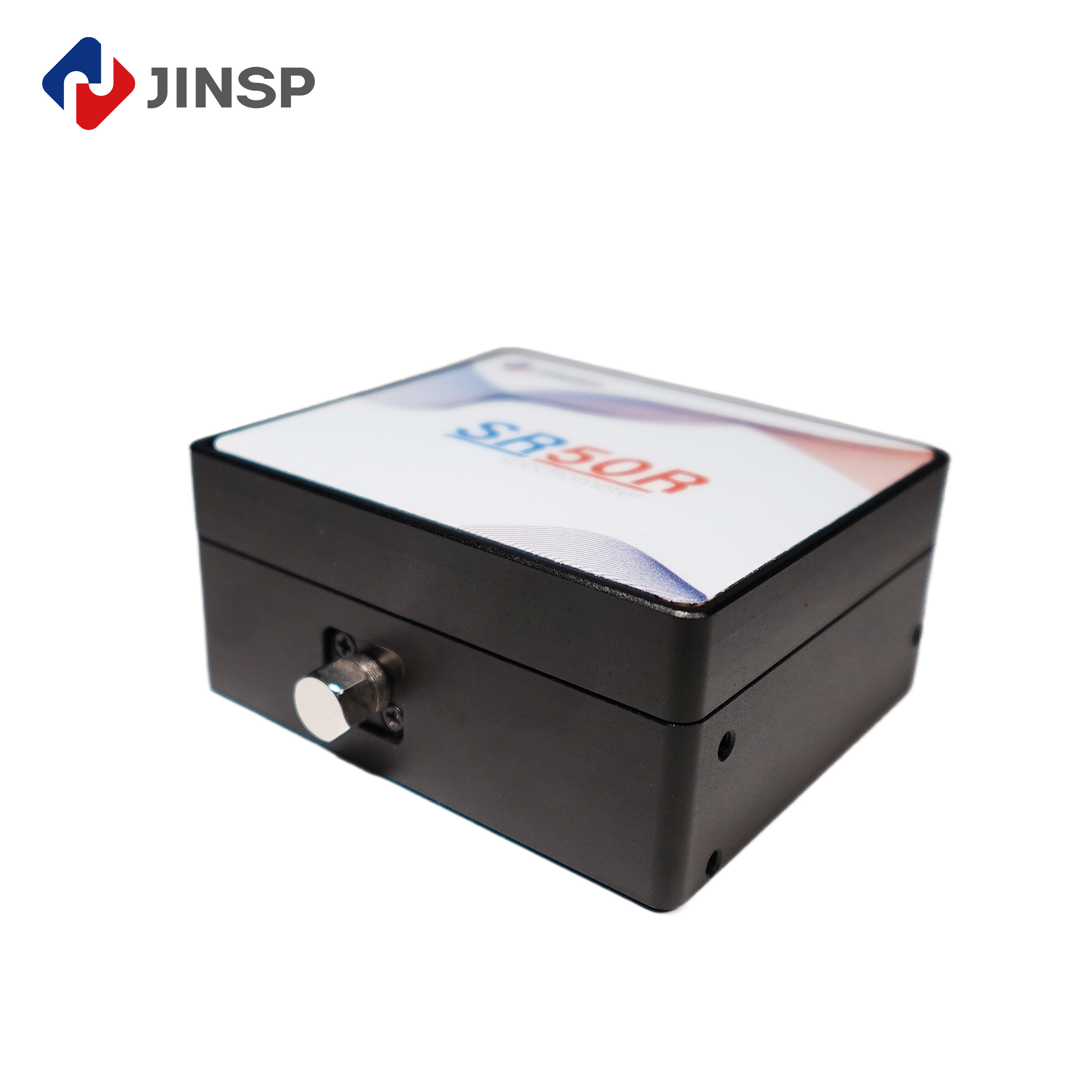

Linear Array InGaAs Near Infrared Fiber Optic Spectrum Analyzer

Key Features

Compact and cost-effective design
High resolution with customizable entrance slit widths (5μm, 10μm, 25μm, 50μm)
Gold film plated lens surface for high near-infrared reflection efficiency
Multiple interface options (USB2.0 and UART)
SMA905 fiber input for free space optical reception

Technical Specifications

Product Name	High-Performance Near-infrared Fiber Spectrometer
Wavelength Range	900-1700nm
Chip Type	Linear Array InGaAs
Entrance Slit Width	Customizable (5μm, 10μm, 25μm, 50μm)
Sensitive Area	6.4mm × 0.25mm
Effective Pixels	128 (256 Optional)
Integration Time	1ms-5s
Data Output Interface	USB2.0, UART
Dimensions	77mm × 67mm × 36mm
Weight	0.4KG

Applications

This spectrometer is ideal for various industrial and scientific applications including:

Moisture content measurement and wastewater testing
Food, pharmaceutical, and chemical analysis
Agriculture and environmental monitoring (soil analysis, plant health)
Water quality testing
Molecular structure identification and analysis
Quality control and research applications

Support and Services

Our comprehensive support package includes:

Installation and setup assistance
Training and education
Customization and integration services
Maintenance and repairs
Calibration and validation
Software updates and upgrades

Product Packaging

Each spectrometer comes with:

Near-infrared Fiber Spectrometer unit
USB cable
User manual

Frequently Asked Questions

Q: What is the brand name of the Near-infrared Fiber Spectrometer?

A: The brand name is JINSP.

Q: What is the model number?

A: The model number is SR50R17.

Q: What certifications does the spectrometer have?

A: The product is CE certified.

Q: Where is it manufactured?

A: The spectrometer is manufactured in China.

Q: What are the payment terms?

A: We accept T/T and Western Union payments.
