Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration
Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration
Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration
Contact Now

Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Customized Packaging Delivery Time : 30-50 working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR75C
Document: Product Brochure PDF

Detail Information
Wavelength Range: 200nm-1100nm Detector Type: Linear Array CMOS, Hamamatsu S11639
Optical Design: Type M C-T Light Path Grating Slits: 10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Dimension: 110mm*95mm*43mm Optical Interface: FC/PC Or SMA905
Highlight:

LIBS system integration Miniature Spectrometer Module

,

2048 Pixel Miniature Spectrometer Module

,

CMOS Sensor Miniature Spectrometer Module

Product Description

Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration
Product Specifications
Attribute Value
Wavelength Range 200nm-1100nm
Detector type Linear array CMOS, Hamamatsu S11639
Optical design Type M C-T light path
Grating slits 10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Dimension 110mm*95mm*43mm
Optical Interface FC/PC or SMA905

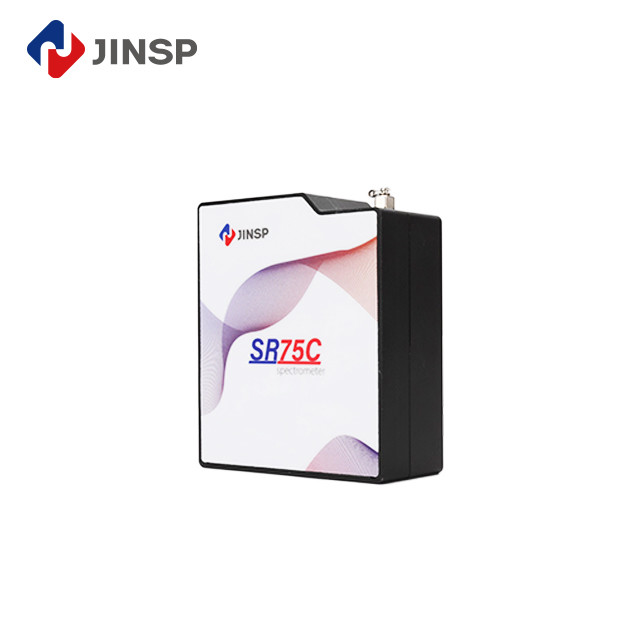

Miniature Fiber Optic Modular Spectrometer JINSP SR75C
The JINSP multi-purpose compact fiber optic spectrometer combines small size with high performance and versatility. Ideal for various spectral measurement systems, it enables reflection, transmission, and absorption spectra analysis in the 200nm to 1100nm range.
Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration 0
This spectrometer features industry-leading diffraction blazed grating and optical design for high luminous flux and enhanced weak signal detection. With interchangeable diffraction gratings, it achieves high-resolution spectral detection across UV, visible, and near-infrared bands. The 2048-pixel high quantum efficiency CMOS chip and professional signal processing circuit deliver optimal spectral signal-to-noise ratio.
An integrated temperature sensor monitors ambient conditions in real-time, while the temperature drift compensation algorithm minimizes drift within the operating range.
No Item Description
1 Chip Type Linear array CMOS, Hamamatsu S11639
2 Effective Pixel 2048
3 Sensing Area 28.7mm *0.2mm
4 Optical Design M Type C-T light path
5 Numerical Aperture 0.085
6 Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm (customizable)
7 Dimensions 110mm*95mm*40.5mm
8 Weight 310g
Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration 1
Technical Characteristics
  • Wide Spectral Range: Supports customized spectrum range of 200-1000nm
  • High Signal-to-Noise Ratio: Low-noise CMOS signal processing circuit with excellent performance
  • High Resolution: M-shape C-T optical design
Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration 2
Typical Applications
  • LIBS (Laser-Induced Breakdown Spectroscopy): Essential for geological detection and mining activities, analyzing chemical composition of soil and minerals through high-energy laser pulses and plasma spectral analysis.
  • Water Quality and Environmental Protection: Enables online detection and continuous monitoring of organic substances and dissolved oxygen levels in water bodies for environmental assessment.
  • Flue Gas Analysis: Monitors and identifies components in industrial emissions for environmental compliance and safety.
Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration 3
Company Recognition
JINSP Company Limited has received numerous awards including the National Science and Technology Commission's Scientific Achievement Certificate, China Patent Excellence Award, Geneva International Invention Award, and Beijing New Technology Certificate. Products comply with GB/T 40219-2021 "General Specification for Raman Spectrometer".
Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration 4 Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration 5 Linear Array CMOS Sensor 2048 Pixel Miniature Spectrometer Module For LIBS System Integration 6
Frequently Asked Questions
Is the price of this product negotiable?
Yes, the price of this product is negotiable.
What are the payment terms for this product?
The payment terms for this product are T/T and Western Union.
What is the supply ability for this product?
The supply ability for this product is 100 PCS/70-90 days.
How long does it take to deliver this product?
The delivery time for this product is 30-50 working days.
