200nm~1100nm High Resolution Compact Spectrometer Module for Industrial Integration

Contact Now

200nm~1100nm High Resolution Compact Spectrometer Module for Industrial Integration

Minimum Order Quantity :	1	Price :	Negotiable

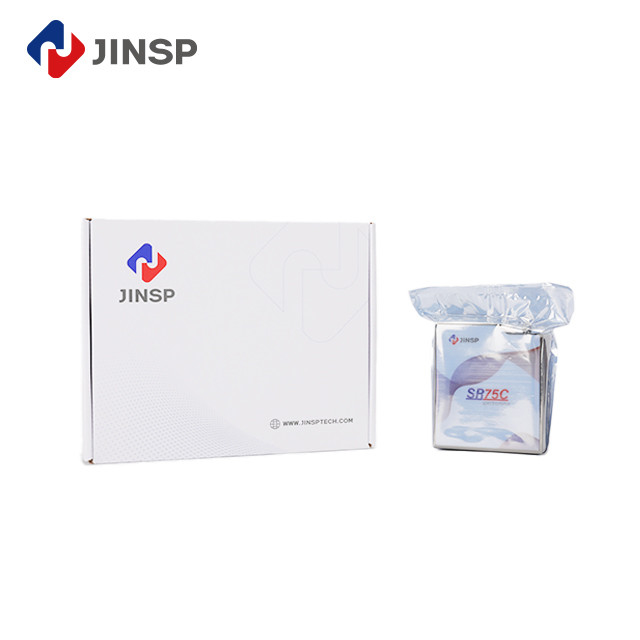

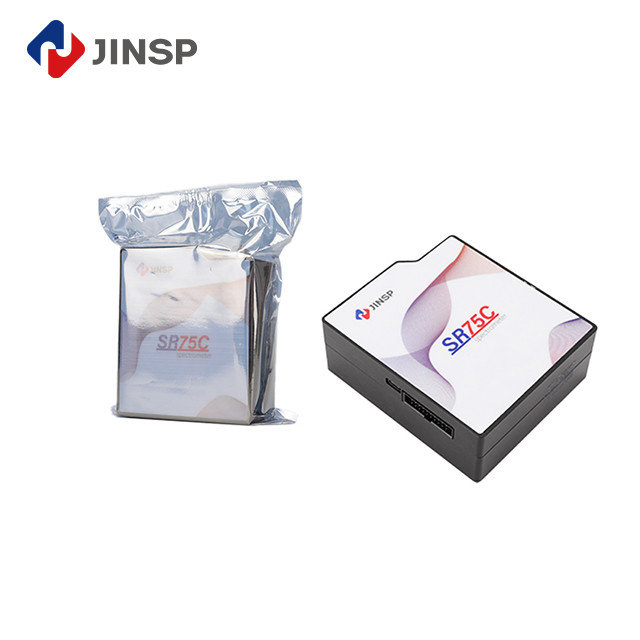

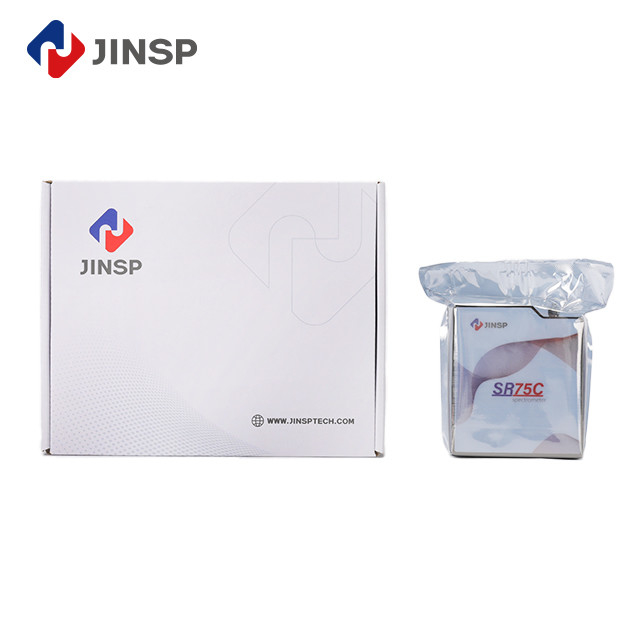

Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	SR75C
Document:	Product Brochure PDF

Detail Information
Signal-To-Noise Ratio:	1000:1	Integration Time:	1 Ms - 60 S
Waverange:	200nm ~1000nm	Fiber Connector:	FC/PC Or SMA905
Detector Pixels:	2048	Power Supply:	5 VDC
Highlight:	High Resolution Compact Spectrometer , 1100nm Compact Spectrometer , 200nm Industrial Spectrometer

Product Description

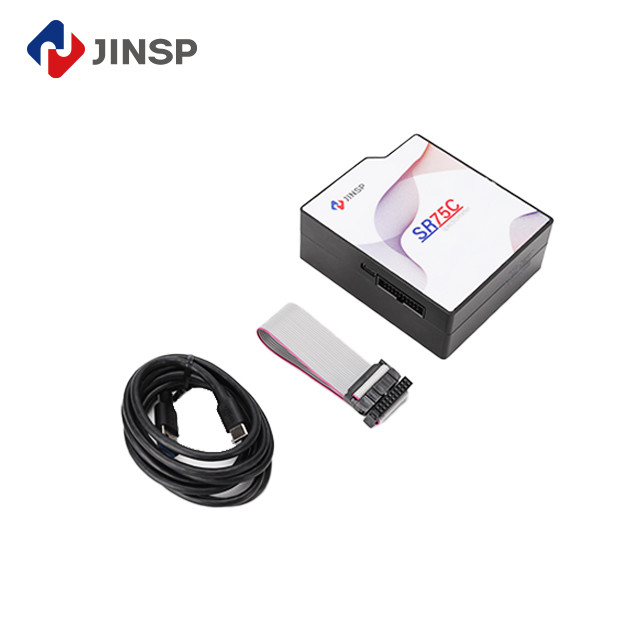

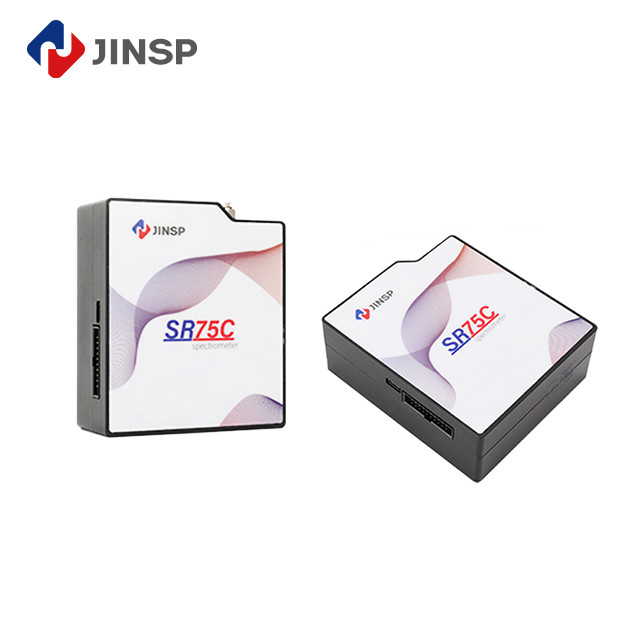

200nm~1100nm High Resolution Compact Spectrometer Module for Industrial Integration

Key Specifications

Signal-To-Noise Ratio	1000:1
Integration Time	1 ms - 60 s
Wavelength Range	200nm ~1000nm
Fiber Connector	FC/PC or SMA905
Detector Pixels	2048
Power Supply	5 VDC

Product Overview

The Universal Compact Fiber Spectrometer is a high-performance modular spectrometer powered by CMOS technology, offering exceptional flexibility for industrial applications. Its compact design and intuitive software interface enable precise spectral analysis across a broad 200-1100nm wavelength range with resolution up to 0.1nm.

Technical Parameters

Product Name	Universal Compact Fiber Spectrometer
Product Type	CMOS Fiber Optic Modular Spectrometers
Integration Type	Modular Spectrometers for Industrial Integration
Wavelength Range	200-1100nm
Resolution	0.2-10nm
Detector	CMOS linear image sensor
Dimensions	96mm x 62mm x 20mm
Weight	140g

Applications

The SR75C compact spectrometer module is ideal for diverse industrial and research applications:

Material analysis in chemical and pharmaceutical industries
Environmental monitoring of air, water, and soil pollutants
Food and beverage nutritional analysis and quality control
Medical research and diagnostic applications

Support & Services

Our comprehensive support ensures optimal spectrometer performance:

Technical support via email or phone
On-site installation and training
Calibration and maintenance services
Custom integration solutions

Ordering Information

Brand: JINSP (Model SR75C)
CE Certified | Made in China
Minimum Order: 1 unit
Negotiable pricing
Payment Terms: T/T, Western Union
Delivery: 30-50 working days

Frequently Asked Questions

What is the brand and model of this spectrometer?

Brand: JINSP | Model: SR75C

Is this product certified?

Yes, CE certified

What are the delivery terms?

30-50 working days with customized packaging
