Optical Fiber Spectrometer High Resolution Spectrum Analysis Mini Spectrometer SMA-905
Optical Fiber Spectrometer High Resolution Spectrum Analysis Mini Spectrometer SMA-905
Optical Fiber Spectrometer High Resolution Spectrum Analysis Mini Spectrometer SMA-905 Optical Fiber Spectrometer High Resolution Spectrum Analysis Mini Spectrometer SMA-905
Contact Now

Optical Fiber Spectrometer High Resolution Spectrum Analysis Mini Spectrometer SMA-905

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Customized Packaging Delivery Time : 30-50working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50C
Document: Product Brochure PDF

Detail Information
Spectral Resolution: 0.1-10 Nm Pixel Size: 14μm *200μm
Fiber Input Interface: SMA-905, Free Space Model: SR50C Fiber Spectrometer
Wavelength Range: 200nm ~ 1100nm, Support Customizing Fiber Connector: FC/PC
Data Output Interface: USB 2.0 Or Serial Port Operating Humidity: ＜90%RH (no Condensation)
Highlight:

Mini Spectrometer Fiber Spectrometer

,

Optical Fiber Spectrometer

,

High Resolution Fiber Spectrometer

Product Description

Optical Fiber Spectrometer High Resolution Spectrum Analysis Mini Spectrometer SMA-905
Product Specifications
Attribute Value
Spectral Resolution 0.1-10 nm
Pixel Size 14μm *200μm
Fiber Input Interface SMA-905, free space
Model SR50C Fiber spectrometer
Wavelength Range 200nm ~ 1100nm, support customizing
Fiber Connector FC/PC
Data Output Interface USB 2.0 or serial port
Operating Humidity ＜90%RH (no condensation)
Product Description

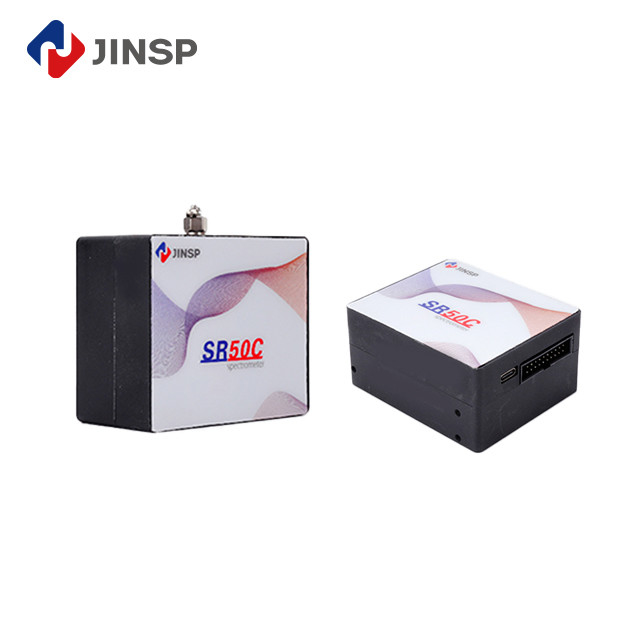

The JINSP SR50C Miniature Fiber Optic Spectrometer is a compact, high-performance instrument designed for reflection, transmission, and absorption spectra analysis in the 200–1100nm range. It provides high-resolution spectral detection across UV, Visible, and near-Infrared spectrums with adjustable grating line density and interchangeable grating slits for enhanced performance.

Featuring a fast, low-noise signal acquisition and processing circuit, the spectrometer delivers exceptional signal-to-noise ratio (SNR). Its advanced optical design with blazed diffraction grating ensures high luminous flux and superior sensitivity to weak signals.

Technical Specifications
No Item Description
1 Name SR50C Fiber Optic Spectrometer
2 Chip Type Linear array CMOS, Hamamatsu S11639
3 Effective Pixel 2048
4 Sensing Area 28.7mm *0.2mm
5 Optical Design M Type C-T light path
6 Numerical Aperture 0.14
7 Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm (customizable)
8 Dimensions 76mm*65mm*36mm
9 Weight 220g
Typical Applications
Detection of absorption, transmittance and reflectivity of ultraviolet, visible and near infrared radiations
Light source and laser wavelength identification
Environmental protection industry (smoke and water quality monitoring)
LIBS (Laser-Induced Breakdown Spectroscopy)
Fluorescence spectrum analysis
Raman spectrum analysis
Technical Characteristics
Wide Spectral Range: Customizable spectrum range of 200-1000nm
High Signal-to-Noise Ratio: Low-noise CMOS signal processing circuit
High Luminous Flux: Integrated cylindrical mirror for improved performance
Low Temperature Drift: Integrated temperature sensor with drift compensation
Compact Design: Small volume and lightweight with excellent performance
Optical Fiber Spectrometer High Resolution Spectrum Analysis Mini Spectrometer SMA-905 0 Optical Fiber Spectrometer High Resolution Spectrum Analysis Mini Spectrometer SMA-905 1 Optical Fiber Spectrometer High Resolution Spectrum Analysis Mini Spectrometer SMA-905 2
Frequently Asked Questions
Q1: How to receive the best price in the shortest time?
A1: Please provide details including wavelength, detector type, effective pixels, and focal length when inquiring. We will promptly send a detailed quotation to your email.
Q2: What if the spectrometer has problems at my location?
A2: The spectrometer comes with a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.
Q3: What about quality assurance?
A3: All products undergo rigorous quality inspection before shipment. We can provide inspection photos upon request.
Q4: Do you offer operation training?
A4: Your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.
Q5: Do you offer OEM service?
A5: We provide OEM services including custom branding, logos, and packaging. Minimum order quantity is 200 units per model.
