SR50C Compact Fiber Optic Spectrometer High Luminous Flux Supports Customized Spectrum Range 200-1000nm

Contact Now

SR50C Compact Fiber Optic Spectrometer High Luminous Flux Supports Customized Spectrum Range 200-1000nm

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C
Document:	Product Brochure PDF

Detail Information
Wide Spectral Range:	Supports Customized Spectrum Range Of 200-1000nm	Low Temperature Drift:	Integrated Temperature Sensor And Temperature Drift Compensation Algorithm
Effective Pixel:	2048	Name:	SR50C Fiber Optic Spectrometer
Optical Design:	M Type C-T Light Path	Entrance Slit Width:	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Highlight:	Compact Fiber Optic Spectrometer , High Luminous Flux Fiber Optic Spectrometer , 200-1000nm Fiber Optic Spectrometer

Product Description

SR50C Compact Fiber Optic Spectrometer High Luminous Flux Supports Customized Spectrum Range 200-1000nm

Key Features

Wide Spectral Range

Supports customized spectrum range of 200-1000nm

Low Temperature Drift

Integrated Temperature Sensor and Temperature Drift Compensation Algorithm

Effective Pixel

Optical Design

M Type C-T light path

Entrance Slit Width

10μm, 25μm, 50μm, 100μm, 200μm (customizable)

Product Overview

The SR50C Compact Fiber Optic Spectrometer features high luminous flux with an integrated cylindrical mirror to enhance performance in low-light conditions. Its wide spectral range (200-1000nm) makes it suitable for diverse applications, while the compact design ensures portability without compromising precision.

Technical Specifications

Optical Design	M Type C-T light path
Sensing Area	28.7mm * 0.2mm
Chip Type	Linear array CMOS, Hamamatsu S11639
Numerical Aperture	0.14
Dimensions	76mm × 65mm × 36mm
High Luminous Flux	Integrated with cylindrical mirror

Applications

The SR50C spectrometer supports detection of absorption, transmittance, and reflectivity across ultraviolet, visible, and near-infrared radiations. Ideal for:

Light source and laser wavelength identification
Environmental monitoring (smoke, water quality)
LIBS, fluorescence spectrum, and Raman spectrum analysis

Support & Services

Comprehensive support package includes:

Installation and setup assistance
Troubleshooting and diagnostics
Repair and maintenance services
Software updates and upgrades
Operation training (onsite available)

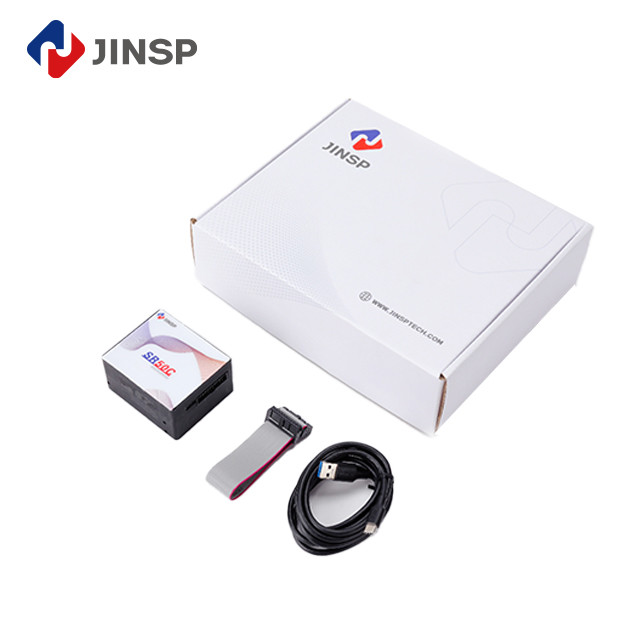

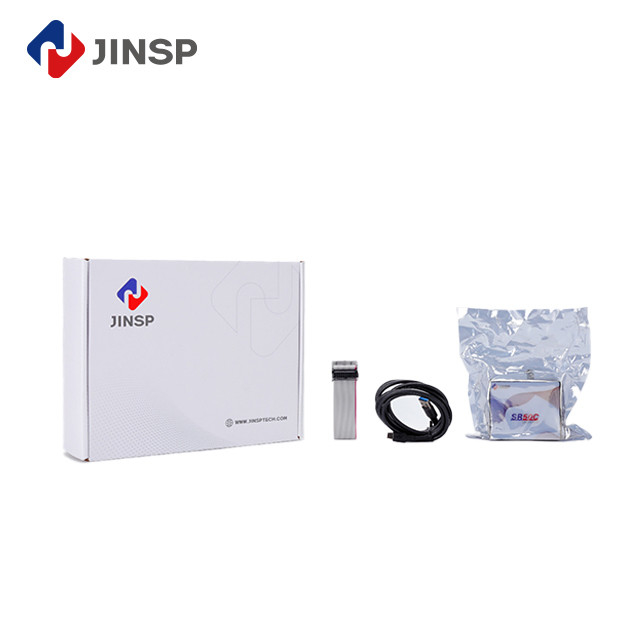

Packaging & Shipping

The spectrometer ships in protective foam-lined packaging including:

SR50C spectrometer unit
USB cable
AC power adapter
Instruction manual

Frequently Asked Questions

What is the model number of this fiber spectrometer?

SR75C

Is this fiber spectrometer certified?

Yes, it is CE certified.

Where is this fiber spectrometer manufactured?

China

What is the minimum order quantity?

1 unit

Are prices negotiable?

Payment terms?

T/T and Western Union
