Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface
Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface
Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface
Contact Now

Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Customized Packaging Delivery Time : 30-50working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR75C
Document: Product Brochure PDF

Detail Information
Fiber Type: Single Core Fiber High Resolution: M-shape C-T Optical Design
Power Consumption: 12 VDC, 1.5 A Fiber Connector: FC/PC
Pintegration Time: 1ms-60s Waverange: 200nm ~1000nm
Chip Type: Linear Array CMOS, Hamamatsu S11639 Fiber Input Interface: SMA-905, Free Space
Highlight:

Fiber Optic mini spectrometer

,

compact fiber optic spectrometer

,

SMA-905 fiber optic spectrometer

Product Description

Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface
Key Features
  • High-resolution M-shape C-T optical design
  • Single core fiber with SMA-905 and free space input interface
  • Compact dimensions: 76mm × 65mm × 36mm (220g weight)
  • Wavelength range: 200nm ~ 1100nm (customizable)
  • Linear array CMOS chip (Hamamatsu S11639) with 2048 effective pixels
  • USB 2.0 or Serial Port data output interface
  • Low power consumption: 12 VDC, 1.5 A
Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface 0 Compact Mini Spectrometer Single Core Fiber Optic SMA-905 Fiber Input Interface 1
Technical Specifications
Parameter Value
Fiber Type Single core fiber
Fiber Connector FC/PC
Integration Time 1ms-60s
Spectral Resolution 0.1-10 Nm
Sensing Area 28.7mm × 0.2mm
Operating Humidity <90%RH (no condensation)
Model Name SR50C Fiber Optic Spectrometer
Applications
Research and development laboratories Quality control in manufacturing Environmental monitoring Food and agriculture industry Medical and pharmaceuticals
The Universal Compact Fiber Spectrometer provides accurate light intensity measurements across a broad wavelength range. Its compact design and real-time data transfer capabilities make it ideal for professionals requiring high-precision measurements.
Support & Services

Comprehensive technical support package includes:

  • Product troubleshooting and maintenance
  • Calibration and repair services
  • Training on product capabilities
Packaging Includes

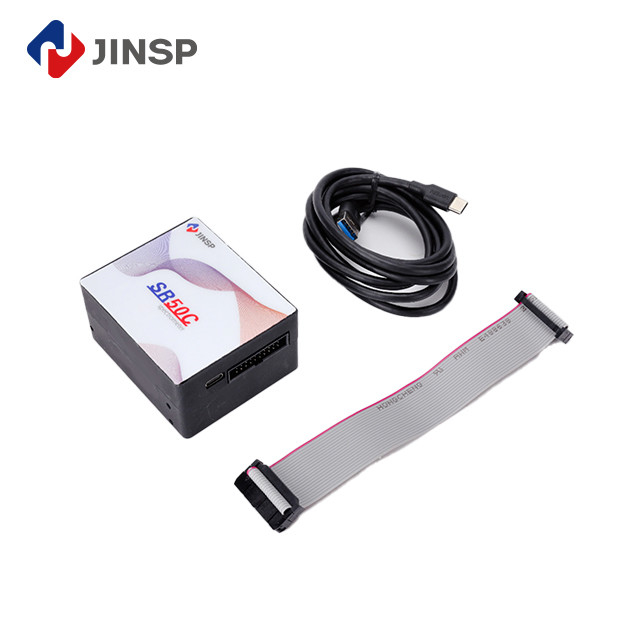

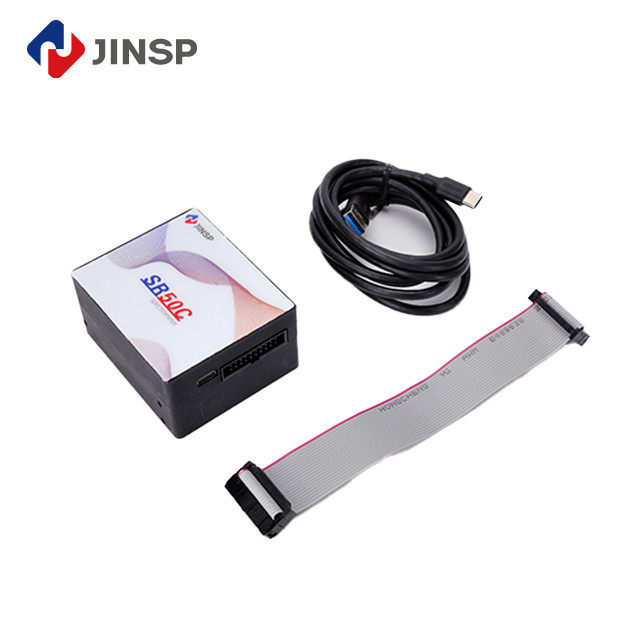

  • Universal Compact Fiber Spectrometer
  • USB cable
  • Power adapter
  • User manual
Frequently Asked Questions
What is the brand and model of this spectrometer?

Brand: JINSP, Model: SR75C (CE certified)

Where is this product manufactured?

Manufactured in China

What are the payment options?

T/T and Western Union, with negotiable pricing (minimum order quantity: 1)
