Optical Interface FC/PC Or SMA905 Miniature Fiber Optic Spectrometer With 200nm ~ 1000nm Wide Spectrum Range

Contact Now

Optical Interface FC/PC Or SMA905 Miniature Fiber Optic Spectrometer With 200nm ~ 1000nm Wide Spectrum Range

Minimum Order Quantity :	1	Price :	Negotiable

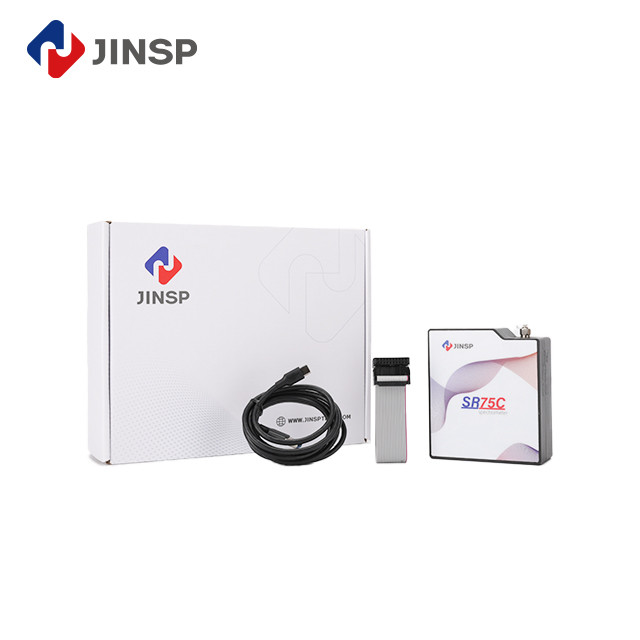

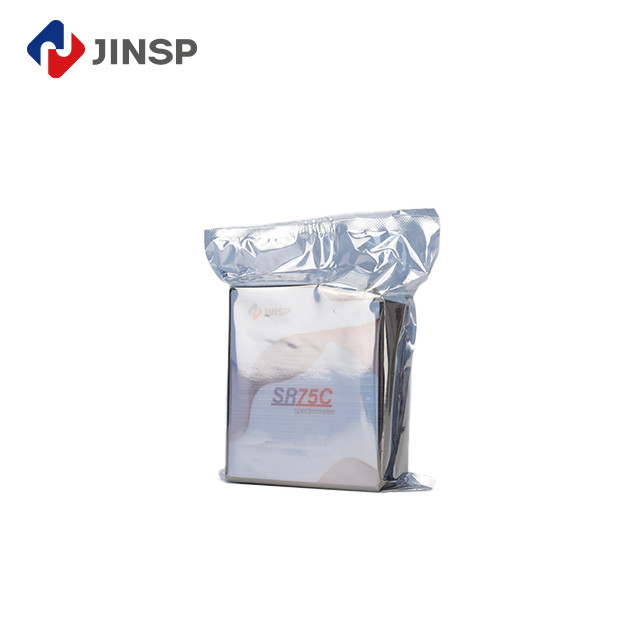

Packaging Details :	Customized Packaging	Delivery Time :	30-50 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	200nm-1100nm	Detector Type:	Linear Array CMOS, Hamamatsu S11639
Optical Design:	Type M C-T Light Path	Grating Slits:	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Weight:	310g	Dimension:	110mm95mm43mm
Interface:	USB 2.0	Optical Interface:	FC/PC Or SMA905
Highlight:	Wide Spectrum Range Fiber Optic Spectrometer , 200nm ~ 1000nm Fiber Optic Spectrometer , SMA905 Miniature Fiber Optic Spectrometer

Product Description

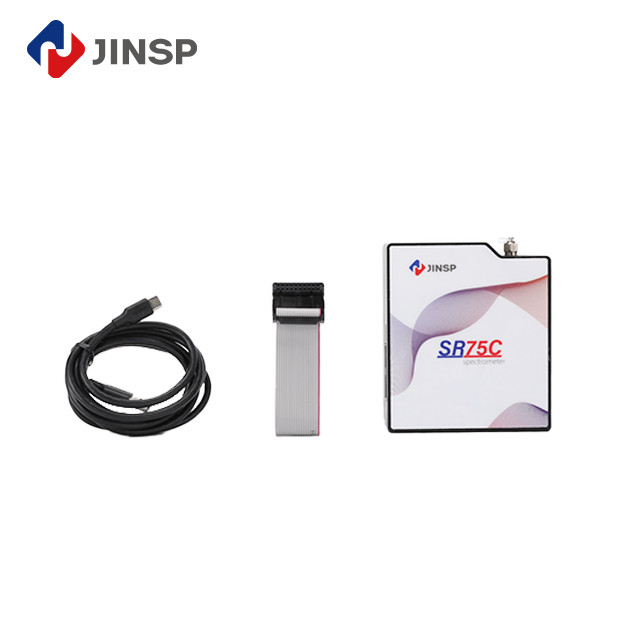

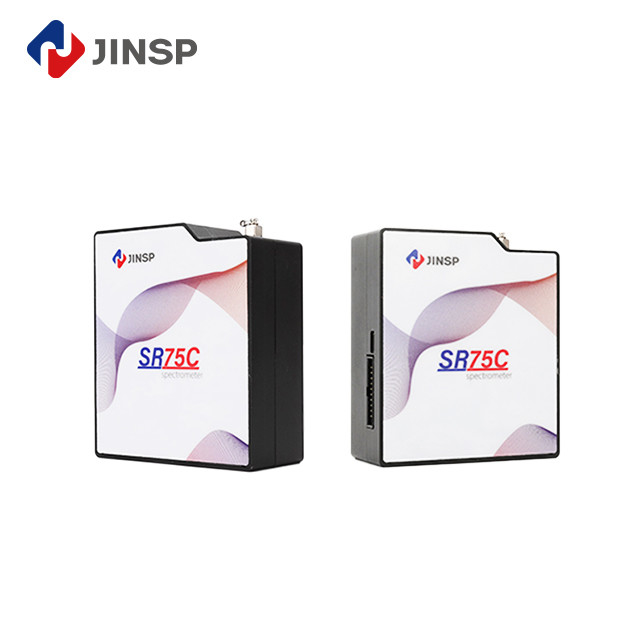

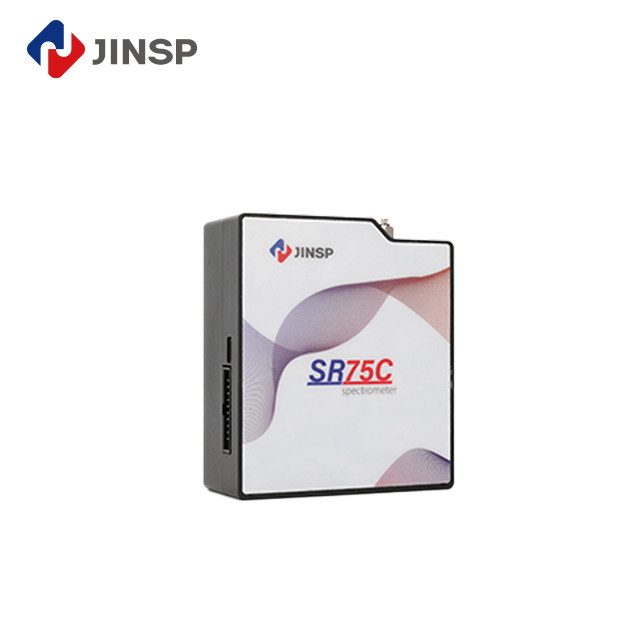

Miniature Fiber Optic Modular Spectrometer JINSP SR75C

The JINSP SR75C high-resolution fiber optic spectrometer is a cost-effective and versatile spectrometer. It utilizes a high quantum efficiency CMOS chip with 2048 pixels, supporting both reflectance and transmittance absorption spectra in the range of 200 to 1000nm.

By employing an f/75 mm reflector and an M-shaped C-T optical design, the optical aberrations of the system are effectively optimized, resulting best optical resolution effect up-to 0.15nm.

It can also monitor the ambient temperature in real time and realize the minimum temperature drift within the operational temperature range based on the internal compensation algorithm for temperature drift.

No	Item	Description
1	Chip Type	Linear array CMOS, Hamamatsu S11639
2	Effective Pixel	2048
3	Sensing Area	28.7mm *0.2mm
4	Optical Design	M Type C-T light path
5	Numerical Aperture	0.085
6	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
7	Dimensions	110mm95mm40.5mm
8	Weight	310g

Typical Applications

● LIBS (Laser-Induced Breakdown Spectroscopy): This advanced technology is utilized extensively in the field of geological detection and mining-related activities. It plays a crucial role in analyzing the chemical composition of soil and minerals. By employing high-energy laser pulses, LIBS can vaporize a small amount of the sample, creating a plasma that emits light. The spectral analysis of this light reveals the elemental composition of the material being tested, making it an invaluable tool for tasks such as mineral exploration, soil contamination assessment, and geological mapping.

● Water Quality and Environmental Protection: In the realm of environmental monitoring, LIBS technology is instrumental in the online detection and continuous monitoring of organic substances and dissolved oxygen levels in various water bodies. This real-time analysis is essential for assessing the health of aquatic ecosystems, ensuring compliance with environmental regulations, and facilitating timely interventions to prevent or mitigate pollution. By providing instant data on water quality parameters, LIBS helps in maintaining the balance of natural water resources and supports efforts in water conservation and protection.

● Flue Gas: The monitoring and identification of components in flue gas emissions are critical for environmental compliance and industrial safety. LIBS technology is employed to analyze the composition of gases released from industrial processes, such as combustion in power plants or waste incineration. By identifying and quantifying various components, including harmful pollutants like sulfur dioxide, nitrogen oxides, and heavy metals, LIBS enables the implementation of effective emission control strategies. This contributes to reducing the environmental impact of industrial activities and helps in achieving regulatory standards for air quality, thereby protecting public health and the environment.

Technical Characteristics

● Wide Spectral Range Supports customized spectrum range of 200-1000nm

● High Signal-to-Noise Ratio Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio

● High Resolution M-shape C-T optical design

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.GB/T 40219-2021 "General Specification for Raman Spectrometer".

FAQ

Q1: Is the price of this product negotiable?

A1: Yes, the price of this product is negotiable.

Q2: What are the payment terms for this product?

A2: The payment terms for this product are T/T and Western Union.

Q3: What is the supply ability for this product?

A3: The supply ability for this product is 100 PCS/70-90 days.

Q4: How long does it take to deliver this product?

A4: The delivery time for this product is 30-50 working days.

Q5: How is this product packaged?

A5: This product is packaged according to customized packaging.
