Wavelength Range 200nm -1100nm 2048 Pixels Spectrometer With Type M C-T Light Path

Contact Now

Wavelength Range 200nm -1100nm 2048 Pixels Spectrometer With Type M C-T Light Path

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	200nm-1100nm	Detector Type:	Linear Array CMOS, Hamamatsu S11639
Optical Design:	Type M C-T Light Path	Grating Slits:	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Weight:	310g	Dimension:	110mm95mm43mm
Interface:	USB 2.0	Optical Interface:	FC/PC Or SMA905
Highlight:	200nm Spectrometer , 2048 Pixels Spectrometer , 1100nm Spectrometer

Product Description

Wavelength Range 200nm -1100nm 2048 Pixels Spectrometer With Type M C-T Light Path

Product Specifications

Attribute	Value
Wavelength Range	200nm-1100nm
Detector type	Linear array CMOS, Hamamatsu S11639
Optical design	Type M C-T light path
Grating slits	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Weight	310g
Dimension	110mm95mm43mm
Interface	USB 2.0
Optical Interface	FC/PC or SMA905

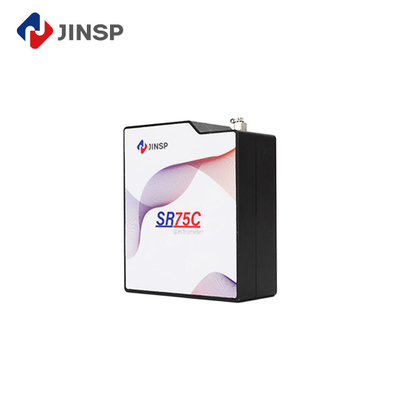

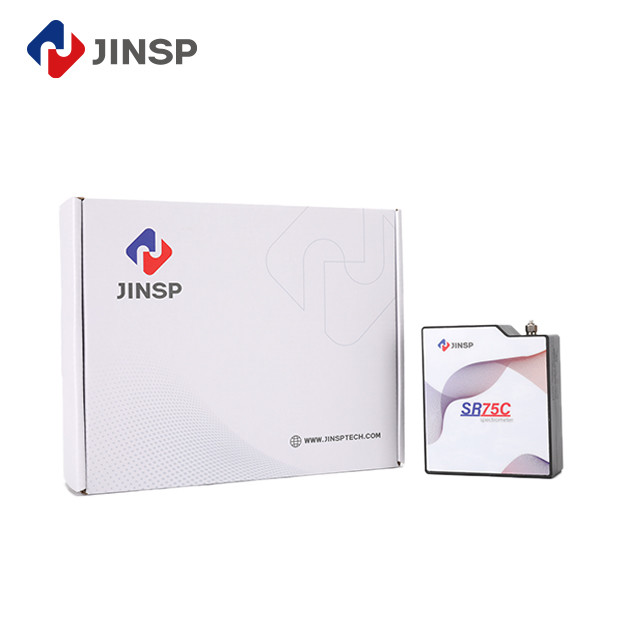

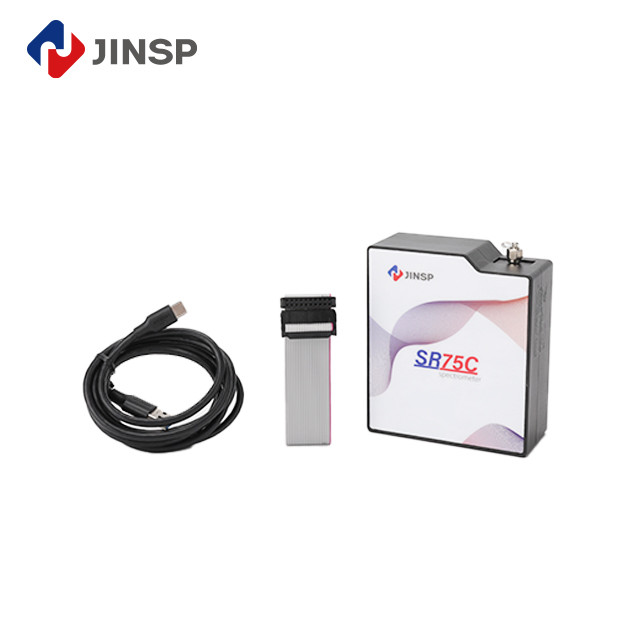

Miniature Fiber Optic Modular Spectrometer JINSP SR75C

JINSP multi-purpose compact fiber optic spectrometer combines small size with high performance and versatility. Ideal for building various spectral measurement systems, it enables reflection, transmission, and absorption spectra detection in the 200nm to 1100nm range.

The spectrometer features industry-leading diffraction blazed grating and optical design to ensure high luminous flux and enhanced weak signal detection. With interchangeable diffraction gratings of different line densities, it achieves high-resolution spectral detection across ultraviolet, visible, and near-infrared bands. The 2048-pixel high quantum efficiency CMOS chip paired with professional signal processing circuitry delivers optimal spectral signal-to-noise ratio.

JINSP provides complete customization solutions tailored to specific application requirements.

No	Item	Description
1	Chip Type	Linear array CMOS, Hamamatsu S11639
2	Effective Pixel	2048
3	Sensing Area	28.7mm *0.2mm
4	Optical Design	M Type C-T light path
5	Numerical Aperture	0.085
6	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
7	Dimensions	110mm95mm40.5mm
8	Weight	310g

Typical Applications

Absorption, transmittance, and reflectance detection in UV, visible, and near-infrared range
Light source and laser wavelength detection
OEM product modules for:
- LIBS - soil and mineral analysis for geological testing
- Water quality monitoring - organic matter and oxygen content analysis
- Flue gas emission component monitoring

Technical Characteristics

Wide Spectral Range: Customizable spectrum range of 200-1000nm
High Signal-to-Noise Ratio: Low-noise CMOS signal processing circuit
High Resolution: M-shape C-T optical design

JINSP Company Limited holds the National Science and Technology Commission's Scientific Achievement Certificate and China Patent Excellence Award. Our products have received prestigious recognitions including the Geneva International Invention Award and Beijing New Technology Certificate, complying with GB/T 40219-2021 "General Specification for Raman Spectrometer".

Frequently Asked Questions

Is the price of this product negotiable?

Yes, the price of this product is negotiable.

What are the payment terms for this product?

The payment terms for this product are T/T and Western Union.

What is the supply ability for this product?

The supply ability for this product is 100 PCS/70-90 days.

How long does it take to deliver this product?

The delivery time for this product is 30-50 working days.

How is this product packaged?

This product is packaged according to customized packaging requirements.
