High Throughput Miniature Fiber Optic Spectrometer Module SR50C with Spectral Range 200-1100 nm 76mm*65mm*38mm

Contact Now

High Throughput Miniature Fiber Optic Spectrometer Module SR50C with Spectral Range 200-1100 nm 76mm65mm38mm

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50C
Document:	Product Brochure PDF

Detail Information
Dimensions:	76mm65mm38mm	High Resolution:	M-shape C-T Optical Design
Detector Type:	Back-Illuminated CCD	Spectral Range:	200-1100 Nm
Fiber Connector:	FC/PC	Integration Time:	1 Ms - 60 S
Highlight:	Miniature Fiber Optic Spectrometer Module , High Throughput Fiber Optic Spectrometer Module

Product Description

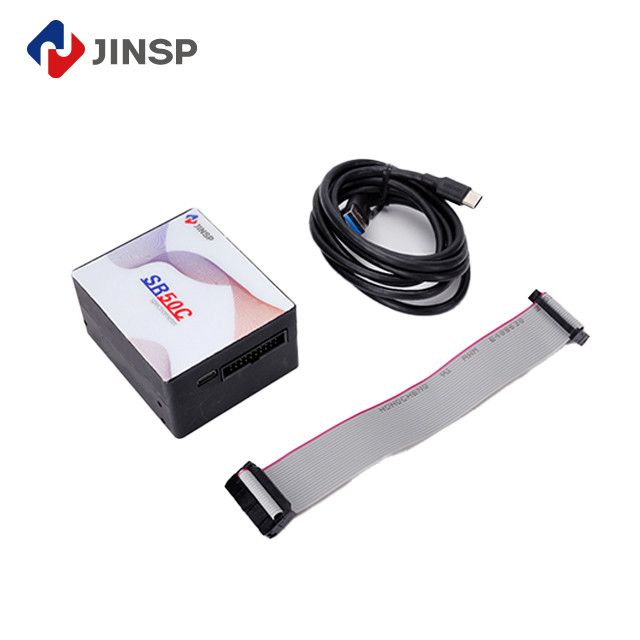

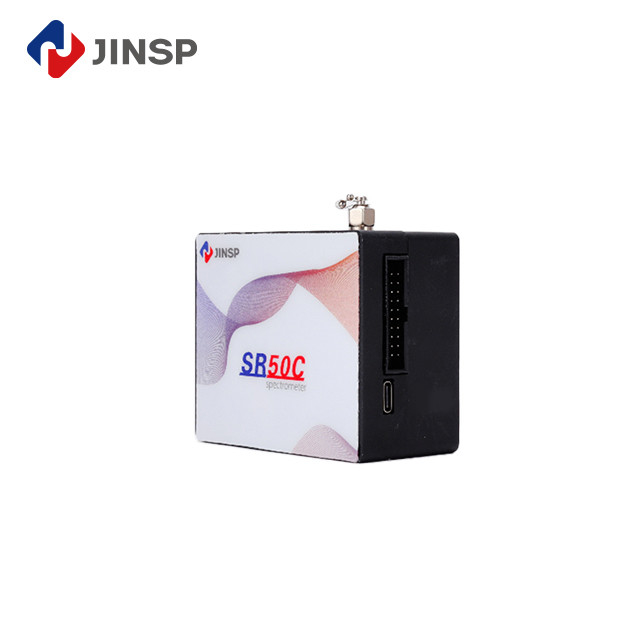

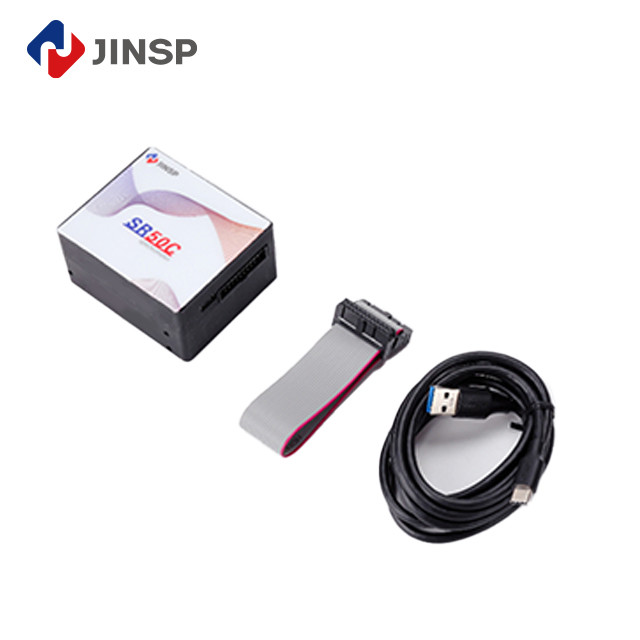

High Throughput Miniature Fiber Optic Spectrometer Module SR50C

Compact high-performance spectrometer with 200-1100nm spectral range for reflection, transmission, and absorption spectra analysis.

Key Specifications

Attribute	Value
Dimensions	76mm × 65mm × 38mm
High Resolution	M-shape C-T optical design
Detector Type	Back-Illuminated CCD
Spectral Range	200-1100 nm
Fiber Connector	FC/PC
Integration Time	1 ms - 60 s

Technical Features

Wide spectral range (200-1100nm) with customizable grating options
High signal-to-noise ratio with low-noise CMOS processing
Enhanced luminous flux through cylindrical mirror integration
Temperature stability with integrated sensor and drift compensation
Compact modular design (220g weight) for laboratory and field use

Detailed Technical Parameters

No	Item	Description
1	Name	SR50C Fiber Optic Spectrometer
2	Chip Type	Linear array CMOS, Hamamatsu S11639
3	Effective Pixel	2048
4	Sensing Area	28.7mm × 0.2mm
5	Optical Design	M Type C-T light path
6	Numerical Aperture	0.14
7	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)

Applications

Ideal for research laboratories and field applications requiring portable spectral analysis:

Color measurement systems
Fluorescence analysis
UV/VIS/NIR spectroscopy
Reflection/transmission studies
Absorption spectrum analysis

Product Support

Comprehensive product training and documentation
Calibration and maintenance services
Regular software updates
Dedicated technical support team

Shipping & Packaging

Includes sturdy protective packaging with:

Foam-insulated cardboard box
USB connection cable
Detailed user manual

Shipped via tracked courier service with 30-50 day delivery time.

Frequently Asked Questions

What is the brand name of this fiber spectrometer?

JINSP is the brand name of this fiber spectrometer.

What certification does this fiber spectrometer have?

This fiber spectrometer has CE certification.

Where is this fiber spectrometer made?

This fiber spectrometer is made in China.

What are the payment terms?

Payment terms include T/T and Western Union. Prices are negotiable.
