Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput
Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput
Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput
Contact Now

Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Customized Packaging Delivery Time : 30-50working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50C
Document: Product Brochure PDF

Detail Information
Spectral Range: 200-1100 Nm High Resolution: M-shape C-T Optical Design
Detector Type: Back-Illuminated CCD Fiber Connector: FC/PC
Integration Time: 1 Ms - 60 S Dimensions: 76mm*65mm*38mm
Highlight:

Compact Fiber Optic Spectrometer Module

,

Wide Spectrum Range Fiber Optic Spectrometer

,

High Throughput Fiber Optic Spectrometer

Product Description

Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput
Key Specifications
Attribute Value
Spectral Range 200-1100 nm
High Resolution M-shape C-T optical design
Detector Type Back-Illuminated CCD
Fiber Connector FC/PC
Integration Time 1 ms - 60 s
Dimensions 76mm*65mm*38mm
Product Overview

The compact and high-performing JINSP SR50C Miniature Fiber Optic Spectrometer is designed for achieving reflection, transmission, and absorption spectra in the 200–1100nm range. It enables high-resolution spectral detection in UV, Visible, and near-Infrared spectrum with interchangeable grating slits.

Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput 0
Technical Parameters
No Item Description
1 Name SR50C Fiber Optic Spectrometer
2 Chip Type Linear array CMOS, Hamamatsu S11639
3 Effective Pixel 2048
4 Sensing Area 28.7mm *0.2mm
5 Focal Length ≤ 50mm
6 Numerical Aperture 0.14
7 Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm (customizable)
8 Dimensions 79mm*68mm*42mm
9 Weight 220g
Key Features
  • Wide Spectral Range: Customized spectral range supporting 200-1100nm
  • High Signal-to-Noise Ratio: Low-noise CMOS signal processing circuit
  • High Luminous Flux: Integrated with cylindrical mirror to improve luminous flux
  • Low Temperature Drift: Integrated temperature sensor with drift compensation algorithm
Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput 1
Applications
  • Detection of absorption, transmittance and reflectivity in UV, visible light and near infrared
  • Light source and laser wavelength identification
  • Environmental monitoring (smoke and water quality)
  • LIBS, fluorescence spectrum, Raman spectrum analysis
Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput 2
Support & Services

Our high-performance instrument comes with comprehensive support:

  • Product training and documentation
  • Calibration and maintenance services
  • Software updates and upgrades
Packaging & Shipping

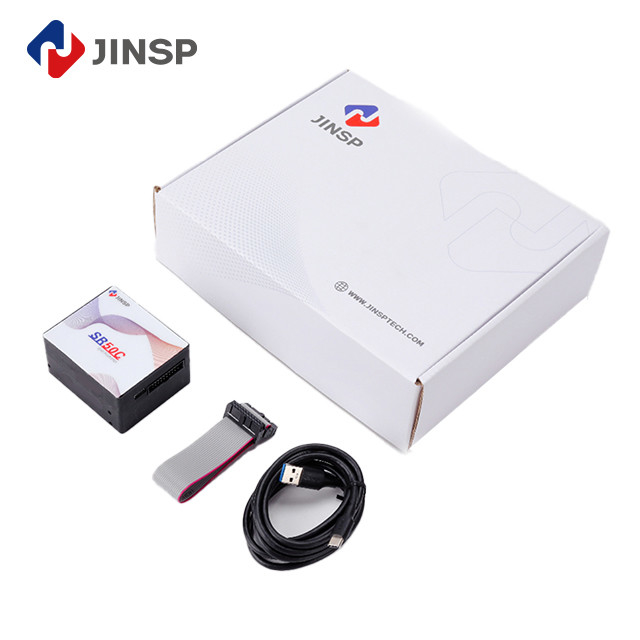

The spectrometer ships in a protective cardboard box with foam inserts, including:

  • USB cable
  • User manual

Shipped via reputable courier with tracking number provided.

Compact Fiber Optic Spectrometer Module Wide Spectrum Range High Throughput 3
Frequently Asked Questions
What is the brand name of this fiber spectrometer?
JINSP is the brand name of this fiber spectrometer.
What is the model number of this fiber spectrometer?
The model number is SR50C.
What certification does this fiber spectrometer have?
This fiber spectrometer has CE certification.
Where is this fiber spectrometer made?
This fiber spectrometer is made in China.
What are the payment terms for this product?
Payment terms are T/T and Western Union. Prices are negotiable.
