Home ProductsCompact CMOS SpectrometerCompact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis
Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis
Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis
Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis
Contact Now

Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : International Shipping Package Delivery Time : 30-40 working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/30-40 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50C
Document: Product Brochure PDF

Detail Information
Spectral Range: 200-1100 Nm Integration Time: 1 Ms - 60 S
Signal-to-Noise Ratio: 650:1(4ms） Dimensions: 76mm*65mm*38mm
Highlight:

High Performance CMOS Spectrometer

,

Industrial Spectral Analysis CMOS Spectrometer

,

Compact Compact CMOS Spectrometer

Product Description

Compact CMOS Spectrometer - Compact and High-Performance Solution for Industrial Spectral Analysis
Key Specifications
Spectral Range 200-1100 nm
Integration Time 1 ms - 60 s
Signal-to-Noise Ratio 650:1 (4ms)
Dimensions 76mm × 65mm × 38mm
Product Overview

The SR50C Compact Modular Fiber Optic Spectrometer provides environmental engineers with dual-mode capability for measuring absorption/reflection spectra, enabling comprehensive water analysis. Its thermally stabilized optical design maintains accuracy within ±0.02nm despite ambient fluctuations, making it ideal for long-term phosphorus trend monitoring in aquatic environments.

With 16-bit dynamic range and <5ms integration time, this spectrometer detects subtle spectral shifts caused by organic pollutants. The modular architecture simplifies integration into existing water quality platforms while reducing maintenance costs compared to traditional wet chemistry methods.

Technical Parameters
No Item Description
1 Name SR50C Fiber Optic Spectrometer
2 Chip Type Linear array CMOS, Hamamatsu S11639
3 Effective Pixel 2048
4 Sensing Area 28.7mm × 0.2mm
5 Focal Length ≤ 50mm
6 Numerical Aperture 0.14
7 Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm (customizable)
8 Dimensions 79mm × 68mm × 42mm
9 Weight 220g
Technical Characteristics
  • Wide Spectral Range: Customized spectral range supporting 200-1100nm
  • High Signal-to-Noise Ratio: Low-noise CMOS signal processing circuit with excellent signal-to-noise ratio
Applications
  • Detection of absorption, transmittance and reflectivity of ultraviolet, visible light and near infrared radiations
  • Light source and laser wavelength identification
  • Environmental protection industry (smoke and water quality monitoring)
  • LIBS, fluorescence spectrum, Raman spectrum analysis

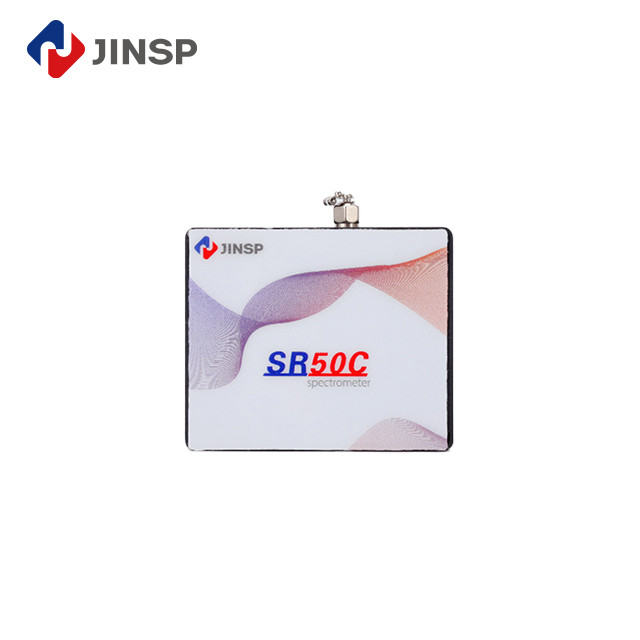

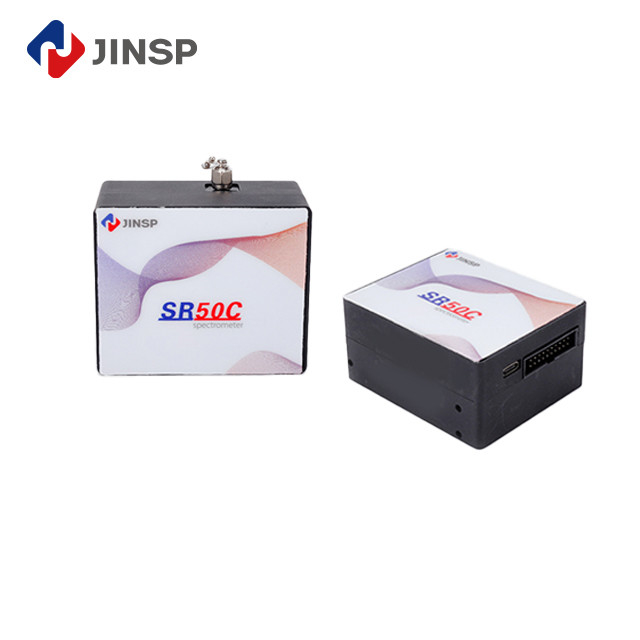

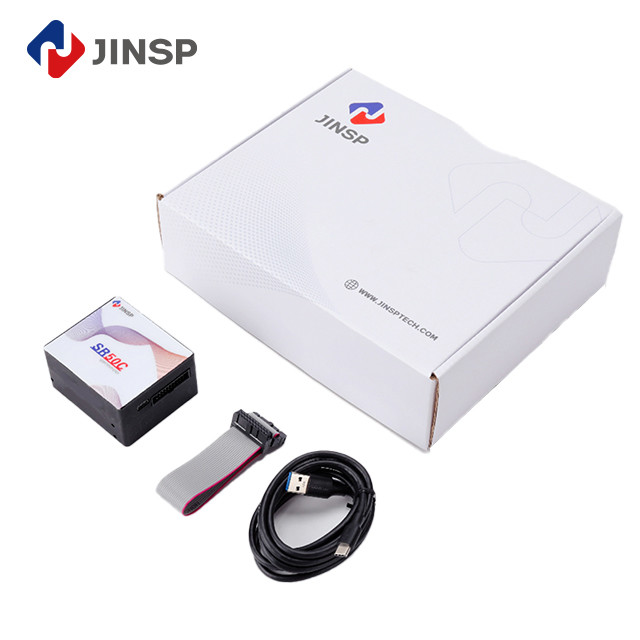

Product Images
Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis 0 Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis 1 Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis 2 Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis 3 Compact CMOS Spectrometer Compact and High-Performance Solution for Industrial Spectral Analysis 4
Company Information

JINSP Company Limited has won numerous awards including the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate, China Patent Excellence Award, Geneva International Invention Award, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.

The company complies with GB/T 40219-2021 "General Specification for Raman Spectrometer" and holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. Additional available certifications include CE Certification, Environmental Level Certification, and IP Level Certification.

JINSP maintains a customer-centric approach, working closely with clients from concept to final product to ensure all specifications are met and expectations exceeded.

Frequently Asked Questions
Q: What is the brand name of this fiber spectrometer?
A: JINSP is the brand name of this fiber spectrometer.
Q: What is the model number of this fiber spectrometer?
A: The model number is SR50C.
Q: What certification does this fiber spectrometer have?
A: This spectrometer has CE certification.
Q: Where is this fiber spectrometer made?
A: This spectrometer is manufactured in China.
Q: What are the payment terms for this product?
A: Payment terms include T/T and Western Union, with negotiable prices.
