Home ProductsCompact CMOS SpectrometerCompact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range
Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range
Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range
Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range
Contact Now

Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : International Shipping Package Delivery Time : 30-40 working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/30-40 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50C
Document: Product Brochure PDF

Detail Information
Spectral Range: 200-1100 Nm Integration Time: 1 Ms - 60 S
Signal-to-Noise Ratio: 650:1(4ms） Dimensions: 76mm*65mm*38mm
Highlight:

4ms Compact CMOS Spectrometer

,

200-1100 nm Compact CMOS Spectrometer

Product Description

Compact CMOS Spectrometer with 650:1 Signal-to-Noise Ratio

Breakthrough UV-Vis-NIR spectroscopy meets environmental science in the SR50C. The proprietary temperature drift control (<0.01°C⁻¹) enables reliable field deployment for 24/7 nutrient monitoring, particularly effective in tracking phosphorus variations during algal bloom seasons.

The spectrometer's optical throughput (f/2.0) combined with CMOS cooling technology achieves detection limits below 10ppb for most contaminants. Municipal water authorities can now replace lab-based digestion processes with immediate in-situ measurements, significantly improving response time to pollution incidents.

Key Specifications
Spectral Range 200-1100 nm
Integration Time 1 ms - 60 s
Signal-to-Noise Ratio 650:1 (4ms)
Dimensions 76mm × 65mm × 38mm
Weight 220g
Technical Characteristics
Wide Spectral Range

Customized spectral range supporting 200-1100nm

High Signal-to-Noise Ratio

Low-noise CMOS signal processing circuit with excellent signal-to-noise ratio

Detailed Technical Parameters
Detector
Chip Type Linear array CMOS, Hamamatsu S11639
Effective Pixel 2048
Pixel Size 14μm × 200μm
Sensing Area 28.7mm × 0.2mm
Optical Parameters
Numerical Aperture 0.14
Focal Length ≤ 50mm
Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm
Fiber Interface SMA905, free space
Product Models
Model Spectral Range (nm) Resolution (nm) Slit (μm)
SR50C-G01 200~1000 (UV-NIR) 3.5 / 2.4 / 1.5 50 / 25 / 10
SR50C-G03 350~870 (VIS) 2.5 / 2.0 / 1.2 50 / 25 / 10
SR50C-G04/G07/G08 200~550 (UV)
350~700 (VIS)
780~1050 (NIR)		 1.8 / 1.3 / 0.8 50 / 25 / 10
SR50C-G09/G10 200~450 (UV)
525~700 (VIS)		 1.0 / 0.6 / 0.3 50 / 25 / 10

* Customization available for other ranges

Applications
  • Detection of absorption, transmittance and reflectivity of ultraviolet, visible light and near infrared radiations
  • Light source and laser wavelength identification
  • Environmental protection industry (smoke and water quality monitoring)
  • LIBS, fluorescence spectrum, Raman spectrum

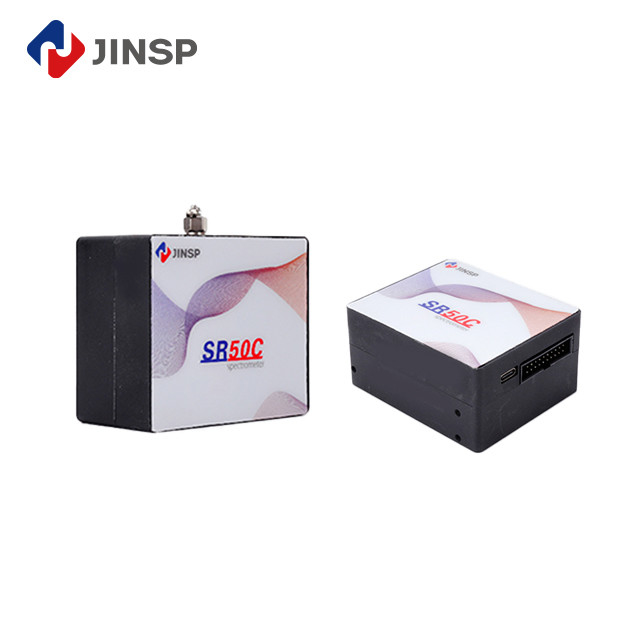

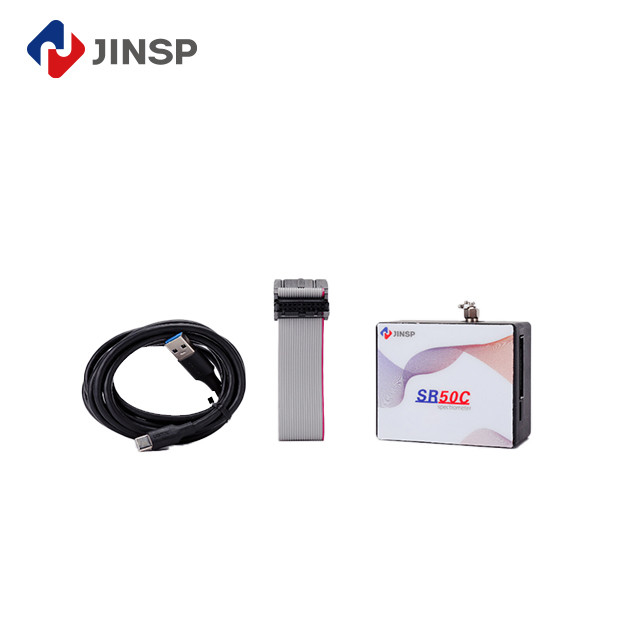

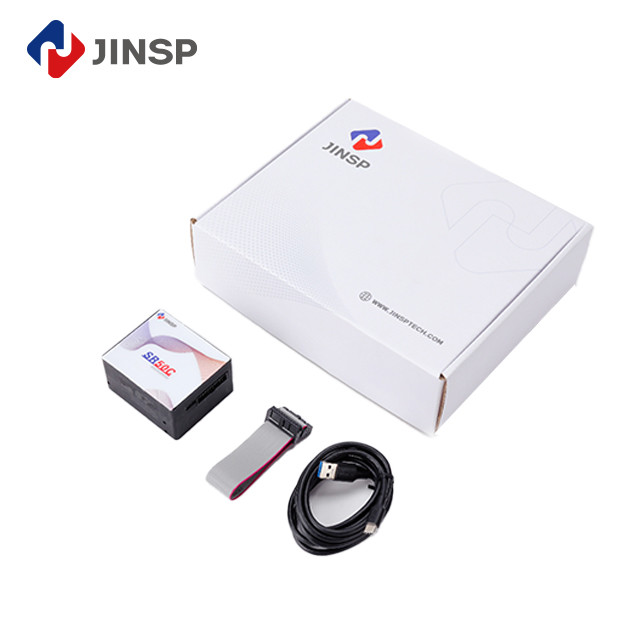

Product Images
Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range 0 Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range 1 Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range 2 Compact CMOS Spectrometer Accurate Measurements with 650 1 Signal-to-Noise Ratio 4ms and 200-1100 nm Spectral Range 3
Company Information

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, along with other prestigious awards including the Geneva International Invention Award and Beijing New Technology and New Product Certificate.

JINSP is certified to ISO9001:2015, ISO14001:2015, and ISO45001:2018 standards, and can provide various required certifications including CE Certification, Environmental Level Certification, and IP Level Certification.

Frequently Asked Questions
Q: What is the brand name of this fiber spectrometer?
A: JINSP is the brand name of this fiber spectrometer.
Q: What is the model number of this fiber spectrometer?
A: The model number is SR50C.
Q: What certification does this fiber spectrometer have?
A: This spectrometer has CE certification.
Q: Where is this fiber spectrometer made?
A: This spectrometer is made in China.
Q: What are the payment terms for this product?
A: Payment terms are T/T and Western Union. Prices are negotiable.

Tag:

CMOS Fiber Optic Spectrometers

Environmental Protection Optical Fiber Spectrometer

Fiber Optic Spectrometer SR50C
