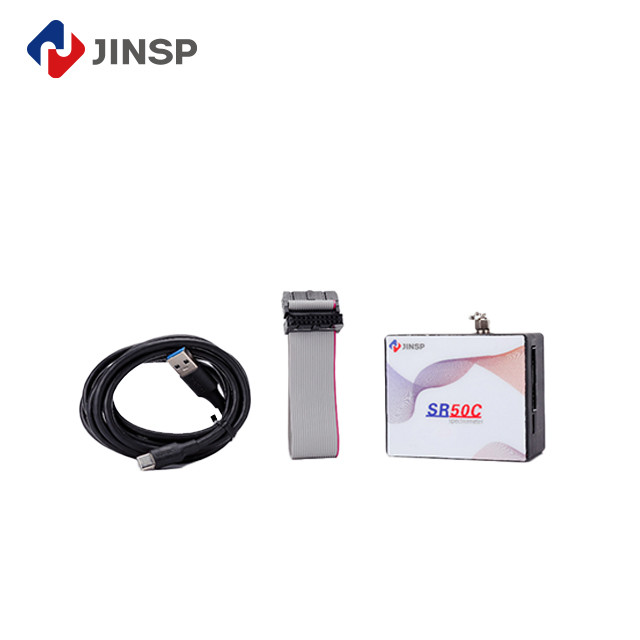

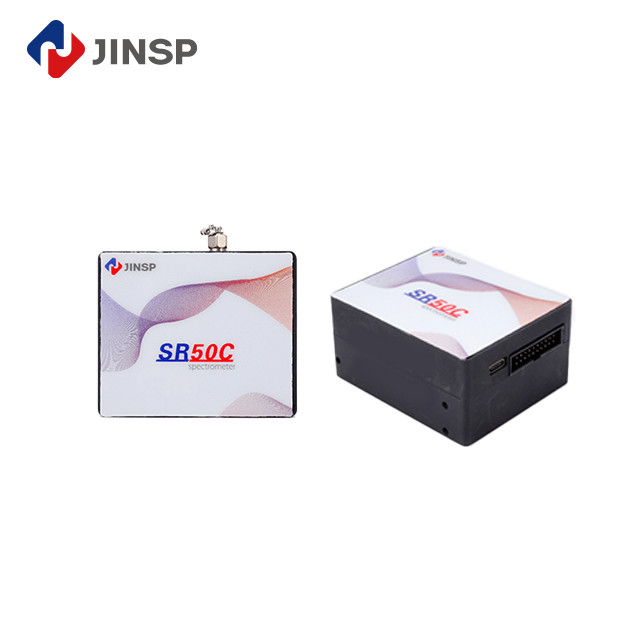

SR50C Compact Spectrometer Enables Water Testing Monitoring Through Advanced Photonics

Contact Now

SR50C Compact Spectrometer Enables Water Testing Monitoring Through Advanced Photonics

Minimum Order Quantity :	1	Price :	Negotiable

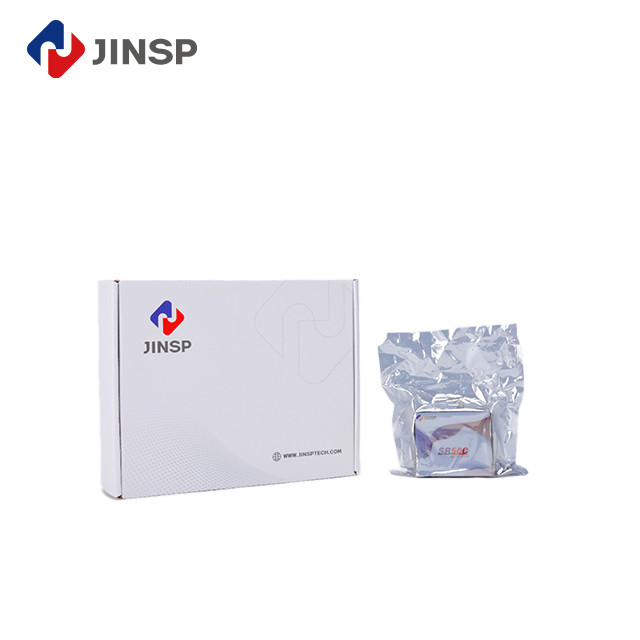

Packaging Details :	International Shipping Package	Delivery Time :	30-40 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/30-40 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50C
Document:	Product Brochure PDF

Detail Information
Spectral Range:	200-1100 Nm	Integration Time:	1 Ms - 60 S
Signal-to-Noise Ratio:	650:1(4ms）	Dimensions:	76mm65mm38mm
Highlight:	SR50C Compact Spectrometer , Water Testing Monitoring Compact Spectrometer , Advanced Photonics Compact Spectrometer

Product Description

SR50C Compact Spectrometer Enables Water Testing Monitoring Through Advanced Photonics

The SR50C spectrometer provides a green alternative to chemical-based analysis, enabling non-destructive water testing through advanced photonics. Its multi-channel design supports simultaneous detection of phosphorus, nitrogen, and COD parameters with 99% correlation to standard laboratory results.

Key Specifications

Spectral Range	200-1100 nm
Integration Time	1 ms - 60 s
Signal-to-Noise Ratio	650:1 (4ms)
Dimensions	76mm × 65mm × 38mm

Technical Features

Dynamic baseline correction algorithm compensates for matrix interference
Enables real-time process control and compliance reporting
Eliminates hazardous reagent handling requirements
Low-noise CMOS signal processing circuit
Customizable spectral range supporting 200-1100nm

Detailed Technical Parameters

Detector Specifications
Chip Type	Linear array CMOS, Hamamatsu S11639
Effective Pixel	2048
Pixel Size	14μm × 200μm
Sensing Area	28.7mm × 0.2mm

Optical Parameters

Numerical Aperture	0.14
Focal Length	≤ 50mm
Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm
Fiber Interface	SMA905, free space

Electrical Parameters

Integration Time	1ms-60s
Signal-to-Noise Ratio	650:1 (4ms)
Data Output Interface	Type-C
ADC Bit Depth	16-bit
Power Supply	DC 4.5V to 5.5V (type @5V)

Product Models

Model	Spectral Range (nm)	Resolution (nm)	Slit (μm)
SR50C-G01	200~1000 (UV-NIR)	3.5 / 2.4 / 1.5	50 / 25 / 10
SR50C-G03	350~870 (VIS)	2.5 / 2.0 / 1.2	50 / 25 / 10
SR50C-G04/G07/G08	200~550 (UV) 350~700 (VIS) 780~1050 (NIR)	1.8 / 1.3 / 0.8	50 / 25 / 10

Applications

Environmental protection industry (smoke and water quality monitoring)
LIBS, fluorescence spectrum, Raman spectrum analysis
Detection of absorption, transmittance and reflectivity
Light source and laser wavelength identification
