Gas Component Identification Compact Raman Spectrometer For UV And Visible Spectra

Contact Now

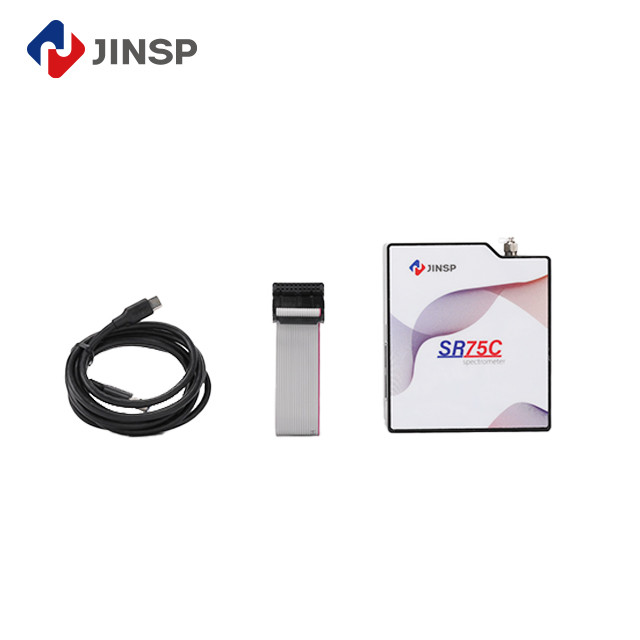

Gas Component Identification Compact Raman Spectrometer For UV And Visible Spectra

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C
Document:	Product Brochure PDF

Detail Information
High Signal-to-Noise Ratio:	Low-noise CMOS Signal Processing Circuit, With Excellent Signal-to-noise Ratio	Chip Type:	Linear Array CMOS, Hamamatsu S11639
Low Temperature Drift:	Integrated Temperature Sensor And Temperature Drift Compensation Algorithm	Weight:	310g
Dimensions:	110mm95mm40.5mm	Data Output Interface:	USB 2.0 Or Serial Port
Highlight:	Gas Component Identification Compact Raman Spectrometer , Gas Component Identification mini raman spectrometer , Visible Spectra Compact Raman Spectrometer

Product Description

Gas Component Identification Compact Raman Spectrometer For UV And Visible Spectra

Key Features

High Signal-to-Noise Ratio with low-noise CMOS signal processing circuit
Linear array CMOS chip (Hamamatsu S11639)
Integrated Temperature Sensor and Temperature Drift Compensation Algorithm
Compact dimensions: 110mm × 95mm × 40.5mm
Lightweight design at only 310g
Flexible data output via USB 2.0 or serial port

Technical Specifications

Parameter	Value
Product Name	Universal Compact Fiber Spectrometer
Optical Design	M Type C-T light path, M-shape C-T optical design
Chip Type	Linear array CMOS, Hamamatsu S11639
Spectral Range	200-1000nm
Weight	310g
Dimensions	110mm × 95mm × 40.5mm
Sensing Area	28.7mm × 0.2mm

Performance Advantages

The Universal Compact Fiber Spectrometer features a low-noise CMOS signal processing circuit that delivers excellent signal-to-noise ratio, enabling detection of even the faintest signals with precision. The unique M Type C-T light path design provides superior light collection and transmission for higher resolution and more accurate results.

This portable spectrometer combines high-performance spectroscopy measurements in a compact, lightweight package, making it ideal for field applications and laboratory use.

Applications

Pharmaceutical research and development
Petrochemical analysis
Food and beverage industry quality control
Environmental monitoring
Material identification
Process monitoring

Support & Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades

Frequently Asked Questions

What is the brand name of this product?

JINSP

What is the model number?

SR75C

Is this product certified?

Yes, CE certified

Where is it manufactured?

China

What is the minimum order quantity?

1 unit
