Spectrual Range 200nm 1100nm Fiber Optic Spectrometer for Film Thickness Measurement in Optoelectronics and Energy Devices

Contact Now

Spectrual Range 200nm 1100nm Fiber Optic Spectrometer for Film Thickness Measurement in Optoelectronics and Energy Devices

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Pakcage	Delivery Time :	90-120 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100Q
Document:	Product Brochure PDF

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	1024*122
Qutuam Efficiency:	QE92%peak@650nm, 83%@232nm	SNR:	1000:1
Highlight:	Optoelectronics Fiber Optic Spectrometer , 200nm 1100nm Fiber Optic Spectrometer , Energy Devices Fiber Optic Spectrometer

Product Description

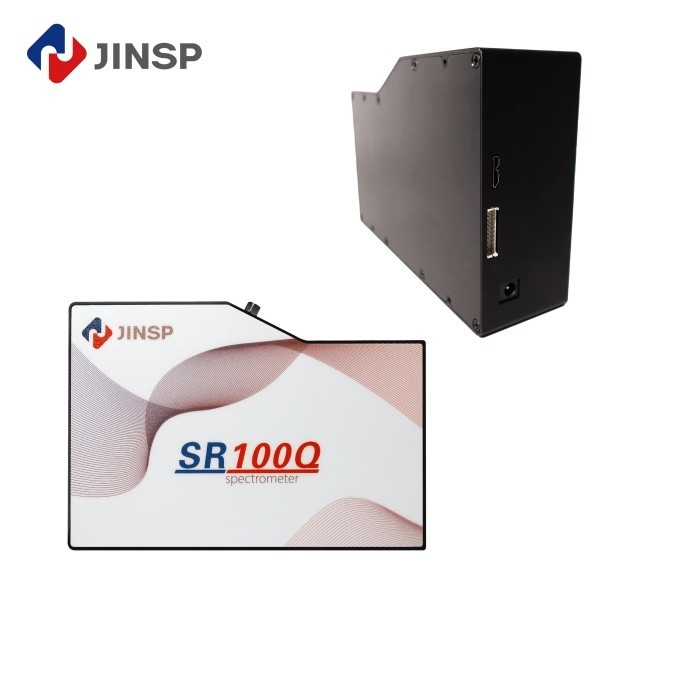

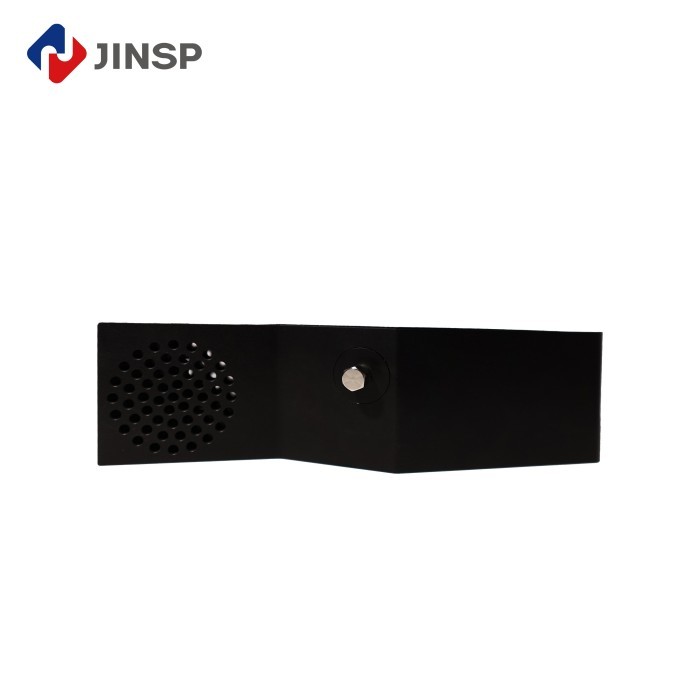

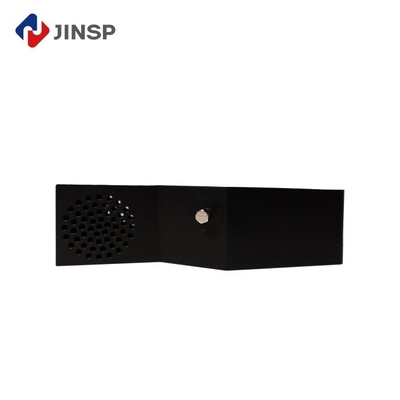

Spectrual Range 200nm-1100nm Fiber Optic Spectrometer for Film Thickness Measurement

Key Specifications

Attribute	Value
Spectrual Range	200nm - 1100nm
Effective pixels	1024*122
Quantum Efficiency	QE92%peak@650nm, 83%@232nm
SNR	1000:1

High Performance Spectrometer for Precision Film Thickness Measurement

As thin films become essential components in optoelectronics and energy devices, accurate thickness measurement is critical. Our photoelectric solutions provide non-contact measurement that eliminates damage risks while delivering superior precision through advanced adaptive algorithms.

Detailed Technical Parameters

Category	Parameter	Value
Detector	Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
Detector	Effective Pixel	1024*122
Pixel Size		24*24μm
Sensing Area		24.576*2.928mm
Optical Parameters	Optical Design	F/4 cross-type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
Fiber Interface		SMA905, free space
Electrical Parameters	Integration Time	8ms-3600s

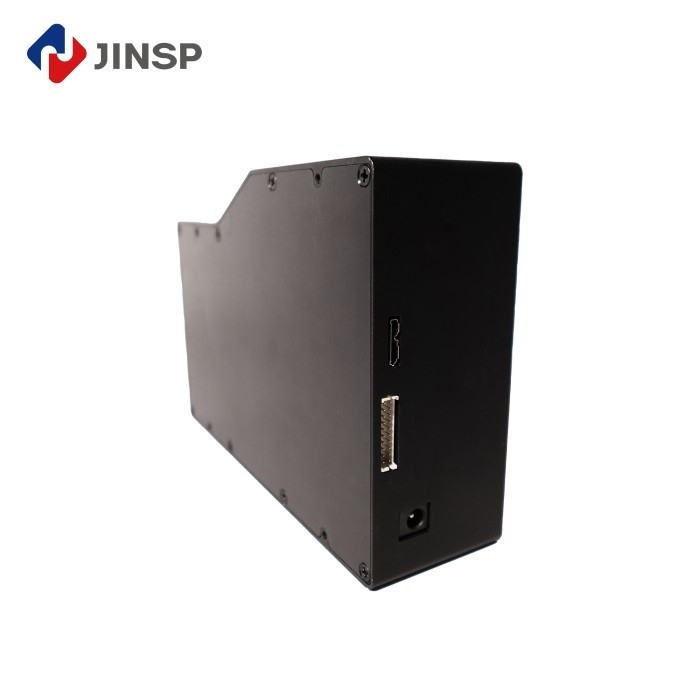

	Data Output Interface	USB3.0, RS232, RS485, 20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<3.5A
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

Available Models

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100Q-G21	200~950	6.8	200
SR100Q-G22	350~1100	2.2	50
SR100Q-G23	200~775	1.6	50
SR100Q-G24	350~925	1.0	25
SR100Q-G25	532~690(4400cm-1*)	13cm-1	50
SR100Q-G26	638~800(3200cm-1*)	10cm-1	25
SR100Q-G27	785~1050(3200cm-1*)	11cm-1	50

Note: Models marked with * are primarily designed for Raman applications.

Technical Advantages

High quantum efficiency: 92% peak at 650nm, 83% at 232nm
Superior signal-to-noise ratio: Ultra-low dark noise with SNR up to 1000:1
Advanced signal processing: Clear detection of weak signals during long exposures with strong environmental adaptation
High-speed data transfer: USB3.0 interface with low-noise circuitry

Measurement Methodology

The optical fiber probe delivers light to the film, producing reflections at the air-film and film-substrate boundaries. The spectrometer captures the interference pattern formed by these beams, from which thickness (d) is derived via the extremum method (using θ, n, and spectral features). Fringe spacing varies with thickness (inversely with wavelength), necessitating tailored spectral parameters for accuracy.

Typical Applications

Absorption, transmittance and reflection spectrum analysis
Light source and laser wavelength characterization
OEM modules for fluorescence and Raman spectroscopy

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. Our core technologies have reached internationally leading levels, with over 200 patent applications.

Headquartered in Beijing with a manufacturing facility in Jiangsu, China, JINSP holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. We can provide various required certifications including CE Certification, EU ECAC certification, and German ICT Security Testing.

Frequently Asked Questions

Q1: Is this spectrometer easy to operate for first-time users?

A1: We provide comprehensive English manuals and instructional videos, along with professional technical support from our engineers.

Q2: Do you offer operation training?

A2: We provide both on-site training at our facility and can send engineers to your location for installation, training, and maintenance support.

Q3: What is your website?

A3: Visit us at www.jinsptech.com

Q4: What quality assurance do you provide?

A4: All products undergo rigorous quality inspection before shipment, with documentation and photos available upon request.
