Home ProductsOCT SpectrometerCompact SD OCT Spectrometer Featuring Line Array CMOS Detector For Accurate Imaging

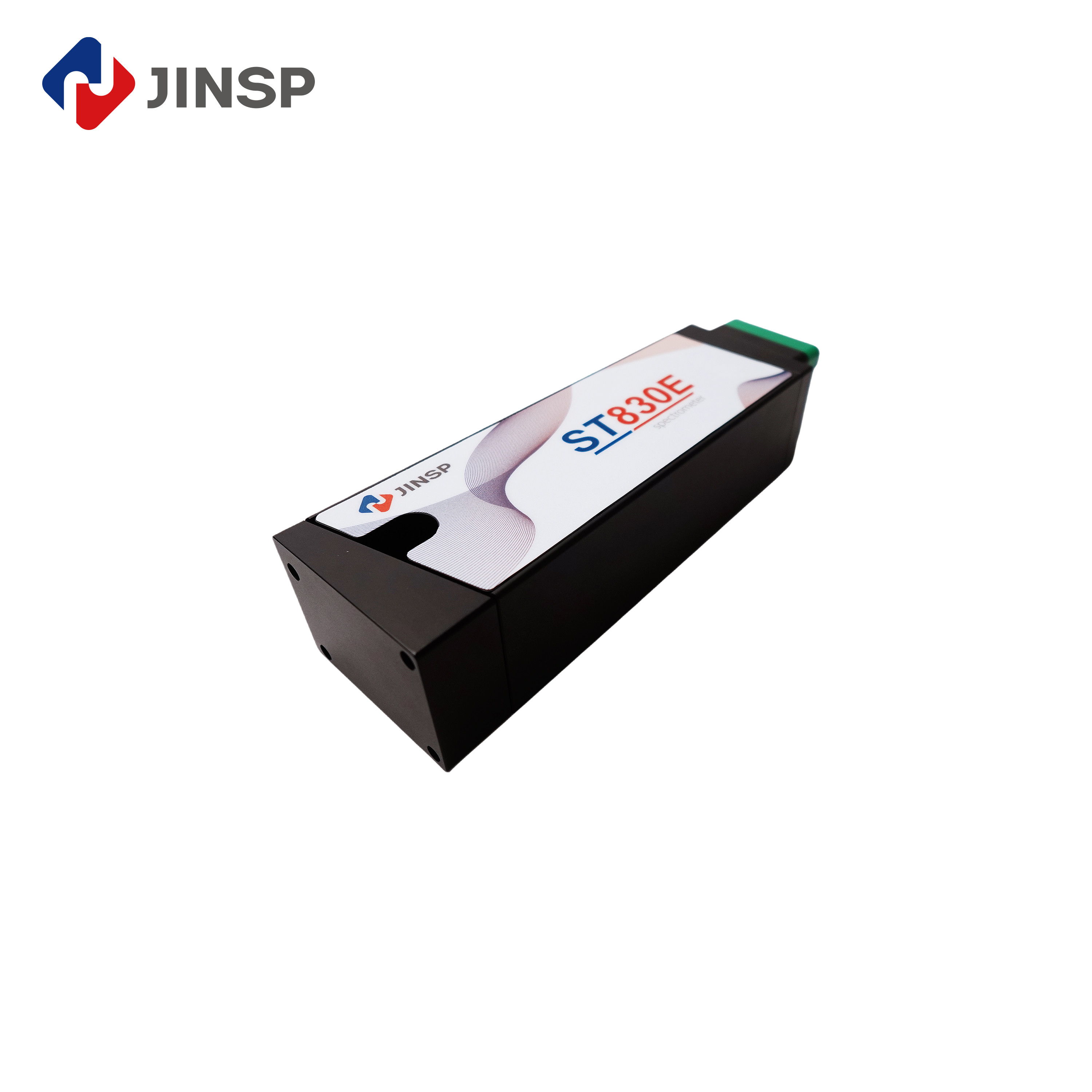

Compact SD OCT Spectrometer Featuring Line Array CMOS Detector For Accurate Imaging
Compact SD OCT Spectrometer Featuring Line Array CMOS Detector For Accurate Imaging
Compact SD OCT Spectrometer Featuring Line Array CMOS Detector For Accurate Imaging Compact SD OCT Spectrometer Featuring Line Array CMOS Detector For Accurate Imaging
Contact Now

Compact SD OCT Spectrometer Featuring Line Array CMOS Detector For Accurate Imaging

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Carton Packing Delivery Time : 80-90 WORKING DAYS
Payment Terms : T/T, Western Union Supply Ability : 10PCS/MONTH
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: ST830E
Document: Product Brochure PDF

Detail Information
VPH Gratings: High-efficiency With Near-diffraction-limited Optical Resolution Product Name: High-speed And High-sensitivity OCT Spectrometers For Spectral Domain OCT System
Photosensitive Area: 20.52*0.2mm USB3.0 Interface: Can Realize 20-130kHz Scanning Rate, OEM Is More Efficient And Simple
Product Category: OCT Spectrometers Interference Spectrum Processing: Direct FFT Without Wavenumber Resampling Algorithm
Optical Resolution: 0.07nm Line Scan Rate: Up To 250kHz
Highlight:

Accurate Imaging SD OCT Spectrometer

,

Accurate Imaging compact spectrometer

,

Compact SD OCT Spectrometer

Product Description

Compact SD OCT Spectrometer Featuring Line Array CMOS Detector
Key Features
  • High-speed and high-sensitivity OCT Spectrometer for Spectral Domain OCT System
  • USB3.0 interface enables 20-130kHz scanning rate
  • Optical resolution: 0.07nm
  • Photosensitive area: 20.52*0.2mm
  • VPH gratings with near-diffraction-limited optical resolution
  • Direct FFT processing without wavenumber resampling algorithm
Compact SD OCT Spectrometer Featuring Line Array CMOS Detector For Accurate Imaging 0 Compact SD OCT Spectrometer Featuring Line Array CMOS Detector For Accurate Imaging 1
Technical Specifications
Product Name JINSP ST830E spectrometer
Product Category OCT Spectrometers
Optical Path Design Equal interval sampling of wave number
Photosensitive Area 20.52*0.2mm
VPH Gratings High-efficiency with near-diffraction-limited resolution
Wavelength Range Customizable 790-930nm
Interface FC/APC fiber optic interface
Detector Line array CMOS
Cell Size 10*200μm
Advanced Performance
Our OCT spectrometers feature a special optical path design that enables equal interval sampling of wave number, resulting in more efficient and accurate data collection. The USB3.0 interface supports scanning rates of 20-130kHz, delivering exceptional performance with simple operation.
Compact SD OCT Spectrometer Featuring Line Array CMOS Detector For Accurate Imaging 2
Applications
  • Medical imaging and retinal analysis
  • Biological tissue research
  • Material analysis and industrial inspection
  • Research and development laboratories
  • Pharmaceutical and biotechnology applications
Support & Services
Our experienced technicians provide comprehensive support including installation, calibration, and training. We offer maintenance services and troubleshooting assistance to ensure optimal spectrometer performance throughout its lifespan.
Shipping & Packaging
Each spectrometer is securely packaged in foam-lined boxes for protection during transit. We offer multiple shipping options with tracking information provided for all orders.
Frequently Asked Questions
What is the brand and model of the OCT spectrometer?
JINSP ST830E spectrometer
Where is the spectrometer manufactured?
China
What payment methods are accepted?
T/T and Western Union
