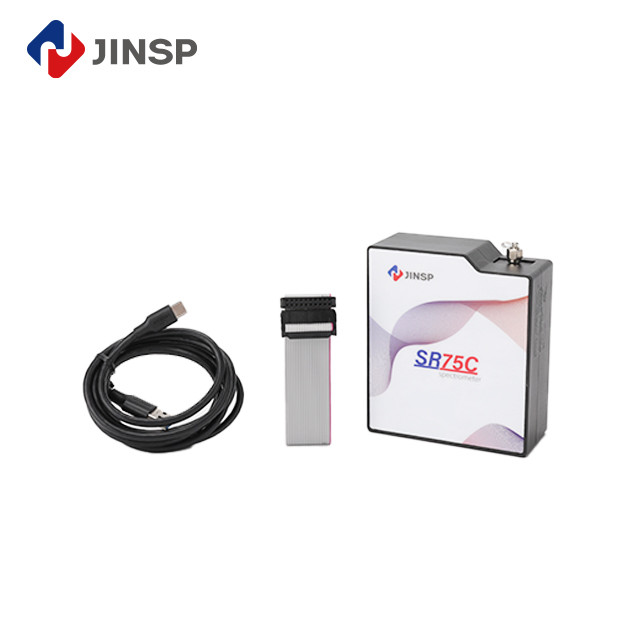

CE Certified Universal Fiber Optic Spectrometer For Analysis

Contact Now

CE Certified Universal Fiber Optic Spectrometer For Analysis

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C
Document:	Product Brochure PDF

Detail Information
Effective Pixel:	2048	Optical Design:	M Type C-T Light Path
High Signal-to-Noise Ratio:	Low-noise CMOS Signal Processing Circuit, With Excellent Signal-to-noise Ratio	Weight:	310g
Chip Type:	Linear Array CMOS, Hamamatsu S11639	Dimensions:	110mm95mm40.5mm
Highlight:	CE Certified Fiber Optic Spectrometer , CE Certified optical fiber spectrometer , Fiber Optic Spectrometer For Analysis

Product Description

CE Certified Universal Fiber Optic Spectrometer For Analysis

Product Overview

The Universal Compact Fiber Spectrometer is designed for high-precision optical measurements with excellent signal-to-noise ratio. Its compact dimensions (110×95×40.5mm) and lightweight design (310g) make it ideal for laboratory and field applications.

Key Features

High resolution M-shape C-T optical design
Low-noise CMOS signal processing circuit
Flexible data output via USB and serial port
Integrated temperature sensor with drift compensation
Customizable entrance slit widths (10μm to 200μm)

Technical Specifications

Attribute	Specification
Effective Pixel	2048
Optical Design	M Type C-T light path
Chip Type	Linear array CMOS, Hamamatsu S11639
Numerical Aperture	0.085
Sensing Area	28.7mm × 0.2mm
Dimensions	110mm × 95mm × 40.5mm
Weight	310g

Applications

This spectrometer is suitable for various research and industrial applications requiring precise spectral analysis, including environmental monitoring, material characterization, and quality control processes.

Product Support

The spectrometer comes with comprehensive technical support including installation assistance, operation guidance, and troubleshooting. Regular software updates and calibration services are available to maintain optimal performance.

Product Information

Brand:

JINSP

Model Number:

SR75C

Certification:

CE Certified

Origin:

China

Minimum Order Quantity:

1 unit

Payment Terms:

T/T, Western Union
