Portable Fiber Optic Spectrophotometer SR50C Supports 200-1000nm

Contact Now

Portable Fiber Optic Spectrophotometer SR50C Supports 200-1000nm

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50C
Document:	Product Brochure PDF

Detail Information
Dimensions:	79mm68mm42mm	High Resolution:	M-shape C-T Optical Design
Wide Spectral Range:	Supports Customized Spectrum Range Of 200-1000nm	Fiber Input:	FC/PC Or SMA905
Power Consumption:	12 VDC, 1.5 A	Spectral Range:	200~1000（UV-NIR）
Highlight:	fiber optic spectrophotometer SR50C , Portable fiber optic spectrophotometer , optical fiber spectroscopy 1000nm

Product Description

Portable Fiber Optic Spectrophotometer SR50C Supports 200-1000nm

Product Specifications

Attribute	Value
Dimensions	79mm × 68mm × 42mm
High Resolution	M-shape C-T optical design
Wide Spectral Range	Supports customized spectrum range of 200-1000nm
Fiber Input	FC/PC or SMA905
Power Consumption	12 VDC, 1.5 A
Spectral Range	200~1000nm (UV-NIR)

Product Overview

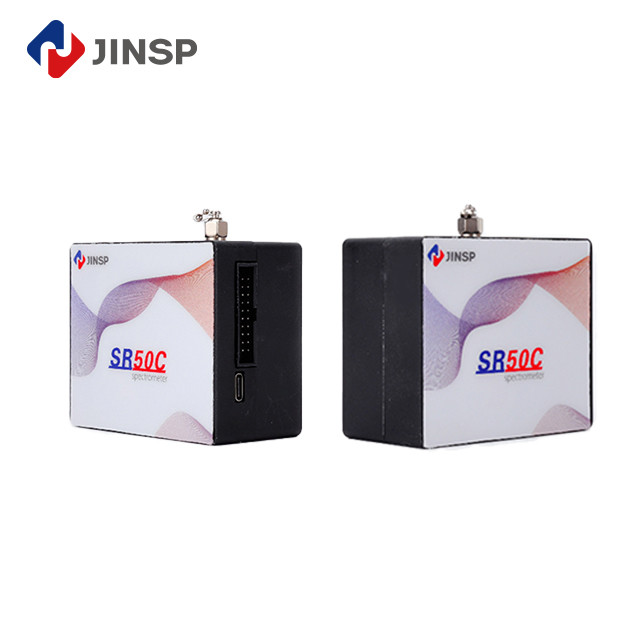

The JINSP SR50C Miniature Fiber Optic Spectrometer is a compact, high-performance instrument designed for reflection, transmission, and absorption spectra analysis in the 200–1100nm range. It features high-resolution spectral detection capabilities across UV, Visible, and near-Infrared spectrums.

Key Features

Internal integrated temperature sensor with real-time monitoring
Temperature drift compensation algorithm for stable performance
Interchangeable grating slits for enhanced resolution
Compact design (220g) with excellent performance

Technical Specifications

No	Item	Description
1	Name	SR50C Fiber Optic Spectrometer
2	Chip Type	Linear array CMOS, Hamamatsu S11639
3	Effective Pixel	2048
4	Sensing Area	28.7mm × 0.2mm
5	Optical Design	M Type C-T light path
6	Numerical Aperture	0.14
7	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
8	Dimensions	79mm × 68mm × 42mm
9	Weight	220g

Typical Applications

Absorption, transmittance and reflectivity measurements in UV, visible and near infrared ranges
Light source and laser wavelength identification
Environmental monitoring (smoke and water quality analysis)
LIBS (Laser-Induced Breakdown Spectroscopy)
Fluorescence spectrum analysis
Raman spectrum analysis

Technical Advantages

Wide spectral range (200-1000nm customizable)
High signal-to-noise ratio with low-noise CMOS processing
Enhanced luminous flux with integrated cylindrical mirror
Minimal temperature drift with integrated compensation
Compact and lightweight design without compromising performance

Frequently Asked Questions

Q1: How to receive the best price in the shortest time?

A1: Please provide details including wavelength, detector type, effective pixels, and focal length in your inquiry. We will promptly send a detailed quotation to your email.

Q2: What if the spectrometer has problems at my location?

A2: The spectrometer comes with a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Q3: What about quality assurance?

A3: Our quality inspection team thoroughly checks all products before shipment. We can provide inspection photos upon request.

Q4: Do you offer operation training?

A4: Your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.

Q5: Do you offer OEM services?

A5: We provide custom branding including logos, packaging, and scales. Minimum order quantity is 200 pieces per model.
