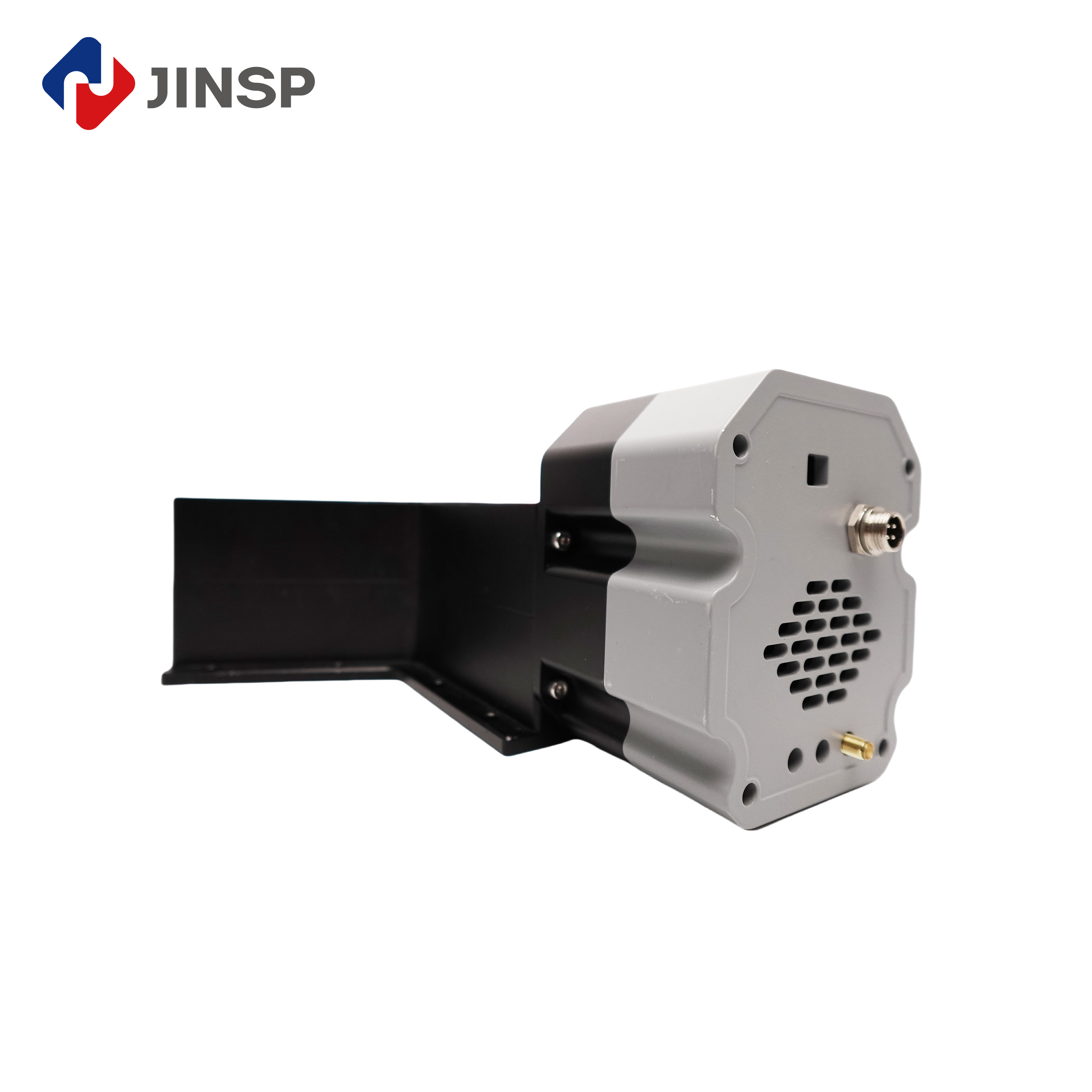

The ST90S is well-suited for 532nm laser Raman spectrum detection systems, particularly in the context of gas Raman signal detection. With exceptional optical properties, a spectrum range of up to 4200 cm-1, and a resolution of up to 4 cm-1, it can replace large imported reflection spectrometers used for scientific research. Furthermore, it has excellent stability and compact size, making it ideal for integrating industrial equipment.
Technical Characteristics
- High Compatibility Compatible with multiple scientific research grade cooling cameras such as PI and Andor, with ultra-low dark current and noise
- Zero-aberration Zero aberration design, diffraction-limited resolution
- Highly Stable No adjustable components, applicable to labs and industries
- High Flux High flux, numerical aperture is 0.25
- High Diffraction Efficiency VPH grating, diffraction efficiency up to 90%
- Support Multiple Channels Compatible with SMA905 optical fiber and Φ10mm multi-core optical fiber input interface
Features:
- Product Name: High-Throughput Transmission Raman Spectrometer for Quick Data Collection
- Fiber Interface: SMA905 Or Φ10mm Multi-core Optical Fiber
- Weight: <6kg (including Camera)
- Wavelength Range: 540nm~686nm Corresponds To 260~4200cm-1
- Research-grade Ramanspectroscopy detection system: 532 Confocal Raman Microscopy
- Ultra-high resolution Spectrometer
- Ultimate sensitivity Spectrometer
Technical Parameters:
| TechnicalParameters |
Description |
| Numerical Aperture |
0.25 |
| Optical Resolution |
0.25nm, Corresponds To 8cm-1(50μm Slit) |
| Applications |
Research-grade Raman spectroscopy detection system, 532nm Confocal Raman microscopy, Integration of industrial Raman system, Chemical Industry Online Biopharmaceuticals |
| Weight |
<6kg (including Camera) |
| Dimensions |
348.7mm×222.8mm ×126mm |
| Diffraction Efficiency |
>85% |
Transmission Imaging Spectrometer, high-quality deep-cooling CCD spectrometer, 532 Confocal Raman microscopy
Company Profile and Exhibition
JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology.As a leading supplier of spectroscopic technology, JINSP Technology offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, customs, and fiber optic spectrometers. Our products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.
Packing and Shipping:
Product Packaging:
- High-Throughput Transmission Fiber Spectrometer
- Power cord
- USB cable
- User manual
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is JINSP.
Q2: What is the model number of this product?
A2: The model number of this product is ST90S.
Q3: Where is this product made?
A3: This product is made in China.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity for this product is 1.
Q5: Is the price of this product negotiable?
A5: Yes, the price of this product is negotiable.
Q6: What are the payment terms for this product?
A6: The payment terms for this product are T/T and Western Union.
