SMA905 and Free Space Fiber Interface for Film Thickness Measurement with Fiber Optic Spectrometer
Key Specifications
| Attribute |
Value |
| Spectral Range |
200nm - 1100nm |
| Effective pixels |
1024*122 |
| Quantum Efficiency |
QE92%peak@650nm, 83%@232nm |
| SNR |
1000:1 |
92% High Quantum Efficiency Spectrometer for Film Thickness Measurement
From microchips to solar modules, thin film applications demand precise thickness characterization. Photoelectric measurement preserves sample integrity while delivering rapid results, making it the preferred approach for comprehensive surface analysis in precision manufacturing and next-generation material development.

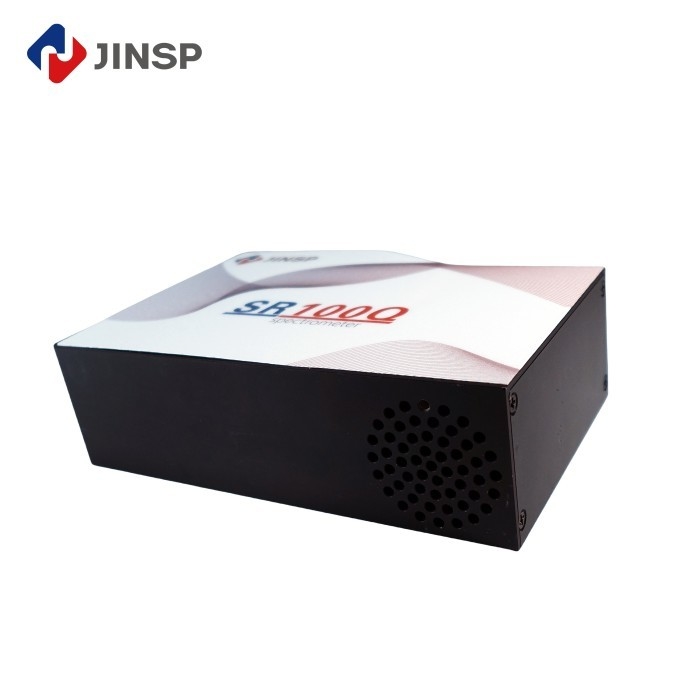

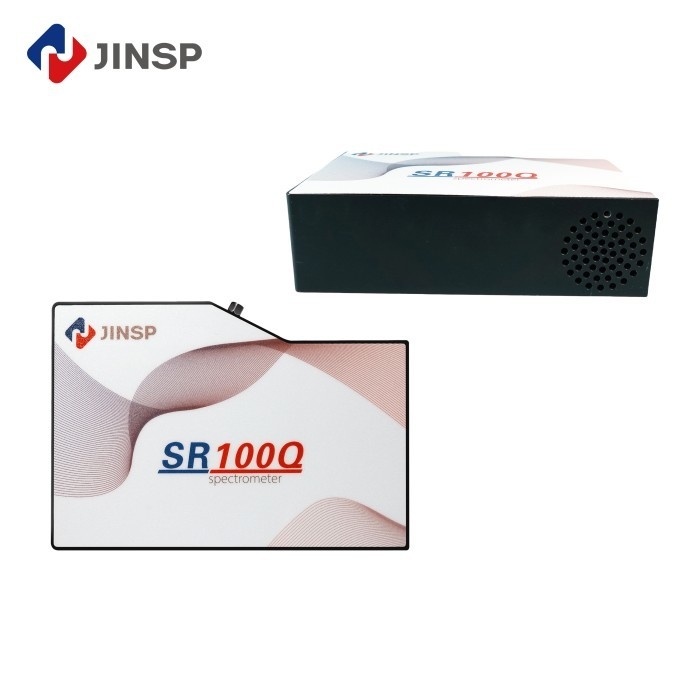

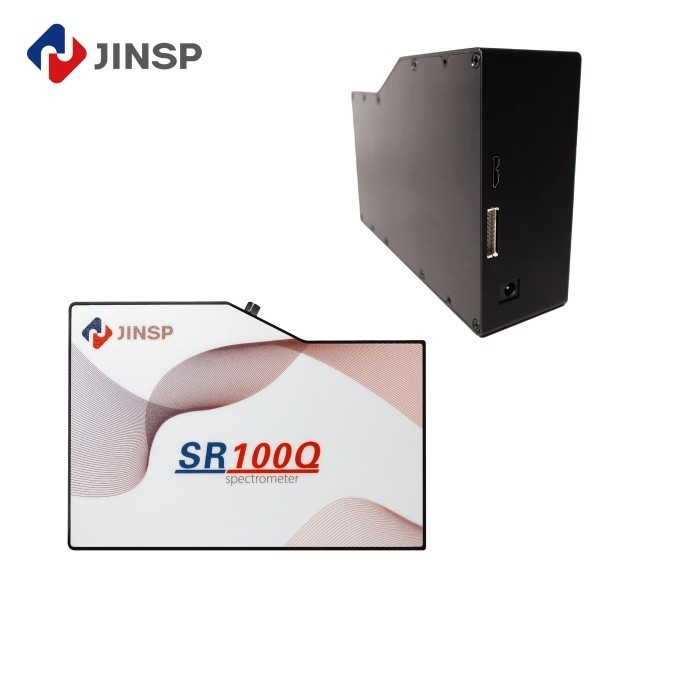

The JINSP SR100Q spectrometer integrates the Hamamatsu S7031 scientific-grade TE-cooled area array CCD chip. With 24×24μm pixel size and up to 92% quantum efficiency, it delivers exceptional ultraviolet band response, enhancing sensitivity and SNR for weak signals. Advanced optical design and FPGA signal processing ensure stable, reliable performance.
Technical Parameters
| Category |
Parameter |
Value |
| Detector |
Chip Type |
Back-illuminated TE-cooled Hamamatsu S7031 |
| Effective Pixel |
1024*122 |
| Pixel Size |
24*24μm |
| Sensing Area |
24.576*2.928mm |
| Optical Parameters |
Optical Design |
F/4 cross-type |
| Numerical Aperture |
0.13 |
| Focal Length |
100mm |
| Entrance Slit Width |
10μm,25μm,50μm,100μm,200μm (customizable) |
| Fiber Interface |
SMA905, free space |
| Electrical Parameters |
Integration Time |
8ms-3600s |
| Data Output Interface |
USB3.0, RS232, RS485, 20pin connector |
| ADC Bit Depth |
16-bit |
| Power Supply |
5V |
| Operating Current |
<3.5A |
| Physical Parameters |
Operating Temperature |
10℃~40℃ |
| Storage Temperature |
-20℃~60℃ |
| Operating Humidity |
<90%RH (no condensation) |
| Dimensions |
180mm*120mm*50mm |
| Weight |
1.2kg |
Product Models
| Model |
Spectral Range(nm) |
Resolution(nm) |
Slit(μm) |
| SR100Q-G21 |
200~950 |
6.8 |
200 |
| SR100Q-G22 |
350~1100 |
2.2 |
50 |
| SR100Q-G23 |
200~775 |
1.6 |
50 |
| SR100Q-G24 |
350~925 |
1.0 |
25 |
| SR100Q-G25 |
532~690(4400cm-1*) |
13cm-1 |
50 |
| SR100Q-G26 |
638~800(3200cm-1*) |
10cm-1 |
25 |
| SR100Q-G27 |
785~1050(3200cm-1*) |
11cm-1 |
50 |
Note: Models marked with * are primarily designed for Raman applications.
Key Technical Characteristics
- High quantum efficiency: 92% peak @650nm, 83% @232nm
- High SNR: Ultra-low dark noise under long integration time (1000:1 SNR)
- Noise-free processing of weak signals in long exposure with strong environmental adaptation
- Low-noise, high-speed circuit with USB3.0 interface
Measurement Methodology
The system employs a fiber-optic probe to illuminate the film, generating reflections at both the air-film and film-substrate interfaces. These beams interfere to form a spectrum analyzed by the spectrometer. Using the extremum method—factoring in θ, n, and spectral extrema—film thickness (d) is computed. Fringe density correlates with thickness, while wavelength inversely affects it. Careful spectral range and resolution adjustments ensure reliable results.
Typical Applications
- Absorption, transmittance and reflection spectrum analysis
- Light source and laser wavelength characterization
- OEM modules for fluorescence and Raman spectroscopy
About JINSP
JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technologies including Raman, FT-IR, and LIBS. With over 200 patent applications, our core technologies have reached international leading levels.
Headquartered in Beijing with a manufacturing facility in Jiangsu, China, JINSP holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. We provide additional certifications including CE, ECAC, and various security testing reports.
Frequently Asked Questions
Q1: Is this spectrometer easy to operate for first-time users?
A1: We provide English manuals and instructional videos, along with professional technical support from our engineers.
Q2: Do you offer operator training?
A2: Training is available at our facility or we can send engineers to your location for installation, training, and maintenance.
Q3: What is your website?
A3: Visit www.jinsptech.com for more information.
Q4: What quality assurance do you provide?
A4: All products undergo rigorous quality inspection before shipment, with documentation available upon request.
